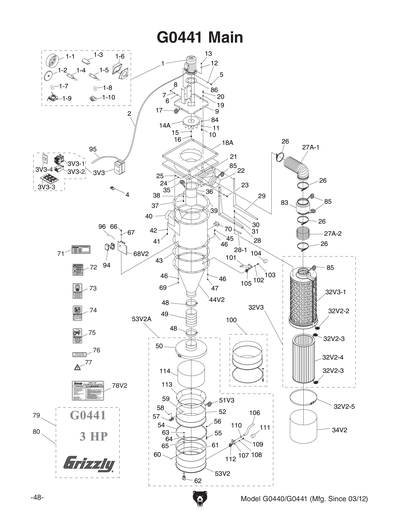

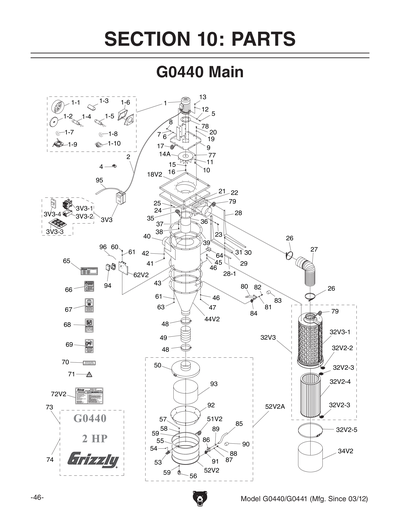

G0441 MAIN DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

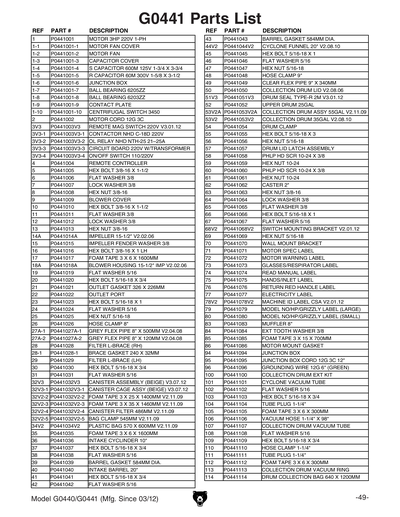

Ref # Part # Description Price Qty
1 P0441001 Motor 3hp 1ph 220v $342.00
1-1 P0441001-1 MOTOR FAN COVER $7.50
1-2 P0441001-2 MOTOR FAN $3.75
1-3 P0441001-3 CAPACITOR COVER $4.00
1-4 P0441001-4 S Capacitor 600m 125v 1-3/4 X 3-3/4 $13.50
1-5 P0441001-5 R Capacitor 50m 250v 1-5/8 X 3-1/2 $18.75
1-6 P0441001-6 JUNCTION BOX $6.50
2 P0441002 WIRE 12AWG X 3C $13.00
3A P0441003A REMOTE MAG SWITCH 220V V2.02.06 $119.49
4 P0441004 REMOTE CONTROLLER $12.00
9 P0441009 BLOWER COVER $103.25
10 PB16 HEX BOLT 3/8-16 X 1-1/2 $1.00
11 PW02 FLAT WASHER 3/8 $1.00
12 PLW04 LOCK WASHER 3/8 $1.00
13 PN08 HEX NUT 3/8-16 $1.25
14A P0441014A IMPELLER 15-1/2" V2.02.06 $103.25
15 P0441015 FENDER WASHER 3/8 $1.00
16 P0441016 Special Screw 3/8-16 X 1 Lh $1.00
17 P0440017 FOAM TAPE 3 X 6 X 1.8MM $2.00
18A P0441018A BLOWER FOR 15-1/2" V2.02.06 $496.50
19 PW07 FLAT WASHER 5/16 $1.25
20 PB07 HEX BOLT 5/16-18 X 3/4 $1.00
21 P0441021 OUTLET GASKET 326 X 226MM $3.00
22 P0441022 OUTLET PORT $121.25
23 PB03 HEX BOLT 5/16-18 X 1 $1.00
25 PN02 HEX NUT 5/16-18 $1.00
26 P0441026 HOSE CLAMP 8" $6.00
27A-1 P0441027A-1 GREY FLEX PIPE 8" X 500MM V2.04.08 $37.50
27A-2 P0441027A-2 GREY FLEX PIPE 8" X 120MM V2.04.08 $10.25
28 P0441028 Filter L-brace Right $35.00
28-1 P0441028-1 ***USE P0442030-1*** $1.00
29 P0441029 Filter L-brace Left $35.00
32 P0441032 CARTRIDGE FILTER 510MM $299.95
32-1 P0441032-1 FOAM TAPE 3 X 25MM X 1.6M $1.50
32-3 P0441032-3 Metal Handle Insert W/phlp Hd Scr M4 X 1 $7.00
33 P0441033 BAG CLAMP 510MM $6.00
34 P0441034 ***USE T20246*** $7.25
35 P0441017 ***USE P0440017*** $1.50
36 P0441036 INTAKE CYCLINDER 10" $70.75
39 P0440039 BARREL GASKET 584MM DIA. $9.75
40 P0441040 INTAKE BARREL 20" $279.00
44 P0441044 CYCLONE FUNNEL 20" $169.50
48 P0441048 HOSE CLAMP 9" $6.50
49 P0441049 Clear Flex Pipe 9" X 340mm $52.00
50 P0440050 COLLECTION DRUM LID V2.08.06 $63.00
51A P0440051A FOAM TAPE 10 X 50MM X 2M V2.10.05 $8.25
52 P0441052 Upper Drum 25gal $91.50
53 P0440052 Collection Drum 35gal $107.00
54 P0441054 DRUM CLAMP $24.75
55 PB04 HEX BOLT 5/16-18 X 3 $1.00
57 P0440053 DRUM LID LATCH $9.00
58 PS06 PHLP HD SCR 10-24 X 3/8 $1.00
59 PN07 HEX NUT 10-24 $1.00
62 P0440056 CASTER 2" $2.00
68 P0443061 SWITCH MOUNTING BRACKET $15.50
70 P0441070 WALL MOUNT BRACKET $12.25
71 P0441071 Motor Spec Label $1.00
72 P0441072 MOTOR WARNING LABEL $1.00
73 PLABEL-32 Dust Mask 2w X 3.3h $1.00
74 PLABEL-12 Read Manual 2w X 3.3h $1.00
75 P0442096 HANDS/INLET LABEL $1.00
76 P0442097 RETURN RED HANDLE LABEL $1.00
77 PLABEL-14 Electricity 1.4w X 1.2h $0.75
78 P0441078 Machine Id Label $2.25
79 P0441079 MODEL NO/HP/GRIZZLY LABEL LRG $4.00
80 P0441080 MODEL NO/HP/GRIZZLY LABEL SML $2.00
81 P0441081 POWER CORD 12AWG X 3C X 10' $15.00
83 P0441083 MUFFLER 8" $140.00
100 P0441100 COLLECTION DRUM EXT KIT $305.00
Ref # Part # Description Price Qty
