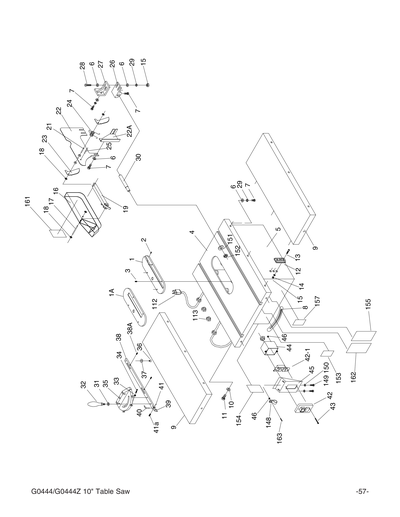

G0444Z MAIN DIAGRAM

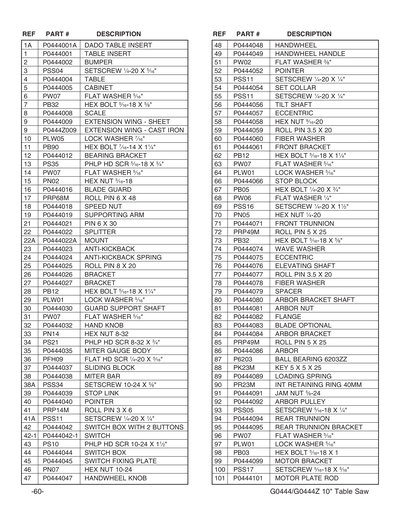

Ref # Part # Description Price Qty
1 P0444001 TABLE INSERT $18.00
1 P0444001 TABLE INSERT $18.00
1A P0444001A DADO TABLE INSERT $16.25
1A P0444001A DADO TABLE INSERT $16.25
2 P0444002 BUMPER $1.00
2 P0444002 BUMPER $1.00
3 PSS04 SET SCREW 1/4-20 X 5/16 $1.00
3 PSS04 SET SCREW 1/4-20 X 5/16 $1.00
4 P0444004 TABLE $284.25
4 P0444004 TABLE $284.25
5 P0444005 CABINET $52.25
5 P0444005 CABINET $52.25
6 PW07 FLAT WASHER 5/16 $1.00
6 PW07 FLAT WASHER 5/16 $1.00
7 PB32 HEX BOLT 5/16-18 X 5/8 $1.00
7 PB32 HEX BOLT 5/16-18 X 5/8 $1.00
8 P0444008 SCALE $2.25
8 P0444008 SCALE $2.25
9 P0444Z009 EXTENSION WING-CAST IRON $109.75
9 P0444Z009 EXTENSION WING-CAST IRON $109.75
10 PLW05 LOCK WASHER 7/16 $1.00
10 PLW05 LOCK WASHER 7/16 $1.00
11 PB90 HEX BOLT 7/16-14 X 1-1/4 $1.00
11 PB90 HEX BOLT 7/16-14 X 1-1/4 $1.00
12 P0444012 BEARING BRACKET $2.50
12 P0444012 BEARING BRACKET $2.50
13 PS35 PHLP HD SCR 5/16-18 X 3/4 $1.00
13 PS35 PHLP HD SCR 5/16-18 X 3/4 $1.00
14 PW07 FLAT WASHER 5/16 $1.00
14 PW07 FLAT WASHER 5/16 $1.00
15 PN02 HEX NUT 5/16"-18 $1.00
15 PN02 HEX NUT 5/16"-18 $1.00
16 P0444016 BLADE GUARD $15.25
16 P0444016 BLADE GUARD $15.25
17 P0444017 STEEL PIN $2.25
17 PRP68M ROLL PIN 6 X 48 $2.25
18 PLN03M LOCK NUT M6-1 $1.00
18 P0444018 DISC WASHER 1/4 $1.00
19 P0444019 SUPPORTING ARM $5.50
19 P0444019 SUPPORTING ARM $5.50
21 P0444021 ***USE PRP08M*** $0.50
22 P0444022 SPLITTER $9.00
22 P0444022 SPLITTER $9.00
22A P0444022A MOUNT $4.75
22A P0444022A MOUNT $4.75
23 P0444023 ANTI-KICKBACK $3.00
23 P0444023 ANTI-KICKBACK $3.00
24 P0444024 ANTI-KICKBACK SPRING C-SHAPE $1.00
24 P0444024 ANTI-KICKBACK SPRING C-SHAPE $1.00
25 P0444025 ***USE PRP65M*** $1.00
26 P0444026 BRACKET $9.00
26 P0444026 BRACKET $9.00
27 P0444027 BRACKET $10.75
27 P0444027 BRACKET $10.75
28 PB12 HEX BOLT 5/16-18 X 1-1/4 $1.00
28 PB12 HEX BOLT 5/16-18 X 1-1/4 $1.00
29 PLW01 LOCK WASHER 5/16 $1.00
29 PLW01 LOCK WASHER 5/16 $1.00
30 P0444030 GUARD SUPPORT SHAFT $7.25
30 P0444030 GUARD SUPPORT SHAFT $7.25
31 PW07 FLAT WASHER 5/16 $1.00
31 PW07 FLAT WASHER 5/16 $1.00
32 P0444032 HAND KNOB $10.50
32 P0444032 HAND KNOB $10.50
33 PN14 HEX NUT 8-32 $0.75
33 PN14 HEX NUT 8-32 $0.75
34 PS21 PHLP HD SCR 8-32 x 3/4 $1.00
34 PS21 PHLP HD SCR 8-32 x 3/4 $1.00
35 P0444035 MITER GAUGE BODY $22.50
35 P0444035 MITER GAUGE BODY $22.50
36 PFH09 FLAT HD SCR 1/4-20 X 5/16 $1.00
36 PFH09 FLAT HD SCR 1/4-20 X 5/16 $1.00
37 P0444037 SLIDING BLOCK $1.00
37 P0444037 SLIDING BLOCK $1.00
38 P0444038 MITER BAR $18.75
38 P0444038 MITER BAR $18.75
38A PSS34 SET SCREW 10-24 X 1/2 $1.00
38A PSS34 SET SCREW 10-24 X 1/2 $1.00
39 P0444039 STOP LINK $1.00
39 P0444039 STOP LINK $1.00
40 P0444040 POINTER $2.25
40 P0444040 POINTER $2.25
41 PRP14M ROLL PIN 3 X 6 $1.00
41 PRP14M ROLL PIN 3 X 6 $1.00
41A PSS11 SET SCREW 1/4-20 X 1/4 $1.00
41A PSS11 SET SCREW 1/4-20 X 1/4 $1.00
42 P0444042 SWITCH BOX WITH 2 BUTTONS $39.00
42 P0444042 SWITCH BOX WITH 2 BUTTONS $39.00
43 PS10 PHLP HD SCR 10-24 x 1 1/2 $1.00
43 PS10 PHLP HD SCR 10-24 x 1 1/2 $1.00
44 P0444044 SWITCH BOX $8.00
44 P0444044 SWITCH BOX $8.00
45 P0444045 SWITCH FIXING PLATE $5.75
45 P0444045 SWITCH FIXING PLATE $5.75
46 PN07 HEX NUT 10-24 $1.00
46 PN07 HEX NUT 10-24 $1.00
112 PWRCRD220L POWER CORD 12-GAUGE 3-WIRE 86"-LENGTH $24.00
112 PWRCRD220L POWER CORD 12-GAUGE 3-WIRE 86"-LENGTH $24.00
113 P0444113 NYLON CLAMP $1.25
113 P0444113 NYLON CLAMP $1.25
148 P0444148 SAFETY PADLOCK $1.25
148 P0444148 SAFETY PADLOCK $1.25
149 PB05 HEX BOLT 1/4-20 X 3/4 $1.00
149 PB05 HEX BOLT 1/4-20 X 3/4 $1.00
150 PW06 FLAT WASHER 1/4 $1.00
150 PW06 FLAT WASHER 1/4 $1.00
151 PW01 FLAT WASHER 1/2 $1.00
151 PW01 FLAT WASHER 1/2 $1.00
152 PN06 HEX NUT 1/2"-13 $1.00
152 PN06 HEX NUT 1/2"-13 $1.00
153 P0444153 ***USE PLABEL-11*** $1.50
154 P0444154 ***USE PLABEL-26*** $1.50
155 P0444155 WARNING LABEL $1.25
155 P0444155 WARNING LABEL $1.25
157 P0444157 ***USE PLABEL-12*** $1.50
161 P0444161 BLADE GUARD LABEL $3.50
161 P0444161 BLADE GUARD LABEL $3.50
162 P0444Z162 MACHINE ID LABEL (G0444Z) $3.50
162 P0444Z162 MACHINE ID LABEL (G0444Z) $3.50
Ref # Part # Description Price Qty
