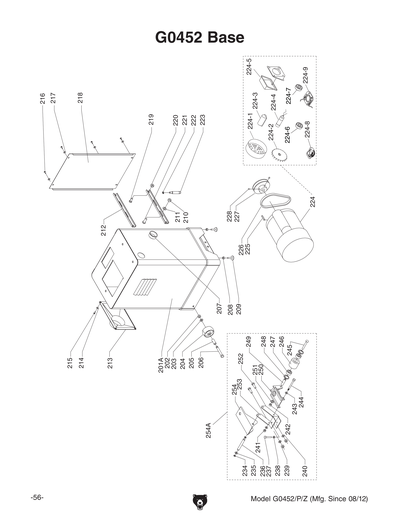

G0452 BASE DIAGRAM

While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.


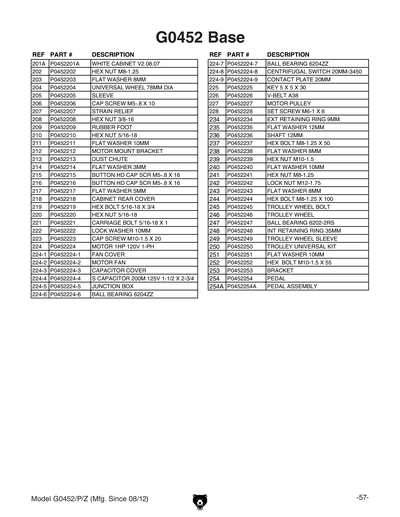

Ref #	Part #	Description	Price	Qty

201	P0452201	Cabinet Green V1.03.05	$176.25
202	PN03M	HEX NUT M8-1.25	$1.00
203	PW01M	FLAT WASHER 8MM	$1.00
204	P0452204	WHEEL	$4.75
205	P0452205	SLEEVE	$1.00
206	PSB66M	*use Pcap66m*	$1.00
207	P0452207	STRAIN RELIEF	$2.50
208	PN08	HEX NUT 3/8-16	$1.25
209	P0452209	ADJUSTING SCREW	$1.00
210	PN02	HEX NUT 5/16-18	$1.00
211	PW04M	FLAT WASHER 10MM	$1.00
212	P0452212	MOTOR BRACKET	$4.25
213	P0452213	DUST CHUTE	$8.50
214	PW07	FLAT WASHER 5/16	$1.25
215	PSBS16M	*use Pbhs16m*	$1.00
217	PW02M	FLAT WASHER 5MM	$1.00
218	P0452218	CABINET REAR COVER	$17.25
219	PB07	HEX BOLT 5/16-18 X 3/4	$1.00
221	PCB11	CARRIAGE BOLT 5/16-18 X 1	$1.00
222	PLW06M	LOCK WASHER 10MM	$1.00
224	P0452224	Motor Assy 1hp 1ph	$131.58
224-1	P0452224-1	FAN COVER	$8.25
224-2	P0452224-2	MOTOR FAN	$4.25
224-3	P0452224-3	CAPACITOR COVER	$3.00
224-4	P0452224-4	Start Capacitor 200m 125v	$8.25
224-5	P0452224-5	JUNCTION BOX	$3.00
225	PK12M	KEY 5 X 5 X 30	$1.00
226	PVA38	V-belt A38	$10.00
227	P0452227	MOTOR PULLEY	$5.00
228	PSS02M	SET SCREW M6-1 X 6	$1.00
229	P0452229	SWITCH BOX	$6.00
230	P0452230	*USE PSW06*	$2.00
231	PHTEK4M	TAP SCREW M4 X 8	$1.00
233	P0452233	SWITCH PLATE	$3.50
234	PR16M	EXT RETAINING RING 9MM	$1.00
235	PW06M	FLAT WASHER 12MM	$1.00
236	P0452236	SHAFT	$1.00
237	PB22M	HEX BOLT M8-1.25 X 50	$1.00
239	PN02M	HEX NUT M10-1.5	$1.00
244	PB45M	HEX BOLT M8-1.25 X 100	$1.00
245	P0452245	SPECIAL BOLT	$1.00
246	P0452246	TROLLEY WHEEL	$11.00
247	P6202	*SEE EXT DESCRIPTION*	$2.25
248	PR21M	INT RETAINING RING 35MM	$1.00
249	P0452249	SLEEVE	$1.75
250	P0452250	TROLLEY UNIVERSAL KIT	$21.75
252	PB144M	HEX BOLT M10-1.5 X 55	$1.50
253	P0452253	BRACKET	$5.75
254	P0452254	TREADLE	$8.25

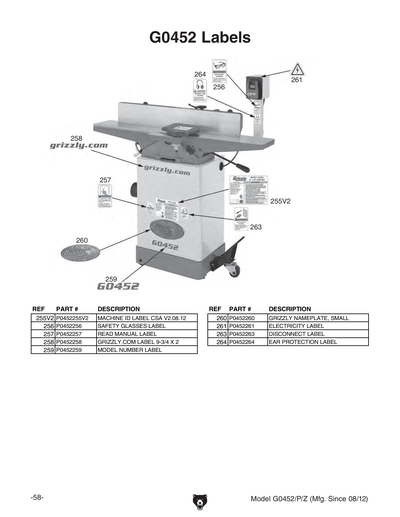

255	P0452255	MACHINE ID LABEL	$1.50
256	PLABEL-37	Respirator/glasses 2w X 3.3h	$1.00
257	PLABEL-12	Read Manual 2w X 3.3h	$1.00
258	P0452258	GRIZZLY.COM LABEL	$2.50
259	P0452259	Label G0452	$2.50
260	G8588	Name Plates - Small	$16.95
261	PLABEL-14	Electricity 1.4w X 1.2h	$0.75

Ref #	Part #	Description	Price	Qty
