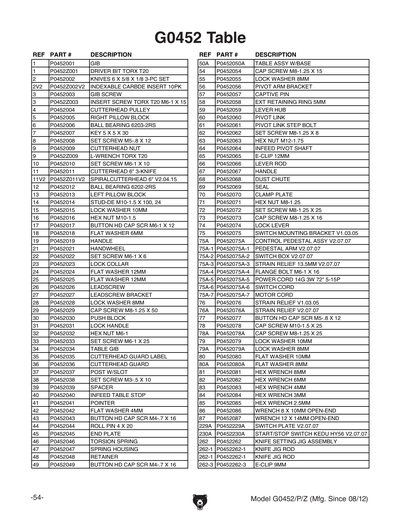

G0452P MAIN DIAGRAM


Ref #	Part #	Description	Price	Qty

50A	P0452P050A	INFEED AND OUTFEED TABLE ASSY W/BASE	$373.50
75A-1	P0452P075A-1	SWITCH ARM V2.07.07	$13.25
75A-2	P0452P075A-2	SWITCH BOX V2.07.07	$12.00

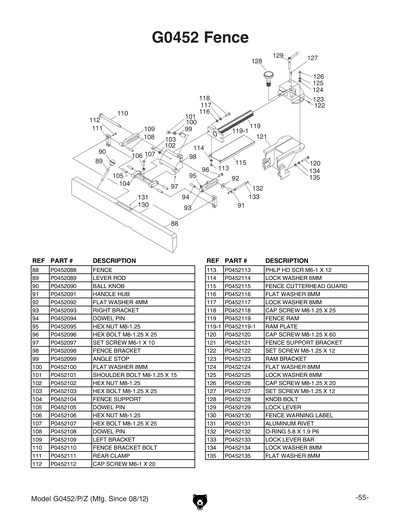

88	P0452P088	FENCE	$80.00
93	P0452P093	RIGHT BRACKET	$2.25
98	P0452P098	FENCE BRACKET	$4.25
104	P0452P104	SUPPORT	$4.50
109	P0452P109	LEFT BRACKET	$2.25
119	P0452P119	RAM	$18.75
121	P0452P121	CARRIAGE MOUNTING BRACKET	$25.00
123	P0452P123	FENCE CARRIAGE BRACKET	$18.75
201	P0452P201	COMPLETE CABINET ASSY	$161.75
218	P0452P218	CABINET REAR COVER	$15.50

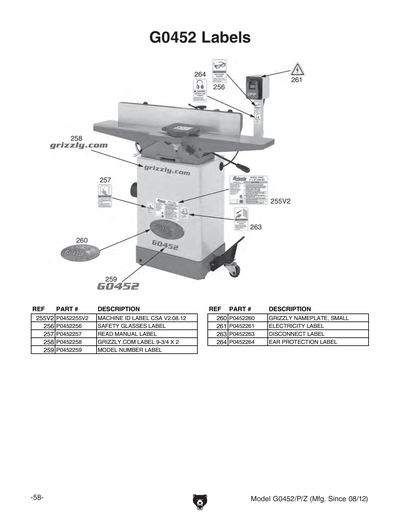

255	P0452P255	MACHINE ID LABEL	$22.00
258	P0452P258	GRIZZLY.COM LABEL PB WHITE	$2.25
259	P0452P259	MODEL NUMBER LABEL	$17.25
