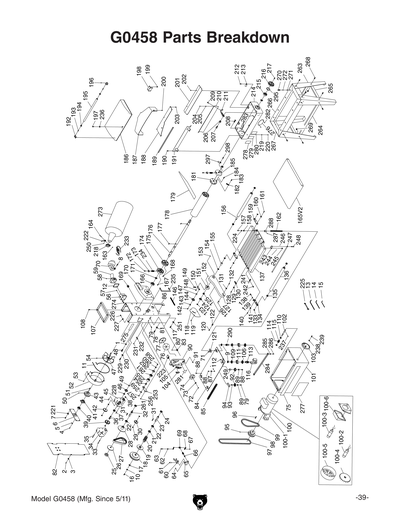

G0458 MAIN DIAGRAM

While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

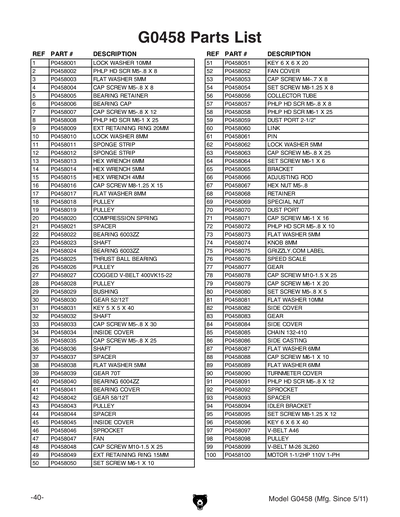

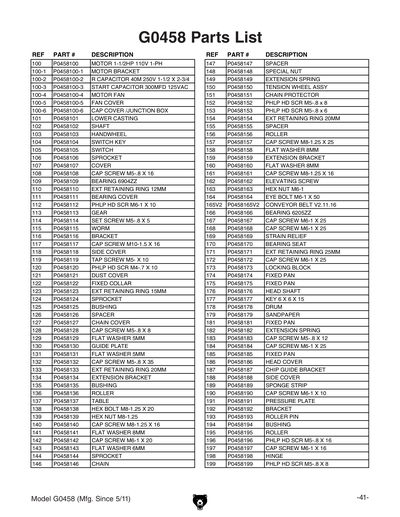

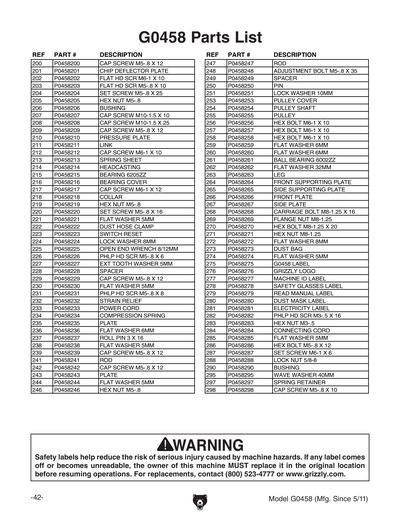

Ref #	Part #	Description	Price	Qty

1	PLW06M	LOCK WASHER 10MM	$1.00
5	P0458005	BEARING RETAINER	$1.00
6	P0458006	BEARING CAP	$5.75
9	PEC06M	E-CLIP 20MM	$1.00
10	PLW04M	LOCK WASHER 8MM	$1.00
11	P0458011	SPONGE STRIP	$1.00
12	P0458012	SPONGE STRIP	$1.00
13	PAW06M	Wrench Hex 6mm	$2.00
14	PAW05M	Wrench Hex 5mm	$1.00
15	PAW04M	Wrench Hex 4mm	$1.00
16	PSB100M	*use Pcap100m*	$1.00
18	P0458018	PULLEY	$23.50
19	P0458019	PULLEY	$9.75
20	P0458020	COMPRESSION SPRING	$1.00
21	P0458021	SPACER	$4.00
22	P6003	*SEE EXT DESCRIPTION*	$2.25
23	P0458023	SHAFT	$5.25
25	P0458025	THRUST BALL BEARING	$5.75
26	P0458026	PULLEY	$9.75
27	P0458027	COGGED V-BELT 400VK15-22	$35.75
28	P0458028	PULLEY	$13.75
29	P0458029	BUSHING	$1.00
30	P0458030	Gear 52t/12t	$11.75
31	PK02M	KEY 5 X 5 X 40	$1.00
32	P0458032	SHAFT	$9.00
33	PSB95M	*use Pcap95m*	$1.00
34	P0458034	INSIDE COVER	$6.50
35	PSB38M	*use Pcap38m*	$1.00
36	P0458036	SHAFT	$4.00
37	P0458037	SPACER	$1.00
39	P0458039	GEAR 70T	$7.25
40	P6004	*SEE EXT DESCRIPTION*	$2.75
41	P0458041	BEARING COVER	$2.50
42	P0458042	Gear 58t/12t	$7.75
43	P0458043	PULLEY	$15.50
44	P0458044	SPACER	$1.00
45	P0458045	INSIDE COVER	$9.75
46	P0458046	SPROCKET	$1.25
47	P0458047	FAN	$9.75
50	PSS01M	SET SCREW M6-1 X 10	$1.25
51	PK07M	Key 6 X 6 X 20	$1.00
52	P0458052	FAN COVER	$7.25
53	PSB18M	*use Pcap18m*	$1.00
54	PSS20M	SET SCREW M8-1.25 X 8	$1.00
56	P0458056	COLLECTOR TUBE	$2.00
58	PS47M	PHLP HD SCR M6-1 X 25	$1.00
59	P0458059	COLLECTOR TUBE	$3.25
60	P0458060	LINK	$9.00
61	P0458061	PIN	$1.25
62	PLW01M	LOCK WASHER 5MM	$1.00
65	P0458065	BRACKET	$5.25
66	P0458066	ADJUSTING ROD	$4.00
68	P0458068	RETAINER	$1.25
69	P0458069	SPECIAL NUT	$1.00
70	P0458070	DUST PORT	$4.00
72	PS09M	PHLP HD SCR M5-.8 X 10	$1.00
74	P0458074	KNOB 8MM	$2.00
75	P0458075	GRIZZLY.COM LABEL	$1.25
76	P0458076	SPEED SCALE	$1.25
77	P0458077	GEAR	$9.00
81	PW04M	FLAT WASHER 10MM	$1.00
82	P0458082	SIDE COVER	$28.50
83	P0458083	GEAR 20T	$3.25
84	P0458084	SIDE COVER	$30.50
85	P0458085	CHAIN 132-410	$13.00
86	P0458086	SIDE CASTING	$151.25
90	P0458090	TURNMETER COVER	$2.50
91	PS08M	PHLP HD SCR M5-.8 X 12	$1.00
92	P0458092	SPROCKET	$2.00
93	P0458093	SPACER	$2.00
94	P0458094	IDLER BRACKET	$5.25
95	PSS14M	SET SCREW M8-1.25 X 12	$1.00
96	PK11M	KEY 6 X 6 X 40	$1.00
97	PVA46	V-belt A46	$11.25
98	P0458098	PULLEY	$15.50
99	PVM26	V-belt M26 3l260	$6.75
100	P0458100	MOTOR 1-1/2HP 115V	$200.30
100-1	P0458100-1	MOTOR BRACKET	$37.50
100-2	P0458100-2	R Capacitor 25m 250v	$30.00
100-3	PC300S	S Capacitor 300m 125v 1-5/16 X 2-3/8	$12.00
100-4	P0458100-4	MOTOR FAN	$2.50
100-5	P0458100-5	FAN COVER	$11.75
100-6	P0458100-6	Cap Cover W/junction Box	$9.75
101	P0458101	Casting Lower	$172.00
102	P0458102	SHAFT	$1.25
103	P0458103	HANDWHEEL	$13.75
104	P0458104	SWITCH KEY	$1.00
105	P0458105	*USE H8988*	$5.75
106	P0458106	SPROCKET	$3.25
107	P0458107	COVER	$4.50
108	PB95M	HEX BOLT M5-.8 X 16	$1.00
109	P6103043	BEARING 6904ZZ	$5.25
110	PR03M	EXT RETAINING RING 12MM	$1.00
111	P0458111	BEARING COVER	$3.25
112	PS68M	PHLP HD SCR M6-1 X 10	$1.50
113	P0458113	GEAR	$17.50
114	PSS07M	SET SCREW M5-.8 X 5	$1.00
115	P0458115	WORM	$8.50
116	P0458116	BRACKET	$5.25
117	PSB130M	*use Pcap130m*	$1.00
118	P0458118	SIDE COVER	$3.25
119	PHTEK26M	discdtap Screw M5- X 10	$1.25
120	PS38M	PHLP HD SCR M4-.7 X 10	$1.00
121	P0458121	DUST COVER	$1.25
122	P0458122	FIXED COLLAR	$1.25
123	PR05M	EXT RETAINING RING 15MM	$1.00
124	P0458124	SPROCKET	$2.00
125	P0458125	BUSHING	$3.25
126	P0458126	SPACER	$1.25
127	P0458127	CHAIN COVER	$4.50
128	PSB03M	*use Pcap03m*	$1.00
129	PW02M	FLAT WASHER 5MM	$1.00
130	P0458130	GUIDE PLATE	$2.00
132	PSB79M	*use Pcap79m*	$1.00
133	PR09M	EXT RETAINING RING 20MM	$1.00
134	P0458134	EXTENSION BRACKET	$2.50
135	P0458135	BUSHING	$2.50
136	P0458136	ROLLER	$30.00
137	P0458137	TABLE	$131.25
138	PB09M	HEX BOLT M8-1.25 X 20	$1.00
139	PN03M	HEX NUT M8-1.25	$1.00
140	PSB11M	*use Pcap11m*	$1.00
141	PW01M	FLAT WASHER 8MM	$1.00
142	PSB02M	*use Pcap02m*	$1.00
143	PW03M	FLAT WASHER 6MM	$1.00
144	P0458144	SPROCKET	$2.00
146	P0458146	CHAIN	$5.75
147	P0458147	SPACER	$1.25
148	P0458148	SPECIAL NUT	$1.00
149	P0458149	EXTENSION SPRING	$1.00
150	P0458150	TENSION WHEEL ASSY	$1.25
151	P0458151	CHAIN PROTECTOR	$3.25
152	PS05M	Phlp Hd Scr M5-.8 X 8	$1.00
153	PS19M	Phlp Hd Scr M5-.8 X 6	$1.00
155	P0458155	SPACER	$1.25
156	P0458156	ROLLER	$28.50
157	PSB31M	*use Pcap31m*	$1.00
159	P0458159	EXTENSION BRACKET	$2.00
162	P0458162	ELEVATING SCREW	$7.75
163	PN01M	HEX NUT M6-1	$1.00
164	P0458164	EYE BOLT M6-1 X 50	$1.00
165	P0458165	CONVEYOR BELT	$37.75
166	P0502058	*USE P6205*	$12.50
167	PSB06M	*USE PCAP06M*	$1.00
169	P0458169	STRAIN RELIEF	$4.50
170	P0458170	BEARING SEAT	$46.75
171	PR11M	EXT RETAINING RING 25MM	$1.00
173	P0458173	LOCKING BLOCK	$1.25
174	P0458174	FIXED PAN	$17.00
175	P0458175	FIXED PAN	$16.25
176	P0458176	HEAD SHAFT	$66.25
177	PK99M	KEY 6 X 6 X 15	$1.00
178	P0458178	DRUM	$123.75
179	P0458179	SANDPAPER	$17.50
181	P0458181	FIXED PAN	$16.25
182	P0458182	EXTENSION SPRING	$1.00
183	PSB33M	*use Pcap33m*	$1.00
185	P0458185	FIXED PAN	$17.00
186	P0458186	HEAD COVER	$81.25
187	P0458187	CHIP GUIDE BRACKET	$9.75
188	P0458188	SIDE COVER	$15.50
189	P0458189	SPONGE STRIP	$1.00
190	PSB04M	*use Pcap04m*	$1.00
191	P0458191	PRESSURE PLATE	$8.50
192	P0458192	BRACKET	$1.25
193	P0458193	ROLLER PIN	$1.00
194	P0458194	BUSHING	$1.00
195	P0458195	ROLLER	$2.50
196	PS40M	PHLP HD SCR M5-.8 X 16	$1.00
197	PSB01M	*use Pcap01m*	$1.00
198	P0458198	HINGE	$1.00
201	P0458201	CHIP DEFLECTOR PLATE	$11.00
202	PFH43M	FLAT HD SCR M6-1 X 10	$1.00
203	PFH07M	FLAT HD SCR M5-.8 X 10	$1.00
204	PSS24M	SET SCREW M5-.8 X 25	$1.00
205	PN06M	HEX NUT M5-.8	$1.00
206	P0458206	BUSHING	$2.50
207	PSB142M	*use Pcap142m*	$4.00
208	PSB64M	*use Pcap64m*	$1.00
210	P0458210	PRESSURE PLATE	$11.75
211	P0458211	LINK	$3.25
213	P0458213	SPRING SHEET	$1.25
214	P0458214	Head Casting	$87.75
216	P0458216	BEARING COVER	$20.75
217	PSB26M	*use Pcap26m*	$1.00
218	P0458218	COLLAR	$4.00
220	PSS34M	SET SCREW M5-.8 X 16	$1.00
222	P0458222	DUST HOSE CLAMP	$4.00
223	P0458223	SWITCH RESET	$5.25
225	P0458225	Wrench 8/12mm Open End	$1.25
227	PTLW02M	EXT TOOTH WASHER 5MM	$1.00
228	P0458228	SPACER	$1.00
232	P0458232	STRAIN RELIEF	$1.00
233	P0458233	POWER CORD	$2.50
234	P0458234	COMPRESSION SPRING	$1.00
235	P0458235	PLATE	$5.25
237	PRP02M	ROLL PIN 3 X 16	$1.00
241	P0458241	ROD	$7.25
243	P0458243	PLATE	$5.25
247	P0458247	ROD	$7.25
248	P0458248	ADJUSTMENT BOLT M5-.8 X 35	$1.00
249	P0458249	SPACER	$1.25
250	P0458250	PIN	$1.00
253	P0458253	PULLEY COVER	$3.25
254	P0458254	PULLEY SHAFT	$2.00
255	P0458255	PULLEY	$4.00
256	PB04M	HEX BOLT M6-1 X 10	$1.00
261	P0458261	*USE P6002*	$4.00
262	PW21M	FLAT WASHER 32MM	$6.00
263	P0458263	LEG	$27.25
264	P0458264	Supporting Plate Front	$10.50
265	P0458265	SIDE SUPPORTING PLATE	$5.75
266	P0458266	Plate Front	$15.50
267	P0458267	SIDE PLATE	$7.25
268	PCB06M	CARRIAGE BOLT M8-1.25 X 16	$1.00
269	PFN01M	FLANGE NUT M8-1.25	$0.75
273	P0458273	DUST BAG	$13.75
275	P0458275	Label G0458	$1.00
276	P0458276	GRIZZLY LOGO	$3.25
277	P0458277	MACHINE ID LABEL	$2.00
278	PLABEL-11	Safety Glasses 2w X 3.3h	$1.00
279	PLABEL-12	Read Manual 2w X 3.3h	$1.00
280	PLABEL-32	Dust Mask 2w X 3.3h	$1.00
281	PLABEL-14	Electricity 1.4w X 1.2h	$0.75
282	PS98M	PHLP HD SCR M3-.5 X 16	$1.00
283	PN07M	HEX NUT M3-.5	$1.00
284	P0458284	CONNECTING CORD	$11.00
286	PB112M	*USE PB107M*	$0.75
287	PSS02M	SET SCREW M6-1 X 6	$1.00
288	P0458288	LOCK NUT 5/8-8	$1.00
290	P0458290	BUSHING	$3.25
295	P0458295	WAVE WASHER 40MM	$1.00

Ref #	Part #	Description	Price	Qty
