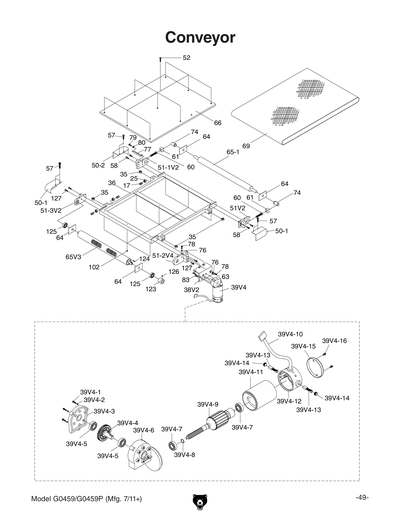

G0459 CONVEYOR DIAGRAM
While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

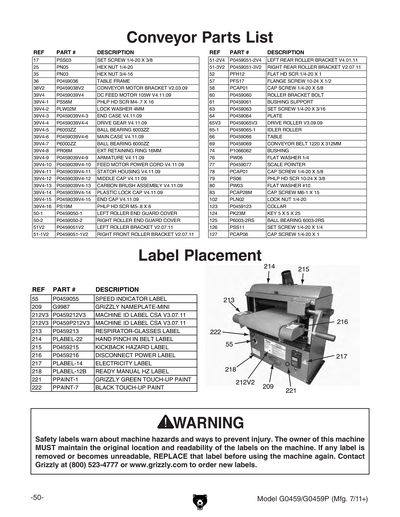

Ref #
Part #
Description
Price
Qty
4
P0459004
SIDE PANEL
$23.50
5
P0459005
HANDLE
$4.50
6
P0459006
SPROCKET
$13.00
17
PSS03
SET SCREW 1/4-20 X 3/8
$1.00
35
PN03
HEX NUT 3/4-16
$1.00
36
P0459036
TABLE FRAME
$46.75
38V2
P0459038V2
CONVEYOR MOTOR COVER V2.03.09
$10.00
39V3A
P0459039V3A
DC FEED MOTOR 105W V3.09.09
$144.00
39V3A-1
PS56M
PHLP HD SCR M4-.7 X 16
$1.00
39V3A-12
PLW01M
LOCK WASHER 5MM
$1.00
39V3A-2
PLW02M
LOCK WASHER 4MM
$1.00
39V3A-4
P0459039V3A-4
DRIVE GEAR KEYED V3.09.09
$24.00
39V3A-8
P60002RS
BALL BEARING 6000-2RS
$4.00
39V4
P0459039V4
DC FEED MOTOR 105W V4.11.09
$204.00
39V4-10
P0459039V4-10
FEED MOTOR POWER CORD 2P 600MML V4.11.09
$4.25
39V4-11
P0459039V4-11
STATOR HOUSING V4.11.09
$25.50
39V4-12
P0459039V4-12
MIDDLE CAP V4.11.09
$13.25
39V4-14
P0459039V4-14
Lock Screw Plastic V4.11.09
$1.00
39V4-15
P0459039V4-15
END CAP V4.11.09
$4.25
39V4-16
PS19M
Phlp Hd Scr M5-.8 X 6
$1.00
39V4-3
P0459039V4-3
END CASE V4.11.09
$6.50
39V4-4
P0459039V4-4
DRIVE GEAR V4.11.09
$22.50
39V4-5
P6003ZZ
***USE G3850***
$2.25
39V4-6
P0459039V4-6
MAIN CASE V4.11.09
$15.50
39V4-7
P6000ZZ
BALL BEARING 6000ZZ
$3.00
39V4-8
PR06M
EXT RETAINING RING 16MM
$1.00
39V4-9
P0459039V4-9
ARMATURE V4.11.09
$85.50
40
PW07
FLAT WASHER 5/16
$1.25
44
PN05
HEX NUT 1/4-20
$1.25
46V2
P0459046V2
PC BOARD CONSOLE UNIT V2.03.09
$54.00
50-1
P0459050-1
Roller End Guard Cover Left
$15.50
50-2
P0459050-2
Roller End Guard Cover Right
$15.50
51
P0459051
Roller Bracket Left
$8.50
51-1
P0459051-1
Roller Bracket Right
$8.50
51-2V2
P0459051-2V2
Roller Bracket Rear Left V2.03.09
$7.50
51-2V3
P0459051-2V3
LEFT REAR ROLLER BRACKET V3.09.09
$7.50
51-3
P0459051-3
RIGHT REAR ROLLER BRACKET
$7.50
52
PFH12
FLAT HD SCR 1/4-20 X 1
$1.00
54
P0459054
VARIABLE SPEED CONTROL KNOB
$2.50
57
P0459057
FLANGE SCREW 3/16-24 X 3/8
$1.00
57-1
PN07
HEX NUT 10-24
$1.00
57-2
PS06
PHLP HD SCR 10-24 X 3/8
$1.00
57-3
PW03
FLAT WASHER #10
$1.00
60
P0459060
SPECIAL BOLT 1/2-13UNC
$5.75
61
P0459061
BUSHING SUPPORT
$8.50
62
PN06
HEX NUT 1/2-13
$1.00
64
P0459064
PLATE 82 X 60 X 1.2T
$7.75
65-1
P0459065-1
IDLER ROLLER
$18.25
65V2
P0459065V2
DRIVE ROLLER V2.03.09
$24.00
65V3
P0459065V3
DRIVE ROLLER V3.09.09
$36.00
66
P0459066
TABLE
$13.75
69
P0459069
CONVEYOR BELT 1220 X 312MM
$95.75
70
P0459070
PRESSURE ROLLER
$13.75
76
PW06
Flat Washer 1/4 In
$1.25
77
P0459077
SCALE POINTER
$1.00
78
PCAP01
CAP SCREW 1/4-20 X 5/8
$1.00
83
PCAP28M
CAP SCREW M6-1 X 15
$1.00
102
PLN02
LOCK NUT 1/4-20
$1.00
123
P0459123
COLLAR
$3.75
124
PK23M
KEY 5 X 5 X 25
$3.00
125
P6003-2RS
Ball Bearing 6003 2rs
$2.25
126
PSS11
SET SCREW 1/4-20 X 1/4
$1.00
127
PCAP06
CAP SCREW 1/4-20 X 1
$1.00
217
PLABEL-14
Electricity 1.4w X 1.2h
$0.75
