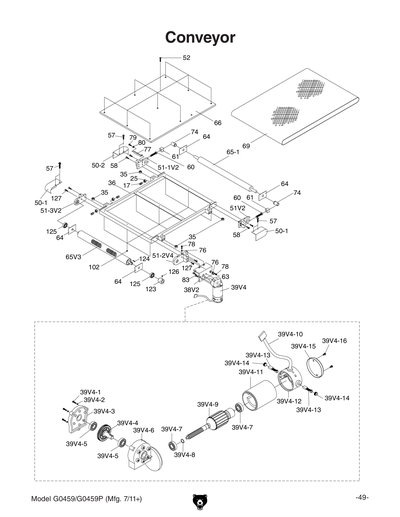

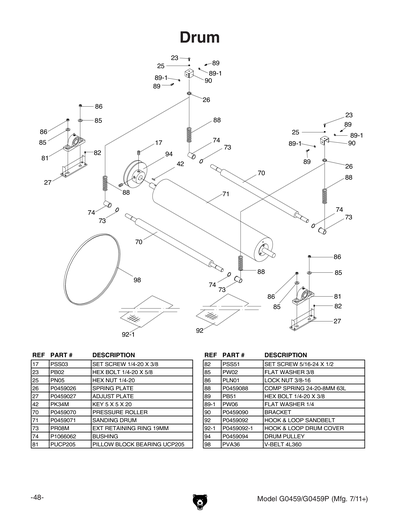

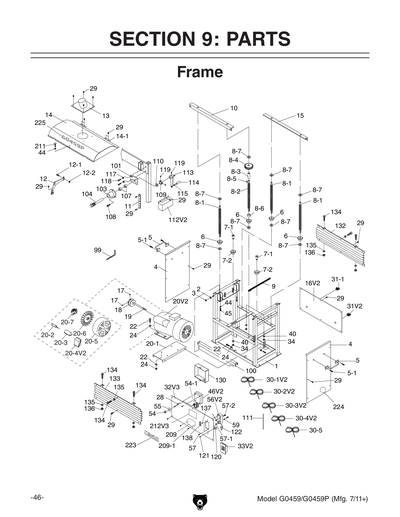

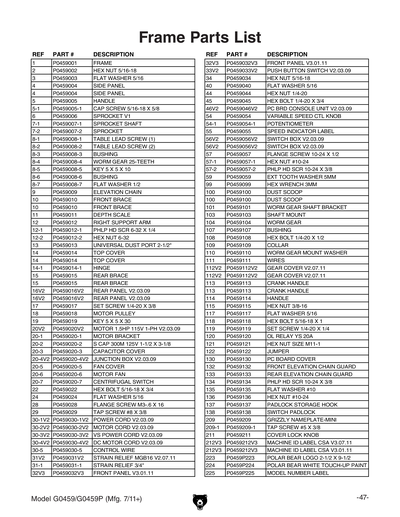

G0459 CONVEYOR DIAGRAM


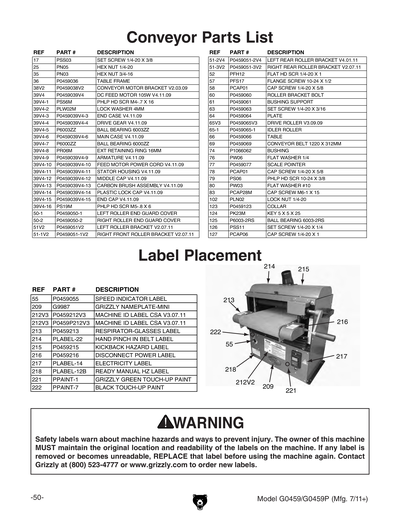

Ref # Part # Description Price Qty
17 PSS03 SET SCREW 1/4-20 X 3/8 $1.00
25 PN05 HEX NUT 1/4-20 $1.00
35 PN03 HEX NUT 3/4-16 $1.00
36 P0459036 TABLE FRAME $53.75
38V2 P0459038V2 CONVEYOR MOTOR COVER V2.03.09 $11.50
39V3A-1 PS56M PHLP HD SCR M4-.7 X 16 $1.00
39V3A-10 P608-2RS BALL BEARING 608 2RS $9.50
39V3A-12 PLW01M LOCK WASHER 5MM $1.00
39V3A-2 PLW02M LOCK WASHER 4MM $1.00
39V3A-4 P0459039V3A-4 DRIVE GEAR KEYED V3.09.09 $27.50
39V3A-8 P60002RS BALL BEARING 6000-2RS $2.50
39V4 P0459039V4 DC FEED MOTOR 105W V4.11.09 $244.50
39V4-10 P0459039V4-10 FEED MOTOR POWER CORD 2P 600MML V4.11.09 $5.00
39V4-11 P0459039V4-11 STATOR HOUSING V4.11.09 $29.25
39V4-12 P0459039V4-12 MIDDLE CAP V4.11.09 $15.25
39V4-13 P0459039V4-13 CARBON BRUSH ASSEMBLY V4.11.09 $3.00
39V4-14 P0459039V4-14 PLASTIC LOCK CAP V4.11.09 $1.00
39V4-15 P0459039V4-15 END CAP V4.11.09 $5.00
39V4-16 PS19M PHLP HD SCR M5-.8 X 6 $1.00
39V4-3 P0459039V4-3 END CASE V4.11.09 $7.50
39V4-4 P0459039V4-4 DRIVE GEAR V4.11.09 $25.75
39V4-6 P0459039V4-6 MAIN CASE V4.11.09 $17.75
39V4-7 P6000ZZ BALL BEARING 6000ZZ $9.50
39V4-8 PR06M EXT RETAINING RING 16MM $1.00
39V4-9 P0459039V4-9 ARMATURE V4.11.09 $98.25
50-1 P0459050-1 ROLLER END GUARD COVER LEFT $17.75
50-2 P0459050-2 ROLLER END GUARD COVER RIGHT $17.75
52 PFH12 FLAT HD SCR 1/4-20 X 1 $1.00
57 PFS17 FLANGE SCREW 10-24 X 1/2 $2.50
58 PCAP01 CAP SCREW 1/4-20 X 5/8 $1.00
60 P0459060 ROLLER BRACKET BOLT 1/2-13 $6.50
61 P0459061 BUSHING SUPPORT $9.75
63 P0459063 SET SCREW 1/4-20 X 3/16 $5.25
64 P0459064 PLATE 82 X 60 X 1.2T $9.00
65-1 P0459065-1 IDLER ROLLER $21.00
65V3 P0459065V3 DRIVE ROLLER V3.09.09 $41.50
66 P0459066 TABLE $15.75
69 P0459069 CONVEYOR BELT 1220 X 312MM $110.00
74 P1066062 BUSHING $3.50
76 PW06 FLAT WASHER 1/4 $1.25
77 P0459077 SCALE POINTER $1.00
79 PS06 PHLP HD SCR 10-24 X 3/8 $1.00
80 PW03 FLAT WASHER #10 $1.00
83 PCAP28M CAP SCREW M6-1 X 15 $1.00
102 PLN02 LOCK NUT 1/4-20 $1.00
123 P0459123 COLLAR $4.25
124 PK23M KEY 5 X 5 X 25 $3.50
125 P6003-2RS BALL BEARING 6003 2RS $9.50
126 PSS11 SET SCREW 1/4-20 X 1/4 $1.00
127 PCAP06 CAP SCREW 1/4-20 X 1 $1.00
Ref # Part # Description Price Qty
