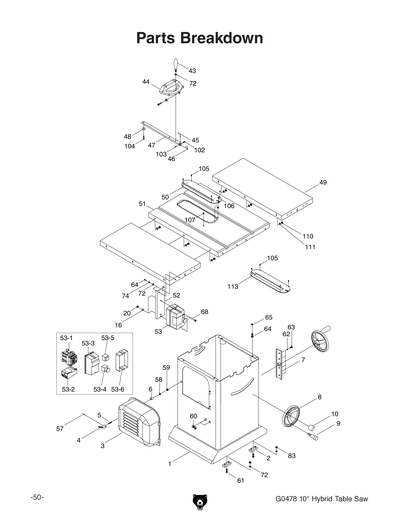

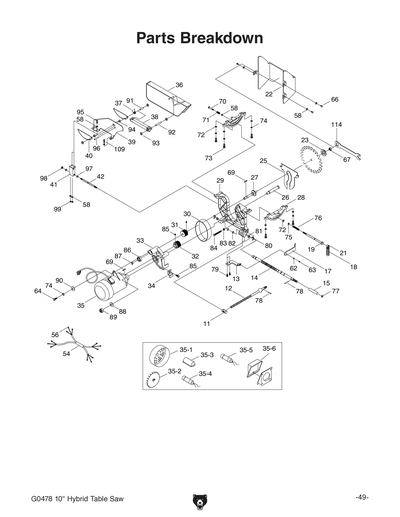

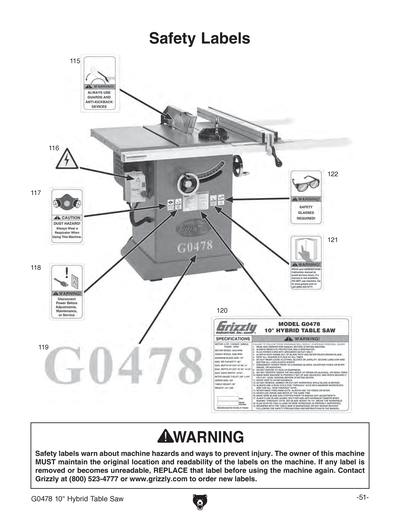

G0478 CABINET DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

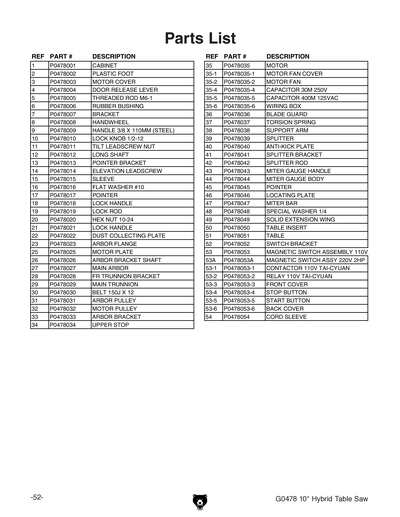

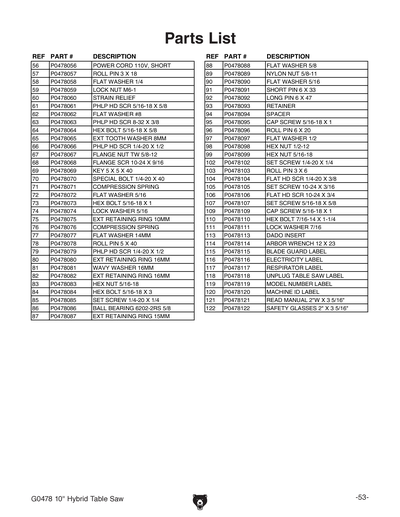

Ref # Part # Description Price Qty
1 P0478001 CABINET $269.25
2 P0478002 Foot Plastic $1.50
3 P0478003 MOTOR COVER $19.75
4 P0478004 DOOR RELEASE LEVER $1.00
5 P0478005 THREADED ROD M6-1 $2.75
6 P0478006 RUBBER BUSHING $1.00
7 P0478007 BRACKET $3.75
8 P0478008 HANDWHEEL $24.75
9 P0478009 Handle 3/8 X 110mm Steel $8.00
10 P0478010 LOCK KNOB 1/2-12 $5.00
16 PW03 FLAT WASHER #10 $1.00
20 PN07 HEX NUT 10-24 $1.00
43 P0478043 MITER GAUGE HANDLE $16.75
44 P0478044 MITER GAUGE BODY $30.50
45 P0478045 POINTER $1.00
46 P0478046 LOCATING PLATE $1.25
47 P0478047 MITER BAR $21.50
48 P0478048 SPECIAL WASHER 1/4" $1.50
49 P0478049 SOLID EXTENSION WING $111.00
50 P0478050 TABLE INSERT $14.50
51 P0478051 TABLE $341.25
52 P0478052 SWITCH BRACKET $9.00
53 P0478053 Mag Switch Assy 110v $96.75
53-1 P0478053-1 CONTACTOR 110V TAI-CYUAN $38.25
53-2 P0478053-2 RELAY 110V TAI-CYUAN $47.00
53-3 P0478053-3 Cover Front $18.00
53-4 P0478053-4 STOP BUTTON $11.50
53-5 P0478053-5 START BUTTON $1.25
53-6 P0478053-6 BACK COVER $11.25
53A P0478053A ***USE G4572*** $116.50
57 PRP64M ROLL PIN 3 X 18 $1.00
58 PW06 Flat Washer 1/4 In $1.25
59 PLN03M LOCK NUT M6-1 $1.00
60 P0478060 STRAIN RELIEF $2.50
61 PS79 PHLP HD SCR 5/16-18 X 5/8 $1.00
62 PW08 FLAT WASHER #8 $1.00
63 PS24 Phlp Hd Scr 8-32 X 3/8 $1.00
64 PB32 HEX BOLT 5/16-18 X 5/8 $1.00
65 PTLW07M EXT TOOTH WASHER 8MM $1.00
68 PFS13M FLANGE SCREW 10-24 X 5/8 $1.00
72 PW07 FLAT WASHER 5/16 $1.25
74 PLW01 LOCK WASHER 5/16 $1.00
83 PN02 HEX NUT 5/16-18 $1.00
102 PSS11 SET SCREW 1/4-20 X 1/4 $1.00
103 PRP14M ROLL PIN 3 X 6 $1.00
104 PFH19 FLAT HD SCR 1/4-20 X 3/8 $1.00
105 PSS46 SET SCREW 10-24 X 3/16 $1.00
106 PFH21 FLAT HD SCR 10-24 X 3/4 $1.00
107 PSS38 SET SCREW 5/16-18 X 5/8 $1.00
110 PB90 HEX BOLT 7/16-14 X 1-1/4 $1.00
111 PLW05 LOCK WASHER 7/16 $1.00
113 P0478113 DADO INSERT $15.25
