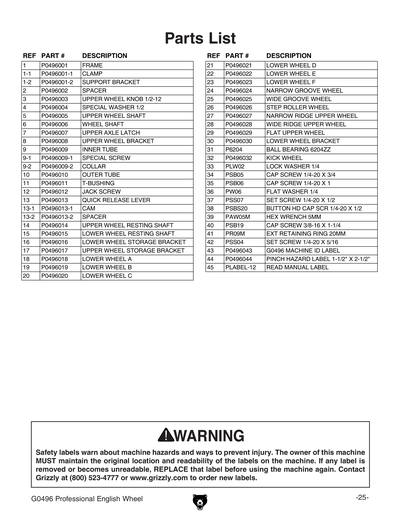

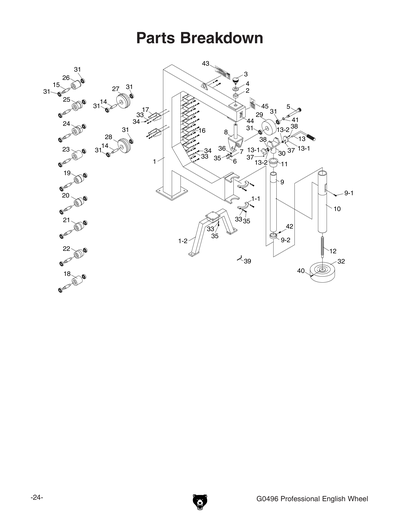

Parts for G0496 Professional English Wheel

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
FRAME
Item is no longer available
Price
N/A
1-1
CLAMP
Item is no longer available
Price
N/A
1-2
SUPPORT BRACKET
Item is no longer available
Price
N/A
2
SPACER
3
WHEEL KNOB UPPER 1/2-12
4
FLAT WASHER 5/8"
5
WHEEL SHAFT UPPER
6
WHEEL SHAFT
7
UPPER AXLE LATCH
8
WHEEL BRACKET UPPER
9
INNER TUBE
9-1
OUTER TUBE SCREW
9-2
COLLAR
10
OUTER TUBE
11
T-BUSHING
12
JACK SCREW
13
QUICK RELEASE LEVER
13-1
CAM
13-2
SPACER
14
WHEEL RESTING UPPER SHAFT
15
WHEEL RESTING SHAFT LOWER
16
WHEEL STORAGE BRACKET LOWER
17
WHEEL STORAGE BRACKET UPPER
Item is no longer available
Price
N/A
18
WHEEL LOWER A
Item is no longer available
Price
N/A
19
WHEEL LOWER B
Item is no longer available
Price
N/A
20
WHEEL LOWER C
Item is no longer available
Price
N/A
21
WHEEL LOWER D
22
WHEEL LOWER E
23
WHEEL LOWER F
24
NARROW GROOVE WHEEL
Item is no longer available
Price
N/A
25
WIDE GROOVE WHEEL
Item is no longer available
Price
N/A
26
STEP ROLLER WHEEL
Item is no longer available
Price
N/A
27
NARROW RIDGE UPPER WHEEL
28
WIDE RIDGE UPPER WHEEL
29
FLAT UPPER WHEEL
30
BRACKET LOWER WHEEL
31
BALL BEARING 6204ZZ
Price
N/A
32
KICK WHEEL
33
Now: PLW02
LOCK WASHER 1/4
Price
N/A
34
CAP SCREW 1/4-20 X 3/4
Price
N/A
35
CAP SCREW 1/4-20 X 1
Price
N/A
36
Now: PW06
FLAT WASHER 1/4
Price
N/A
37
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
38
BUTTON HD CAP SCR 1/4-20 X 1/2
Price
N/A
39
HEX WRENCH 5MM
Price
N/A
40
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
41
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
42
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
43
MACHINE ID LABEL
Item is no longer available
Price
N/A
44
PINCH HAZARD LABEL
Item is no longer available
Price
N/A
45
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
MAN
MANUAL FOR G0496 06/06
Item is no longer available
Price
N/A
