Enter the quantity next to the part you are ordering and press the "Add To Cart" button. If you cannot locate your part below, click on the appropriate diagram at the top of the page or contact our tech support department at techsupport@grizzly.com or 570-546-9663.

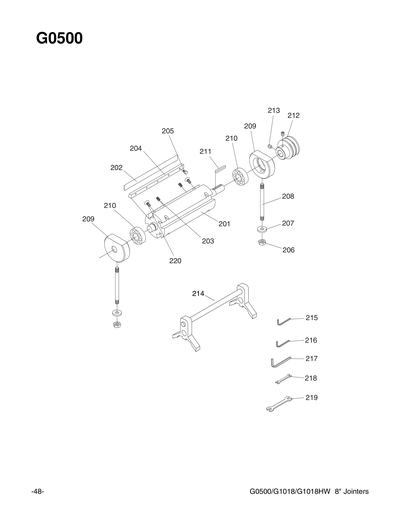

G0500 CUTTERHEAD DIAGRAM


Ref # Part # Description Price Qty
201 P0500201 CUTTERHEAD $79.25
202 H4982 Blade Set for 8" Jointer - Set of 4 $49.95
203 P1021103 HELICAL SPRING .6 X 16 $1.25
204 PG1018204 KNIFE GIB 8" $8.00
205 P1017117 HEX HD GIB BOLT 1/4-28 X 7 $1.25
206 PN11 HEX NUT 3/8-24 $1.00
207 PLW04 LOCK WASHER 3/8 $1.00
208 PG1018208 STUD-DE 5/16-24 X 4-3/4 1/2RH $1.25
209 PG1018209 BEARING BLOCK $8.00
211 PK01M KEY 5 X 5 X 22 $1.00
212 PG1018212 PULLEY 3/4ID $7.50
213 PSS17 SET SCREW 5/16-18 X 5/16 $1.00
214 PG1018214A KNIFE GAUGE ASSY V2.01.03 $10.00
215 PAW03M HEX WRENCH 3MM $1.00
216 PAW04M HEX WRENCH 4MM $1.00
217 PAW05M HEX WRENCH 5MM $1.00
218 PWR810 WRENCH 8 X 10MM OPEN-END $2.25
219 PWR1214 WRENCH 12 X 14MM OPEN-END $5.00
220 P0500220 JACK SCREW M5-.8 X 12 $1.25
Ref # Part # Description Price Qty
