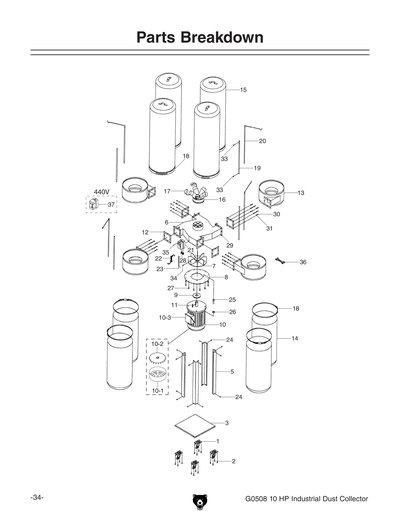

G0508 MAIN DIAGRAM

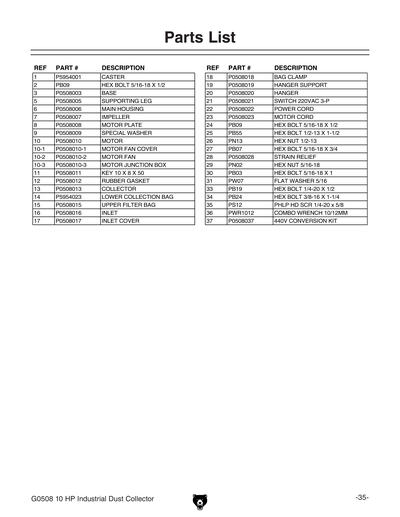

Ref # Part # Description Price Qty
1 P0508001 ***USE P5954001*** $7.50
2 P0508002 ***USE PB09*** $0.75
3 P0508003 BASE $81.25
4 P0508004 SUPPORTING LEG $22.00
5 P0508005 SUPPORTING LEG $24.50
6 P0508006 MAIN HOUSING $427.50
7 P0508007 IMPELLER $148.50
8 P0508008 MOTOR PLATE $25.00
9 P0508009 SPECIAL WASHER $1.25
10 P0508010 MOTOR 10HP 220/440V $1,040.50
10-1 P0508010-1 MOTOR FAN COVER $15.00
10-2 P0508010-2 MOTOR FAN $6.00
11 P0508011 KEY 10 X 8 X 50 $2.50
12 P0508012 RUBBER GASKET $5.00
13 P0508013 COLLECTOR $101.50
14 P5954023 LOWER BAG $5.25
15 P0508015 UPPER FILTER BAG $117.25
16 P0508016 INLET $97.50
17 P0508017 INLET COVER $2.50
18 P0508018 BAG CLAMP $20.00
19 P0508019 HANGER SUPPORT $16.25
20 P0508020 HANGER $16.25
21 P0508021 SWITCH 220VAC 3-P $111.00
22 P0508022 POWER CORD $48.75
23 P0508023 MOTOR CORD $12.50
24 PB09 HEX BOLT 5/16-18 X 1/2 $1.00
25 PB55 HEX BOLT 1/2-13 X 1-1/2 $1.00
26 PN13 ***USE PN06*** $0.75
27 PB07 HEX BOLT 5/16-18 X 3/4 $1.00
28 P0508028 STRAIN RELIEF $5.75
29 PN02 HEX NUT 5/16"-18 $1.00
30 PB03 HEX BOLT 5/16-18 X 1 $1.00
31 PW07 FLAT WASHER 5/16 $1.00
32 PB07 HEX BOLT 5/16-18 X 3/4 $1.00
33 PB19 HEX BOLT 1/4-20 X 1/2 $1.00
34 PB24 HEX BOLT 3/8-16 X 1-1/4 $1.00
35 PS12 PHLP HD SCR 1/4-20 x 5/8 $1.00
36 PWR1012 COMBO WRENCH 10/12MM $2.00
37 P0508037 440V CONVERSION KIT SHERN DIAN $105.00
