Enter the quantity next to the part you are ordering and press the "Add To Cart" button. If you cannot locate your part below, click on the appropriate diagram at the top of the page or contact our tech support department at techsupport@grizzly.com or 570-546-9663.

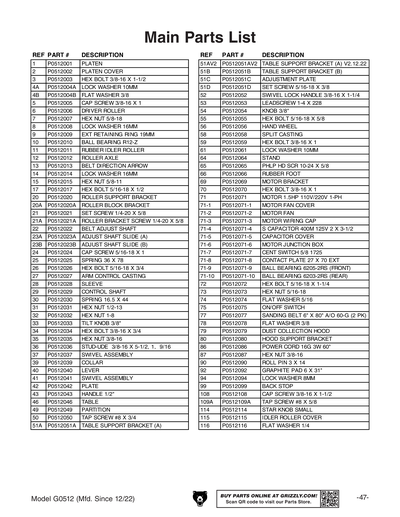

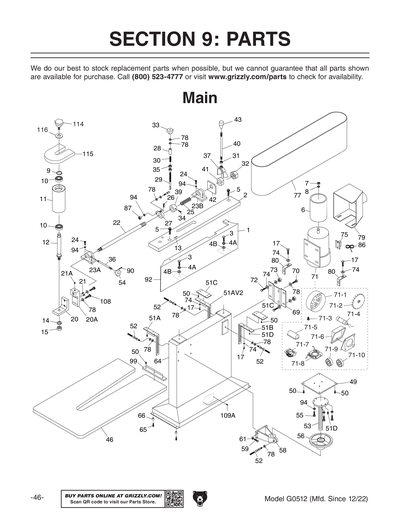

G0512 MAIN DIAGRAM


Ref #	Part #	Description	Price	Qty

1	P0512001	PLATEN	$130.75
2	P0512002	PLATEN COVER	$46.75
3	PB16	HEX BOLT 3/8-16 X 1-1/2	$1.00
4A	PLW06M	LOCK WASHER 10MM	$1.00
4B	PW02	FLAT WASHER 3/8	$1.00
6	P0512006	DRIVER ROLLER	$74.75
7	PN09	HEX NUT 5/8-18	$1.00
9	PR08M	EXT RETAINING RING 19MM	$1.00
10	P0512010	BALL BEARING R12-Z	$15.00
11	P0512011	RUBBER IDLER ROLLER	$37.50
12	P0512012	ROLLER AXLE	$11.75
14	PLW10M	LOCK WASHER 16MM	$1.00
15	PN04	HEX NUT 5/8-11	$1.00
17	PB09	HEX BOLT 5/16-18 X 1/2	$1.00
20	P0512020	ROLLER SUPPORT BRACKET	$5.75
20A	P0512020A	ROLLER BLOCK BRACKET	$6.00
21	PSS10	SET SCREW 1/4-20 X 5/8	$1.00
21A	P0512021A	ROLLER BRACKET SCREW 1/4-20 X 5/8	$1.00
22	P0512022	BELT ADJUST SHAFT	$18.75
23A	P0512023A	ADJUST SHAFT SLIDE A	$4.00
23B	P0512023B	ADJUST SHAFT SLIDE B	$4.00
25	P0512025	SPRING 36 X 78	$1.00
26	PB07	HEX BOLT 5/16-18 X 3/4	$1.00
27	P0512027	ARM CONTROL CASTING	$3.00
28	P0512028	SLEEVE	$1.75
29	P0512029	CONTROL SHAFT	$5.25
30	P0512030	SPRING 16.5 X 44	$1.00
31	PN06	HEX NUT 1/2-12	$1.00
32	PN22	HEX NUT 1-8	$1.00
33	P0512033	TILT KNOB 3/8"	$1.00
34	PB21	HEX BOLT 3/8-16 X 3/4	$1.25
35	PN08	HEX NUT 3/8-16	$1.25
36	P0512036	STUD-UDE 3/8-16 X 5-9/16 5/8RH / 1-1/16R	$1.25
37	P0512037	SWIVEL ASSEMBLY	$12.00
39	P0512039	COLLAR	$5.25
40	P0512040	LEVER	$3.00
41	P0512041	SWIVEL ASSEMBLY	$18.75
42	P0512042	PLATE	$4.25
43	P0512043	HANDLE 1/2"	$1.00
46	P0512046	TABLE	$161.75
49	P0512049	PARTITION	$10.00
50	PHTEK11	TAP SCREW #8 X 3/4	$1.00
51A	P0512051A	TABLE SUPPORT BRACKET A	$7.25
51B	P0512051B	TABLE SUPPORT BRACKET B	$8.75
51C	P0512051C	ADJUSTMENT PLATE	$11.25
51D	PSS02	SET SCREW 5/16-18 X 3/8	$1.00
51E	PLW01	LOCK WASHER 5/16	$1.00
52	P0512052	SWIVEL LOCK HANDLE 3/8-16 X 1-1/4"	$2.25
53	P0512053	LEADSCREW 1-4 X 228	$18.75
54	P0512054	KNOB 3/8"	$1.00
55	PB32	HEX BOLT 5/16-18 X 5/8	$1.00
56	P0512056	HAND WHEEL	$18.75
58	P0512058	SPLIT CASTING	$28.75
59	PB18	HEX BOLT 3/8-16 X 1	$1.00
64	P0512064	STAND	$491.50
65	PS22	PHLP HD SCR 10-24 X 5/8	$1.00
66	P0512066	RUBBER FOOT	$1.00
69	P1531069	MOTOR BRACKET	$36.00
71	P0512071	MOTOR 1-1/2HP	$187.00
71-1	P0512071-1	MOTOR FAN COVER	$5.75
71-2	P0512071-2	MOTOR FAN	$5.75
71-3	P0512071-3	MOTOR WIRING CAP	$7.25
71-4	PC400B	S CAPACITOR 400M 125V 1-3/4 X 3-7/8	$15.00
71-5	P0512071-5	CAPACITOR COVER	$2.00
72	PB12	HEX BOLT 5/16-18 X 1-1/4	$1.00
73	PN02	HEX NUT 5/16-18	$1.00
74	PW07	FLAT WASHER 5/16	$1.25
75	G8988	Safety Paddle Switch	$4.50
77	G1532	6" x 80" Sanding Belt A60, 2 pc.	$17.95
79	P0512079	DUST COLLECTION HOOD	$38.00
80	P0512080	HOOD SUPPORT BRACKET	$2.25

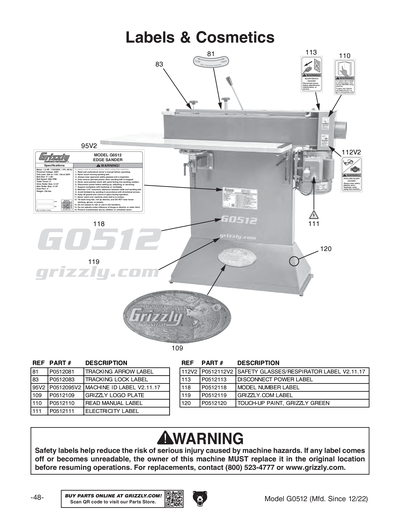

81	P0512081	TRACKING ARROW LABEL	$1.00
83	P0512083	TRACKING LOCK LABEL	$1.00
86	PWRCRD220L	POWER CORD 12G X 3W 86"L	$27.50
90	PRP37M	ROLL PIN 3 X 14	$1.00
92	P0512092	GRAPHITE PAD 6 X 31"	$37.50
94	PLW04M	LOCK WASHER 8MM	$1.00
95	P0512095	MACHINE ID LABEL	$22.00
99	P0512099	BACK STOP	$14.00
109	G8588	Name Plates - Small	$16.95
109A	PHTEK10	TAP SCREW #8 X 5/8	$1.00
110	PLABEL-12	READ MANUAL 2W X 3.3H	$2.25
111	PLABEL-14	ELECTRICITY 1.4W X 1.2H	$1.00
112	PLABEL-11	SAFETY GLASSES 2W X 3.3H	$2.25
113	PLABEL-13	DISCONNECT SANDER 220V 2W X 3.3H	$2.25
114	P0512114	STAR KNOB SMALL	$1.00
115	P0512115	IDLER ROLLER COVER	$6.50
116	PW06	FLAT WASHER 1/4	$1.25

Ref #	Part #	Description	Price	Qty
