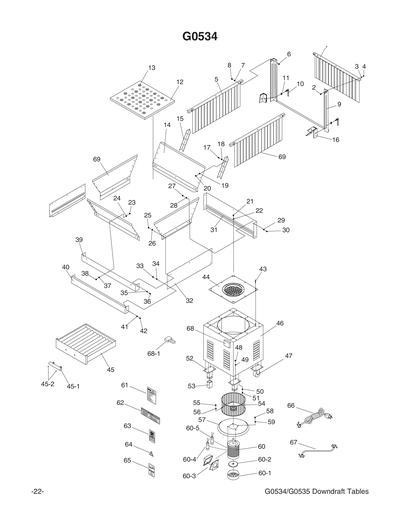

G0534 MAIN DIAGRAM

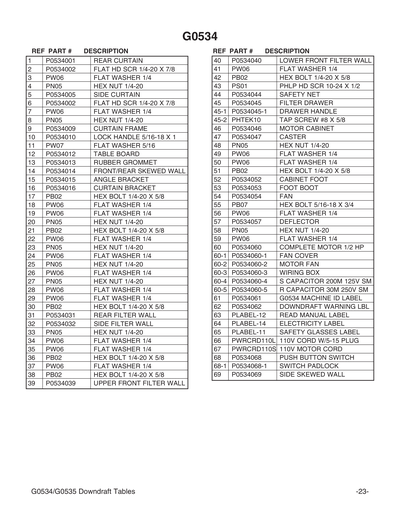

Ref # Part # Description Price Qty
1 P0534001 REAR CURTAIN $26.00
2 P0534002 FLAT HD SCR 1/4-20 X 78 $1.00
3 PW06 FLAT WASHER 1/4 $1.00
4 PN05 HEX NUT 1/4"-20 $1.00
5 P0534005 SIDE CURTAIN $27.00
6 P0534002 FLAT HD SCR 1/4-20 X 78 $1.00
7 PW06 FLAT WASHER 1/4 $1.00
8 PN05 HEX NUT 1/4"-20 $1.00
9 P0534009 CURTAIN FRAME $48.75
10 P0534010 LOCK HANDLE 5/16-18 X 1 $2.00
11 PW07 FLAT WASHER 5/16 $1.00
12 P0534012 TABLE BOARD $48.75
13 P0534013 RUBBER GROMMET $1.00
14 P0534014 FRONT/REAR SKEWED WALL $18.00
15 P0534015 ANGLE BRACKET $5.00
16 P0534016 CURTAIN BRACKET $5.75
17 PB02 HEX BOLT 1/4-20 X 5/8 $1.00
18 PW06 FLAT WASHER 1/4 $1.00
19 PW06 FLAT WASHER 1/4 $1.00
20 PN05 HEX NUT 1/4"-20 $1.00
21 PB02 HEX BOLT 1/4-20 X 5/8 $1.00
22 PW06 FLAT WASHER 1/4 $1.00
23 PN05 HEX NUT 1/4"-20 $1.00
24 PW06 FLAT WASHER 1/4 $1.00
25 PN05 HEX NUT 1/4"-20 $1.00
26 PW06 FLAT WASHER 1/4 $1.00
27 PN05 HEX NUT 1/4"-20 $1.00
28 PW06 FLAT WASHER 1/4 $1.00
29 PW06 FLAT WASHER 1/4 $1.00
30 PB02 HEX BOLT 1/4-20 X 5/8 $1.00
31 P0534031 REAR FILTER WALL $15.50
32 P0534032 SIDE FILTER WALL $16.25
33 PN05 HEX NUT 1/4"-20 $1.00
34 PW06 FLAT WASHER 1/4 $1.00
35 PW06 FLAT WASHER 1/4 $1.00
36 PB02 HEX BOLT 1/4-20 X 5/8 $1.00
37 PW06 FLAT WASHER 1/4 $1.00
38 PB02 HEX BOLT 1/4-20 X 5/8 $1.00
39 P0534039 UPPER FRONT FILTER WALL $9.75
40 P0534040 LOWER FRONT FILTER WALL $9.75
41 PW06 FLAT WASHER 1/4 $1.00
42 PB02 HEX BOLT 1/4-20 X 5/8 $1.00
43 PS01 PHLP HD SCR 10-24 X 1/2 $1.00
44 P0534044 SAFETY NET $19.50
45 P0534045 FILTER DRAWER $187.50
45-1 P0534045-1 DRAWER HANDLE $6.25
45-2 PHTEK10 TAP SCREW #8 X 5/8 $1.00
46 P0534046 MOTOR CABINET $118.44
47 P0534047 CASTER $5.00
48 PN05 HEX NUT 1/4"-20 $1.00
49 PW06 FLAT WASHER 1/4 $1.00
50 PW06 FLAT WASHER 1/4 $1.00
51 PB02 HEX BOLT 1/4-20 X 5/8 $1.00
52 P0534052 CABINET FOOT $4.50
53 P0534053 FOOT BOOT $1.00
54 P0534054 FAN $36.50
55 PB07 HEX BOLT 5/16-18 X 3/4 $1.00
56 PW06 FLAT WASHER 1/4 $1.00
57 P0534057 DEFLECTOR $35.00
58 PN05 HEX NUT 1/4"-20 $1.00
59 PW06 FLAT WASHER 1/4 $1.00
60 P0534060 COMPLETE MOTOR 1/2HP $152.68
60-1 P0534060-1 FAN COVER $7.25
60-2 P0534060-2 MOTOR FAN $3.50
60-3 P0534060-3 WIRING BOX $5.75
60-4 P0534060-4 S CAPACITOR 200M 125V SMALL $10.75
60-5 P0534060-5 R CAPACITOR 30M 250V SMALL $15.50
61 P0534061 G0534 MACHINE ID LABEL $2.00
62 P0534062 DOWNDRAFT WARNING LABEL $1.00
63 PLABEL-12 Read Manual 2w X 3.3h $1.00
65 PLABEL-11 Safety Glasses 2w X 3.3h $1.00
66 PWRCRD110L POWER CORD 16-GAUGE 3-WIRE 73"-LENGTH $18.50
67 PWRCRD110S POWER CORD 16-GAUGE 3-WIRE 24"-LENGTH $6.00
68 P0534068 PUSH BUTTON SWITCH $57.00
68-1 P0534068-1 SWITCH PADLOCK $3.00
69 P0534069 CANVAS SIDE WALL $14.25
Ref # Part # Description Price Qty
