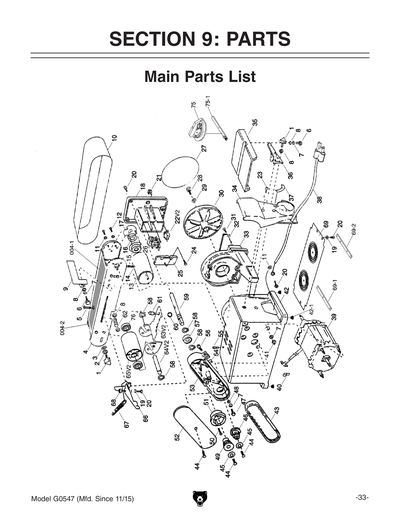

G0547 MAIN DIAGRAM

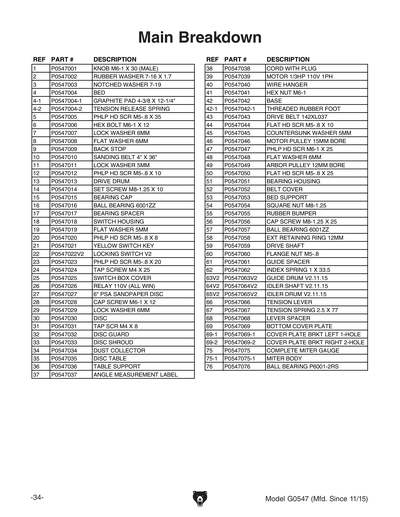

Ref # Part # Description Price Qty
1 P0547001 KNOB M6-1 X 27 (MALE) $1.50
1 P0547001 KNOB M6-1 X 27 (MALE) $1.50
2 P0547002 RUBBER WASHER 7-16 X 1.7 $1.00
2 P0547002 RUBBER WASHER 7-16 X 1.7 $1.00
3 P0547003 NOTCHED WASHER 7-19 $1.00
3 P0547003 NOTCHED WASHER 7-19 $1.00
4 P0547004 BED $13.50
4 P0547004 BED $13.50
5 PS75M PHLP HD SCR M5-.8 X 35 $1.00
5 PS75M PHLP HD SCR M5-.8 X 35 $1.00
6 PB02M HEX BOLT M6-1 X 12 $1.00
6 PB02M HEX BOLT M6-1 X 12 $1.00
7 PLW03M LOCK WASHER 6MM $1.00
7 PLW03M LOCK WASHER 6MM $1.00
8 PW03M FLAT WASHER 6MM $1.00
8 PW03M FLAT WASHER 6MM $1.00
9 P0547009 BACK STOP $1.25
9 P0547009 BACK STOP $1.25
10 P0547010 SANDING BELT 4" X 36" $2.50
10 P0547010 SANDING BELT 4" X 36" $2.50
11 PLW01M LOCK WASHER 5MM $1.00
11 PLW01M LOCK WASHER 5MM $1.00
12 PS09M PHLP HD SCR M5-.8 X 10 $1.00
12 PS09M PHLP HD SCR M5-.8 X 10 $1.00
13 P0547013 DRIVE DRUM $8.75
13 P0547013 DRIVE DRUM $8.75
14 PSS16M SET SCREW M8-1.25 X 10 $1.00
14 PSS16M SET SCREW M8-1.25 X 10 $1.00
15 P0547015 BEARING CAP $1.00
15 P0547015 BEARING CAP $1.00
16 P6001 BALL BEARING 6001ZZ $1.75
16 P6001 BALL BEARING 6001ZZ $1.75
17 P0547017 BEARING SPACER $1.00
17 P0547017 BEARING SPACER $1.00
18 P0547018 SWITCH HOUSING $4.25
18 P0547018 SWITCH HOUSING $4.25
19 PW02M FLAT WASHER 5MM $1.00
19 PW02M FLAT WASHER 5MM $1.00
20 PS05M PHLP HD SCR M5-.8 x 8 $1.00
20 PS05M PHLP HD SCR M5-.8 x 8 $1.00
21 P0547021 SWITCH KEY .6MM $1.00
21 P0547021 SWITCH KEY .6MM $1.00
22 P0547022 LOCKING SWITCH $3.50
22 P0547022 LOCKING SWITCH $3.50
23 PS06M PHLP HD SCR M5-.8 x 20 $1.00
23 PS06M PHLP HD SCR M5-.8 x 20 $1.00
24 PHTEK28M TAP SCREW M4 X 25 $1.00
24 PHTEK28M TAP SCREW M4 X 25 $1.00
25 P0547025 SWITCH BOX COVER $1.50
25 P0547025 SWITCH BOX COVER $1.50
26 P0547026 RELAY 110V (ALL WIN) $13.75
26 P0547026 RELAY 110V (ALL WIN) $13.75
27 P0547027 6" PSA SANDPAPER DISC $1.00
27 P0547027 6" PSA SANDPAPER DISC $1.00
28 PSB26M CAP SCREW M6-1 X 12 $1.00
28 PSB26M CAP SCREW M6-1 X 12 $1.00
29 PLW03M LOCK WASHER 6MM $1.00
29 PLW03M LOCK WASHER 6MM $1.00
30 P0547030 DISC $5.00
30 P0547030 DISC $5.00
31 PHTEK4M TAP SCREW M4 X 8 $1.00
31 PHTEK4M TAP SCREW M4 X 8 $1.00
32 P0547032 DISC GUARD $1.00
32 P0547032 DISC GUARD $1.00
33 P0547033 DISC SHROUD $3.00
33 P0547033 DISC SHROUD $3.00
34 P0547034 DUST COLLECTOR $2.75
34 P0547034 DUST COLLECTOR $2.75
35 P0547035 DISC TABLE $8.75
35 P0547035 DISC TABLE $8.75
36 P0547036 TABLE SUPPORT $2.00
36 P0547036 TABLE SUPPORT $2.00
37 P0547037 ANGLE MEASUREMENT LABEL $1.00
37 P0547037 ANGLE MEASUREMENT LABEL $1.00
38 P0547038 CORD WITH PLUG $4.25
38 P0547038 CORD WITH PLUG $4.25
39 P0547039 MOTOR 1/3HP 110V 1PH $70.00
39 P0547039 MOTOR 1/3HP 110V 1PH $70.00
40 P0547040 WIRE HANGER $1.00
40 P0547040 WIRE HANGER $1.00
41 PN01M HEX NUT M6-1 $1.00
41 PN01M HEX NUT M6-1 $1.00
42 P0547042 BASE $24.50
42 P0547042 BASE $24.50
43 P0547043 DRIVE BELT 142XL037 $4.50
43 P0547043 DRIVE BELT 142XL037 $4.50
44 PFH07M FLAT HD SCR M5-.8 X 10 $1.00
44 PFH07M FLAT HD SCR M5-.8 X 10 $1.00
45 P0547045 COUNTERSUNK WASHER 5MM $1.00
45 P0547045 COUNTERSUNK WASHER 5MM $1.00
46 P0547046 DRIVE PULLEY $1.75
46 P0547046 DRIVE PULLEY $1.75
47 PS47M PHLP HD SCR M6-1 X 25 $1.00
47 PS47M PHLP HD SCR M6-1 X 25 $1.00
48 PW03M FLAT WASHER 6MM $1.00
48 PW03M FLAT WASHER 6MM $1.00
49 P0547049 DRIVE PULLEY $1.75
49 P0547049 DRIVE PULLEY $1.75
50 PFH37M FLAT HD SCR M5-.8 X 25 $1.00
50 PFH37M FLAT HD SCR M5-.8 X 25 $1.00
51 P0547051 BEARING HOUSING $2.00
51 P0547051 BEARING HOUSING $2.00
52 P0547052 BELT COVER $1.25
52 P0547052 BELT COVER $1.25
53 P0547053 BED SUPPORT $4.25
53 P0547053 BED SUPPORT $4.25
54 P0547054 ***USE PSN03M*** $2.00
54 PSN03M SQUARE NUT M8-1.25 $1.00
55 P0547055 RUBBER BUMPER $1.00
55 P0547055 RUBBER BUMPER $1.00
56 PSB31M CAP SCREW M8-1.25 X 25 $1.00
56 PSB31M CAP SCREW M8-1.25 X 25 $1.00
57 P6001 BALL BEARING 6001ZZ $1.75
57 P6001 BALL BEARING 6001ZZ $1.75
58 PR03M EXT RETAINING RING 12MM $1.00
58 PR03M EXT RETAINING RING 12MM $1.00
59 P0547059 DRIVE SHAFT $2.00
59 P0547059 DRIVE SHAFT $2.00
60 P0547060 ***USE PFN04M*** $2.00
60 PFN04M FLANGE NUT M5-.8 $1.00
61 P0547061 GUIDE SPACER $1.00
61 P0547061 GUIDE SPACER $1.00
62 P0547062 INDEX SPRING 1 X 33.5 $1.00
62 P0547062 INDEX SPRING 1 X 33.5 $1.00
63 P0547063 GUIDE DRUM $2.25
63 P0547063 GUIDE DRUM $2.25
64 P0547064 IDLER SHAFT $2.00
64 P0547064 IDLER SHAFT $2.00
65 P0547065 IDLER DRUM $6.25
65 P0547065 IDLER DRUM $6.25
66 P0547066 TENSION LEVER $1.00
66 P0547066 TENSION LEVER $1.00
67 P0547067 TENSION SPRING 2.5 X 77 $1.25
67 P0547067 TENSION SPRING 2.5 X 77 $1.25
68 P0547068 LEVER SPACER $1.00
68 P0547068 LEVER SPACER $1.00
69 P0547069 BOTTOM COVER PLATE $2.25
69 P0547069 BOTTOM COVER PLATE $2.25

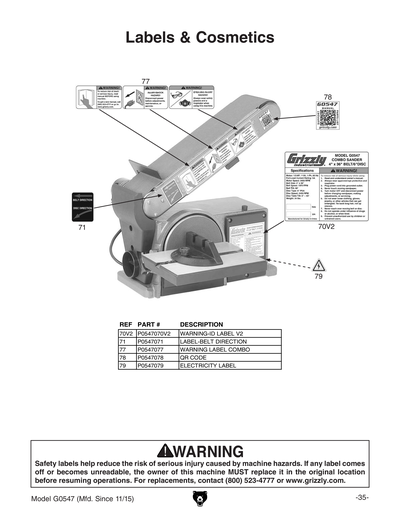

70 P0547070 WARNING-ID LABEL $1.25
70 P0547070 WARNING-ID LABEL $1.25
71 P0547071 LABEL-BELT DIRECTION $1.00
71 P0547071 LABEL-BELT DIRECTION $1.00
72 P0547072 LABEL-RESPIRATOR/GLASSES $1.00
72 P0547072 LABEL-RESPIRATOR/GLASSES $1.00
73 P0547073 WARNING LABEL-READ MANUAL $1.00
73 P0547073 WARNING LABEL-READ MANUAL $1.00
74 P0547074 WARNING LABEL-DISCONNECT $1.00
74 P0547074 WARNING LABEL-DISCONNECT $1.00
Ref # Part # Description Price Qty
