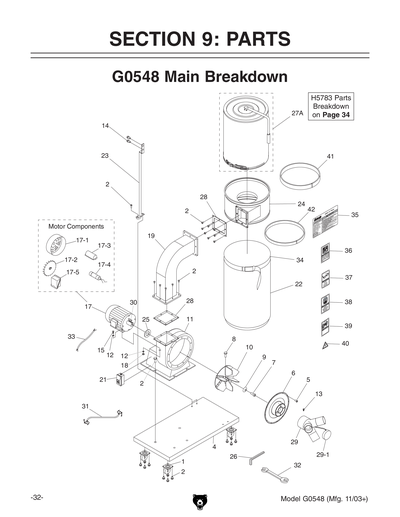

G0548 MAIN DIAGRAM

While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

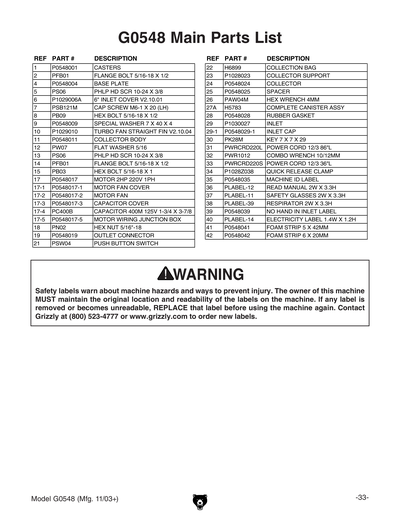

Ref #	Part #	Description	Price	Qty

1	P0548001	CASTERS	$7.25
4	P0548004	BASE PLATE	$42.25
6	P0548006	*USE P1029006A*	$16.25
7	P1028007	*USE PSB121M*	$1.00
8	PB09	HEX BOLT 5/16-18 X 1/2	$1.00
9	P0548009	SPECIAL WASHER 7 X 40 X 4	$1.25
10	P0548010	*USE P1029Z2010*	$76.25
11	P0548011	COLLECTOR BODY	$137.50
12	PW07	FLAT WASHER 5/16	$1.25
13	PS06	PHLP HD SCR 10-24 X 3/8	$1.00
14	PFB01	FLANGE BOLT 5/16-18 X 1/2	$1.00
15	PB03	HEX BOLT 5/16-18 X 1	$1.00
17	P0548017	MOTOR 2HP 1PH 220V	$196.75
17-1	P0548017-1	MOTOR FAN COVER	$11.50
17-2	P0548017-2	MOTOR FAN	$9.50
17-3	P0548017-3	CAPACITOR COVER	$3.50
17-4	PC400A	*USE PC400B*	$10.00
17-5	P0548017-5	MOTOR WIRING JUNCTION BOX	$15.50
18	PN02	HEX NUT 5/16-18	$1.00
19	P0548019	OUTLET CONNECTOR	$43.00
21	P0548021	*USE PSW04*	$16.50
22	H6899	Bottom Bag For G0548 & G0562	$5.95
23	P0548023	*USE P1028023*	$8.00
24	P0548024	COLLECTOR	$85.50
25	P0548025	SPACER	$1.25
26	PAW05M	Wrench Hex 5mm	$1.00

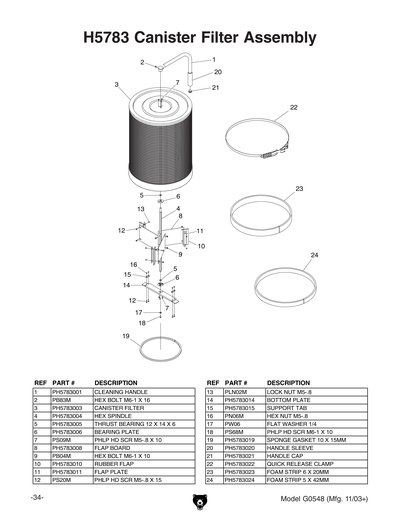

27	H5783	Extra Canister For G0548/G0562	$169.95
28	P0548028	RUBBER GASKET	$5.75
29	P0548029	*USE P1030027*	$30.00
29-1	P0548029-1	INLET CAP	$1.75
30	PK28M	KEY 7 X 7 X 30	$1.00
32	P0548032	*USE PWR1012*	$2.50
34	P0548034	*USE P1028Z038*	$9.00
35	P0548035	MACHINE ID LABEL	$2.00
36	PLABEL-12	Read Manual 2w X 3.3h	$1.00
37	PLABEL-11	Safety Glasses 2w X 3.3h	$1.00
39	P0548039	NO HAND IN INLET LABEL	$1.00
40	PLABEL-14	Electricity 1.4w X 1.2h	$0.75
