Enter the quantity next to the part you are ordering and press the "Add To Cart" button. If you cannot locate your part below, click on the appropriate diagram at the top of the page or contact our tech support department at techsupport@grizzly.com or 570-546-9663.

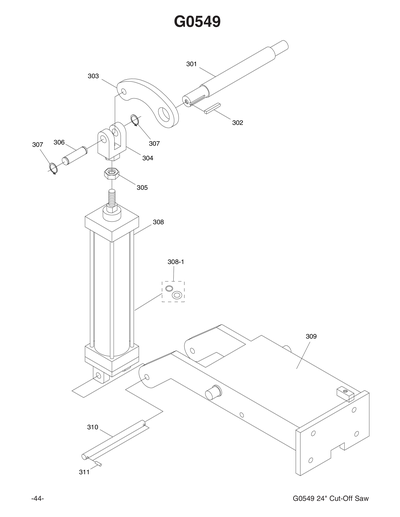

G0549 AIR CYLINDER DIAGRAM


Ref # Part # Description Price Qty
301 P0549301 MAIN CRANK SHAFT $37.50
302 PK86M KEY 7 X 8 X 50 $1.00
303 P0549303 ROCKER ARM $25.25
304 P0549304 ROD END CLEVIS $27.50
305 PN17M HEX NUT M20-1.5 $3.50
306 P0549306 COUPLING PIN $3.50
307 PR09M EXT RETAINING RING 20MM $1.00
308 P0549308 AIR CYLINDER 80 X 300MM $336.50
308-1 P0549308-1 AIR CYLINDER SEAL KIT $14.25
309 P0549309 SUPPORT FRAME $330.00
310 P0549310 COUPLING PIN $6.25
311 P0549311 SPLINE PIN 5 X 35MM $1.00
Ref # Part # Description Price Qty
