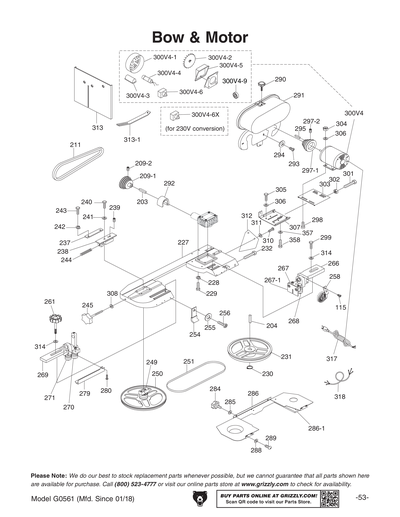

G0561 BOW MOTOR DIAGRAM


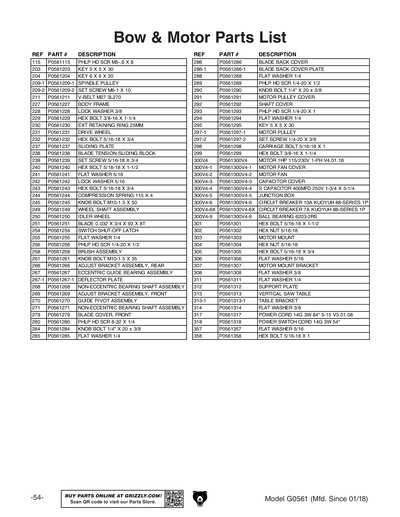

Ref #	Part #	Description	Price	Qty

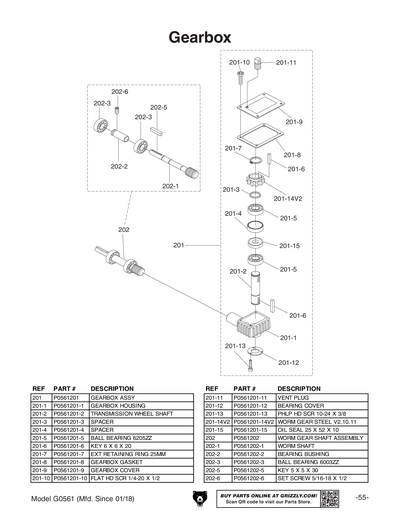

201	P0561201	GEAR BOX ASSEMBLY	$220.50
202	P0561202	WORM GEAR SHAFT ASSEMBLY	$109.75
203	PK12M	KEY 5 X 5 X 30	$1.00
204	PK07M	KEY 6 x 6 x 20	$1.00
209-1	P0561209-1	SPINDLE PULLEY	$46.50
209-2	PSS03	SET SCREW 1/4-20 X 3/8	$1.00
211	PVM27	V-belt 3l270 (qty 1)	$2.25
227	P0561227	BODY FRAME	$243.00
228	PLW04	LOCK WASHER 3/8	$1.00
229	PB24	HEX BOLT 3/8-16 X 1-1/4	$1.00
230	PR11M	EXT RETAINING RING 25MM	$1.00
231	P0561231	DRIVE WHEEL ASSEMBLY	$66.00
232	PB07	HEX BOLT 5/16-18 X 3/4	$1.00
237	P0561237	SLIDING PLATE	$3.00
238	P0561238	BLADE TENSION SLIDING BLOCK	$31.75
239	PSS18	SET SCREW 5/16-18 X 3/4	$1.00
240	PB11	HEX BOLT 5/16-18 X 1-1/2	$1.00
241	PW07	FLAT WASHER 5/16	$1.00
242	PLW01	LOCK WASHER 5/16	$1.00
243	PB07	HEX BOLT 5/16-18 X 3/4	$1.00
244	P0561244	COMPRESSION SPRING 115 x 4	$2.25
245	P0561245	BLADE ADJUSTABLE KNOB	$6.50
249	P0561249	SHAFT ASSEMBLY	$18.75
250	P0561250	IDLER WHEEL ASSEMBLY	$92.00
251	P0561251	BLADE 0.032 X 3/4 X 93 X 6-10T	$57.00
254	P0561254	SWITCH CUT OFF TIP	$2.25
255	PW06	FLAT WASHER 1/4	$1.00
256	PS04	PHLP HD SCR 1/4-20 X 1/2	$1.00
258	P0561258	BRUSH ASSEMBLY	$28.50
261	P0561261	BLADE ADJUSTABLE KNOB	$5.00
266	P0561266	ADJ BRACKET ASSY (REAR)	$59.50
267	P0561267	GUIDE PIVOT ASSEMBLY	$21.25
268	P0561268	BEARING SHAFT ASSEMBLY	$21.25
269	P0561269	ADJ BRACKET (FRONT)	$72.50
270	P0561270	GUIDE PIVOT ASSEMBLY	$21.25
271	P0561271	BEARING SHAFT ASSEMBLY	$21.25
279	P0561279	BLADE COVER (FRONT)	$4.75
280	PS41	PHLP HD SCR 6-32 X 1/4	$1.00
284	P0561284	KNOB	$3.25
285	PW06	FLAT WASHER 1/4	$1.00
286	P0561286	BLADE BACK COVER	$88.75
288	PW06	FLAT WASHER 1/4	$1.00
289	PS04	PHLP HD SCR 1/4-20 X 1/2	$1.00
290	P0561290	PLUM HANDLE	$1.00
291	P0561291	MOTOR PULLEY COVER	$19.00
292	P0561292	COVER	$6.50
293	PS04	PHLP HD SCR 1/4-20 X 1/2	$1.00
294	PW06	FLAT WASHER 1/4	$1.00
295	PK12M	KEY 5 X 5 X 30	$1.00
297-1	P0561297-1	MOTOR PULLEY	$25.00
297-2	PSS03	SET SCREW 1/4-20 X 3/8	$1.00
298	PCB05	CARRIAGE BOLT 5/16-18 X 3/4	$2.00
299	PB24	HEX BOLT 3/8-16 X 1-1/4	$1.00
300	P0561300	MOTOR 1HP V1.03.04	$205.70
300-1	P0561300-1	MOTOR FAN COVER	$22.50
300-2	P0561300-2	MOTOR FAN	$12.00
300-3	P0561300-3	CAPACITOR COVER	$20.50
300-4	P0561300-4	*use Pc150a*	$46.75
300-5	P0561300-5	JUNCTION BOX	$16.50
301	PB06	HEX BOLT 5/16-18 X 2	$1.00
302	PN02	HEX NUT 5/16"-18	$1.00
303	P0561303	MOTOR MOUNT PLATE	$17.00
304	PN02	HEX NUT 5/16"-18	$1.00
305	PB07	HEX BOLT 5/16-18 X 3/4	$1.00
306	PW07	FLAT WASHER 5/16	$1.00
307	P0561307	MOTOR MOUNT BRACKET	$24.50
308	PW02	FLAT WASHER 3/8	$1.00
310	PS04	PHLP HD SCR 1/4-20 X 1/2	$1.00
311	PW06	FLAT WASHER 1/4	$1.00
312	P0561312	SUPPORT PLATE	$3.00
313	P0561313	VERTICAL SAW TABLE	$22.00
314	PW02	FLAT WASHER 3/8	$1.00
357	PW07	FLAT WASHER 5/16	$1.00
358	P0561358	*use Pb03*	$1.00
