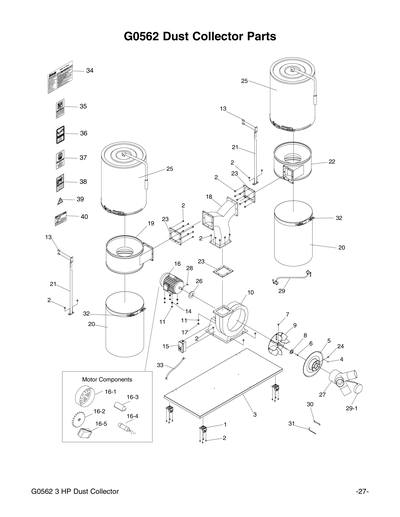

G0562 MAIN DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

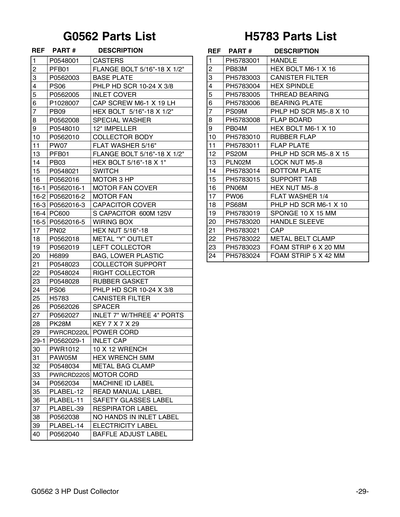

Ref # Part # Description Price Qty
1 P0548001 CASTERS $7.25
3 P0562003 BASE PLATE $73.25
5 P0562005 INLET COVER $15.50
6 PSB121M ***use Pcap121m*** $1.00
7 PB09 HEX BOLT 5/16-18 X 1/2 $1.00
8 P0548009 SPECIAL WASHER 7 X 40 X 4 $1.25
9 P0548010 ***USE P1029Z2010*** $76.25
10 P0562010 COLLECTOR BODY $137.50
11 PW07 FLAT WASHER 5/16 $1.25
13 PFB01 FLANGE BOLT 5/16-18 X 1/2 $1.00
14 PB03 HEX BOLT 5/16-18 X 1 $1.00
15 PSW04 Push Button Switch $25.00
16 P0562016 ***USE P1030016*** $270.00
16-1 P0562016-1 MOTOR FAN COVER $6.25
16-2 P0562016-2 MOTOR FAN $9.50
16-3 P0562016-3 CAPACITOR COVER $5.25
16-4 PC600 S CAPACITOR 600M 125V 1-3/4 X 3-5/16 $13.75
16-5 P0562016-5 WIRING BOX $5.50
17 PN02 HEX NUT 5/16-18 $1.00
18 P0562018 METAL Y OUTLET $53.75
19 P1030019 COLLECTOR LEFT $60.75
20 H6899 Bottom Bag For G0548 & G0562 $5.95
21 P0548023 ***USE P1028023*** $8.00
22 P0548024 COLLECTOR $85.50
23 P0548028 RUBBER GASKET $5.75
24 PS06 PHLP HD SCR 10-24 X 3/8 $1.00

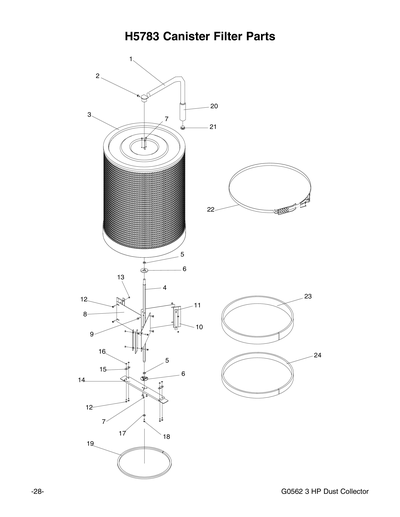

25 H5783 Extra Canister For G0548/G0562 $169.95
26 P0562026 SPACER $1.25
27 P0562027 INLET 7" W/THREE 4" PORTS $50.75
28 PK28M KEY 7 X 7 X 30 $1.00
29 PWRCRD220L Power Cord 12awg X 3c 86"l $24.00
30 PWR1012 Wrench 10/12mm $2.00
31 PAW05M Wrench Hex 5mm $1.00
32 P1028Z038 QUICK RELEASE CLAMP $14.00
33 PWRCRD220S Power Cord 12awg X 3c 36"l $5.00
34 P0562034 MACHINE ID LABEL $2.00
35 PLABEL-12 Read Manual 2w X 3.3h $1.00
36 PLABEL-11 Safety Glasses 2w X 3.3h $1.00
38 P0562038 NO HANDS IN INLET LABEL $1.00
39 PLABEL-14 Electricity 1.4w X 1.2h $0.75
40 P0562040 BAFFLE ADJUST LABEL $1.00
Ref # Part # Description Price Qty
