Enter the quantity next to the part you are ordering and press the "Add To Cart" button. If you cannot locate your part below, click on the appropriate diagram at the top of the page or contact our tech support department at techsupport@grizzly.com or 570-546-9663.

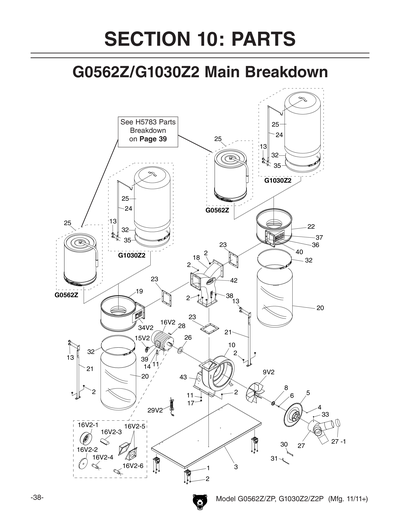

G0562Z MAIN DIAGRAM


Ref #	Part #	Description	Price	Qty

1	P1028Z2001	CASTER	$7.75
2	PFB01	FLANGE BOLT 5/16-18 X 1/2	$1.00
3	P1030Z2003	BASE PLATE	$94.00
4	PS06	PHLP HD SCR 10-24 X 3/8	$1.00
5	P1030Z2005	INLET COVER 7"	$20.75
6	PCAP121M	CAP SCREW M6-1 X 20 LH	$1.00
8	P1028Z2009	IMPELLER WASHER	$1.25
9V2	P1029Z2010V2	IMPELLER 12-3/4" ALUMINUM V2.09.11	$139.50
10	P1028Z2011	COLLECTOR BODY	$154.75
11	PW07	FLAT WASHER 5/16	$1.25
14	PB03	HEX BOLT 5/16-18 X 1	$1.00
15V2	P1030Z2015V2	PADDLE SWITCH V2.09.11	$4.50
16V2	P1030Z2016V2	MOTOR 3HP 220V 1PH V2.09.11	$276.00
16V2-1	P1030016-1	MOTOR FAN COVER	$3.25
16V2-2	P1030016-2	MOTOR FAN	$11.00
16V2-3	P1030Z2016V2-3	CAPACITOR COVER V2.09.11	$4.00
16V2-4	P1030Z2016V2-4	S CAPACITOR 500M 125V V2.09.11	$15.75
16V2-5	P1030Z2016V2-5	JUNCTION BOX V2.09.11	$7.50
16V2-6	P1030Z2016V2-6	R CAPACITOR 40M 300V V2.09.11	$17.50
17	PN02	HEX NUT 5/16-18	$1.00
20	T20543	41" x 31" Flat - 19.75" Diameter Plastic Bottom Bag	$3.95
21	P1028Z2023	COLLECTOR SUPPORT	$10.25
22	P0548Z024	COLLECTOR	$64.25
23	P1028Z2028	GASKET	$5.75
25	H5783	Extra Canister For G0548/Z & G0562/Z	$194.95
26	P1028Z2025	SPACER	$4.50
27	P1030Z2027	INLET 7" X 4" X 4" X 4"	$63.00
27-1	P1028Z2029-1	INLET CAP 4 IN	$2.00
28	PK28M	KEY 7 X 7 X 29	$1.00
29V2	P1030Z2029V2	POWER CORD 14G X 3C 6' 6-20 V2.09.11	$23.50
30	PWR1012	WRENCH 10 X 12MM OPEN-END	$2.00
31	PAW05M	WRENCH HEX 5MM	$1.00
32	P1030Z2P032	BELT CLAMP	$10.75
34V2	P0562Z034V2	MACHINE ID LABEL CSA V2.09.11	$30.00
35	P1030Z2035	FOAM STRIP 4 X 20MM	$2.00
36	PLABEL-11	SAFETY GLASSES 2W X 3.3H	$2.25
37	PLABEL-39	RESPIRATOR 2W X 3.3H	$2.25
38	PLABEL-59	HANDS/DUST COLLECTOR OUTLET 2W X 3.3H	$2.25
39	PLABEL-14	ELECTRICITY 1.4W X 1.2H	$1.00
40	PLABEL-12A	READ MANUAL 2W X 3.3H V2.07.05	$2.25
42	G8588	Name Plates - Small	$16.95
43	PPAINT-1	N/S GRIZZLY GREEN (G1023S)	$5.75

Ref #	Part #	Description	Price	Qty
