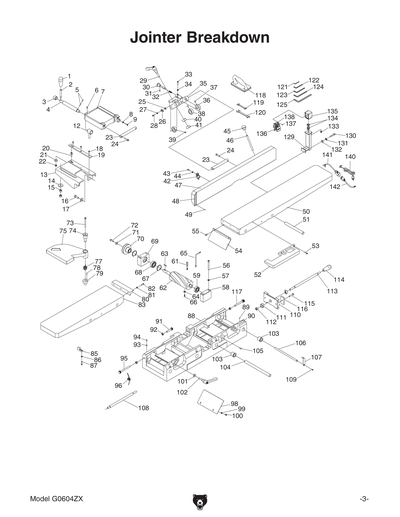

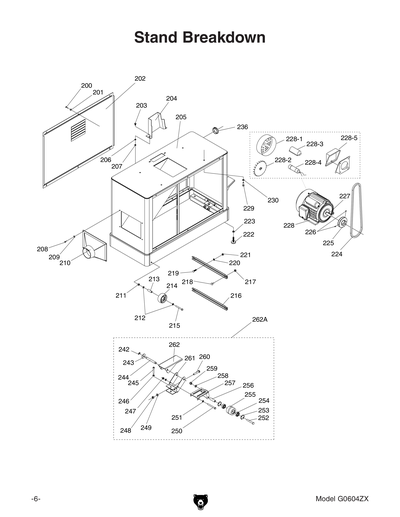

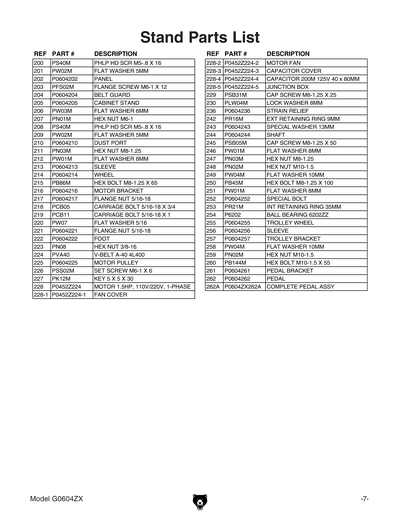

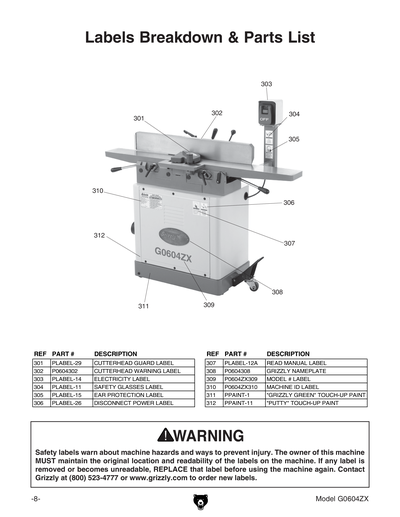

G0604ZX JOINTER DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

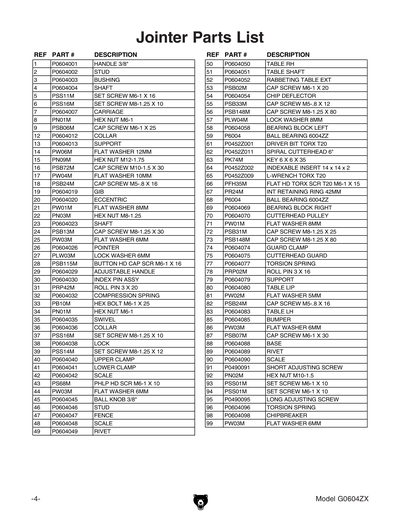

Ref # Part # Description Price Qty
1 P0604001 HANDLE $1.00
2 P0604002 STUD $1.00
3 P0604003 BUSHING $1.00
4 P0604004 SHAFT $7.50
5 PSS11M SET SCREW M6-1 X 16 $1.00
6 PSS16M SET SCREW M8-1.25 X 10 $1.00
7 P0604007 CARRIAGE $33.00
8 PN01M HEX NUT M6-1 $1.00
9 PSB06M ***use Pcap06m*** $1.00
12 P0604012 COLLAR $2.75
13 P0604013 SUPPORT $13.75
14 PW06M FLAT WASHER 12MM $1.00
15 PN09M HEX NUT M12-1.75 $1.00
16 PSB72M ***use Pcap72m*** $1.00
17 PW04M FLAT WASHER 10MM $1.00
18 PSB24M ***use Pcap24m*** $1.00
19 P0604019 GIB $6.00
20 P0604020 ECCENTRIC $1.75
21 PW01M FLAT WASHER 8MM $1.00
22 PN03M HEX NUT M8-1.25 $1.00
23 P0604023 SHAFT $1.75
24 PSB13M ***use Pcap13m*** $1.00
25 PW03M FLAT WASHER 6MM $1.00
26 P0604026 POINTER $1.00
27 PLW03M LOCK WASHER 6MM $1.00
28 PSB115M ***use Pcap115m*** $1.00
29 P0604029 ADJUSTABLE HANDLE $8.50
30 P0604030 INDEX PIN ASSY $1.75
31 PRP42M ROLL PIN 3 X 20 $1.00
32 P0604032 COMPRESSION SPRING $1.00
33 PB10M HEX BOLT M6-1 X 25 $1.00
34 PN01M HEX NUT M6-1 $1.00
35 P0604035 SWIVEL $14.50
36 P0604036 COLLAR $2.75
37 PSS16M SET SCREW M8-1.25 X 10 $1.00
38 P0604038 LOCK $1.75
39 PSS14M SET SCREW M8-1.25 X 12 $1.00
40 P0604040 CLAMP $1.00
41 P0604041 CLAMP $1.00
42 P0604042 SCALE $1.75
43 PS68M PHLP HD SCR M6-1 X 10 $1.50
44 PW03M FLAT WASHER 6MM $1.00
45 P0604045 BALL HANDLE $1.00
46 P0604046 STUD $1.00
47 P0604047 FENCE $94.00
48 P0604048 SCALE $1.00
49 P0604049 RIVET $1.00
50 P0604050 TABLE RH $119.50
51 P0604051 TABLE SHAFT $3.25
52 P0604052 RABBETING TABLE EXT $10.00
53 PSB02M ***use Pcap02m*** $1.00
54 P0604054 CHIP DEFLECTOR $1.75
55 PSB33M ***use Pcap33m*** $1.00
56 PSB148M ***use Pcap148m*** $1.00
57 PLW04M LOCK WASHER 8MM $1.00
58 P0604058 BEARING BLOCK LEFT $8.50
59 P6004 BALL BEARING 6004ZZ $2.75
61 P0452Z001 DRIVER BIT TORX T20 $1.00
62 P0452Z011 SPIRAL CUTTERHEAD 6" $384.00
63 PK74M KEY 6 X 6 X 35 $1.00
64 P0452Z002 ***USE T21348*** $14.25
65 P0452Z009 L-WRENCH TORX T20 $1.00
66 PFH35M FLAT HD TORX T20 M6-1 X 15 $1.00
67 PR24M INT RETAINING RING 42MM $1.00
68 P6004 BALL BEARING 6004ZZ $2.75
69 P0604069 BEARING BLOCK RIGHT $7.00
70 P0604070 CUTTERHEAD PULLEY $7.50
71 PW01M FLAT WASHER 8MM $1.00
72 PSB31M ***use Pcap31m*** $1.00
73 PSB148M ***use Pcap148m*** $1.00
74 P0604074 GUARD CLAMP $6.00
75 P0604075 CUTTERHEAD GUARD $21.25
77 P0604077 TORSION SPRING $1.00
78 PRP02M ROLL PIN 3 X 16 $1.00
79 P0604079 SUPPORT $6.00
80 P0604080 TABLE LIP $7.00
81 PW02M FLAT WASHER 5MM $1.00
82 PSB24M ***use Pcap24m*** $1.00
83 P0604083 TABLE LH $109.00
85 P0604085 BUMPER $3.25
86 PW03M FLAT WASHER 6MM $1.00
87 PSB07M ***use Pcap07m*** $1.00
88 P0604088 BASE $188.50
89 P0604089 RIVET $1.00
90 P0604090 SCALE $1.00
91 P0490091 SHORT ADJUSTING SCR $1.00
92 PN02M HEX NUT M10-1.5 $1.00
93 PSS01M SET SCREW M6-1 X 10 $1.00
94 PSS01M SET SCREW M6-1 X 10 $1.00
95 P0490095 LONG ADJUSTING SCR $1.00
96 P0604096 EXTENSION SPRING $1.00
98 P0604098 CHIPBREAKER $3.25
99 PW03M FLAT WASHER 6MM $1.00

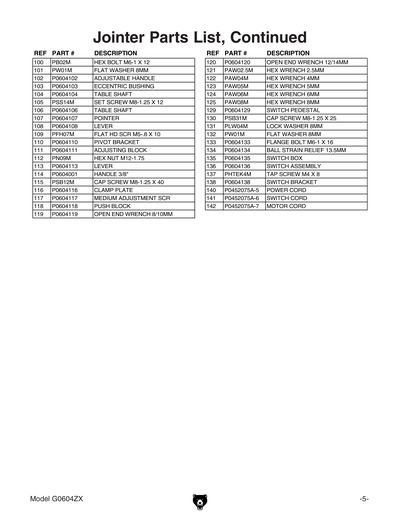

100 PB02M HEX BOLT M6-1 X 12 $1.00
101 PW01M FLAT WASHER 8MM $1.00
102 P0604102 ADJUSTABLE HANDLE $5.25
103 P0604103 ECCENTRIC BUSHING $1.75
104 P0604104 TABLE SHAFT $2.75
105 PSS14M SET SCREW M8-1.25 X 12 $1.00
106 P0604106 TABLE SHAFT $3.25
107 P0604107 POINTER $1.00
108 P0604108 LEVER $7.00
109 PFH07M FLAT HD SCR M5-.8 X 10 $1.00
110 P0604110 PIVOT BRACKET $5.25
111 P0604111 ADJUSTING BLOCK $1.75
112 PN09M HEX NUT M12-1.75 $1.00
113 P0604113 LEVER $7.00
114 P0604001 HANDLE $1.00
115 PSB12M ***use Pcap12m*** $1.00
116 P0604116 CLAMP PLATE $3.25
117 P0604117 MEDIUM ADJUSTMENT SCR $1.00
118 P0604118 PUSH BLOCK $6.00
119 P0604119 OPEN END WRENCH 8/10MM $1.00
120 P0604120 OPEN END WRENCH 12/14MM $1.75
121 PAW02.5M HEX WRENCH 2.5MM $1.00
122 PAW04M HEX WRENCH 4MM $1.00
123 PAW05M HEX WRENCH 5MM $1.00
124 PAW06M HEX WRENCH 6MM $1.00
125 PAW08M HEX WRENCH 8MM $1.00
129 P0604129 SWITCH PEDESTAL $16.00
130 PSB31M ***use Pcap31m*** $1.00
131 PLW04M LOCK WASHER 8MM $1.00
132 PW01M FLAT WASHER 8MM $1.00
133 P0604133 ***use Pfb17m*** $1.00
134 P0604134 BALL STRAIN RELIEF 13.5MM $1.00
135 P0604135 SWITCH BOX $15.50
136 P0604136 SWITCH ASSEMBLY NHD 120V/35A 240/20A $28.00
137 PHTEK4M TAP SCREW M4 X 8 $1.00
138 P0604138 SWITCH BRACKET $1.00
Ref # Part # Description Price Qty
