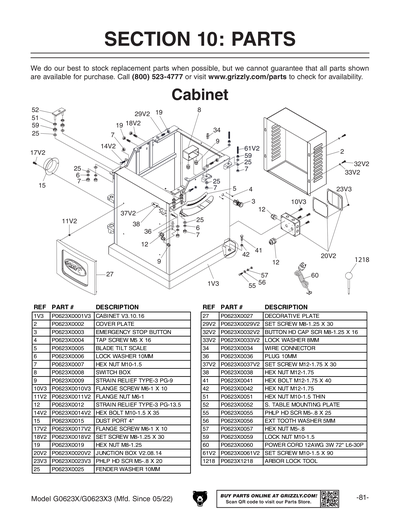

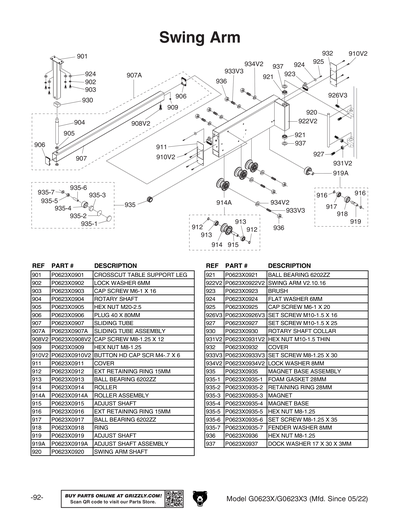

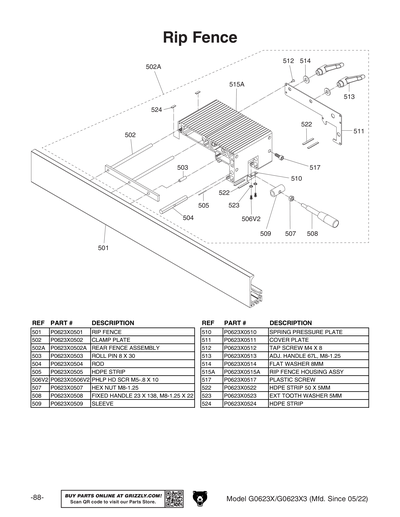

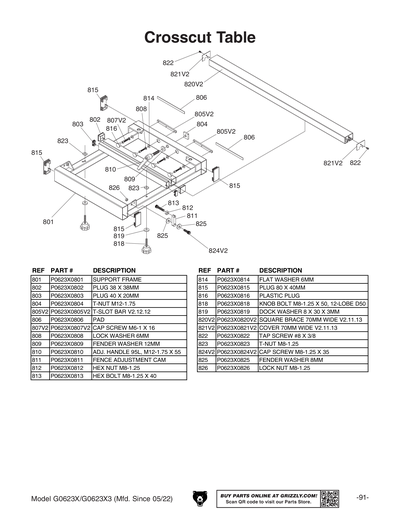

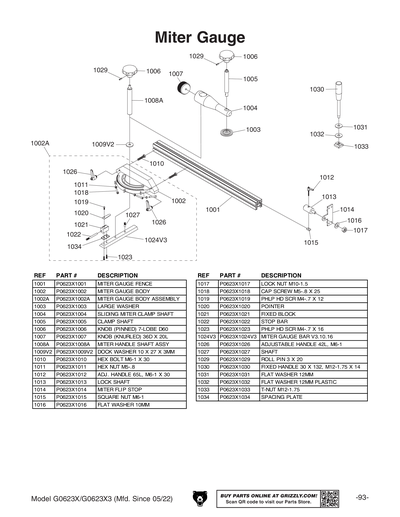

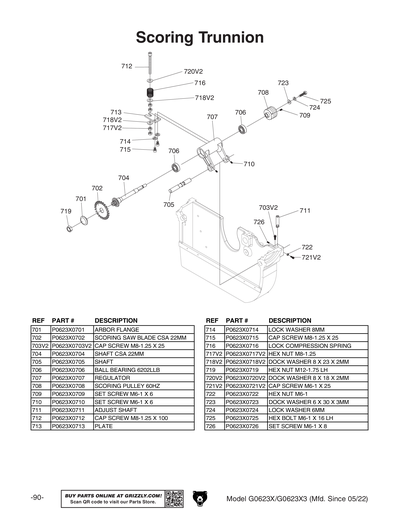

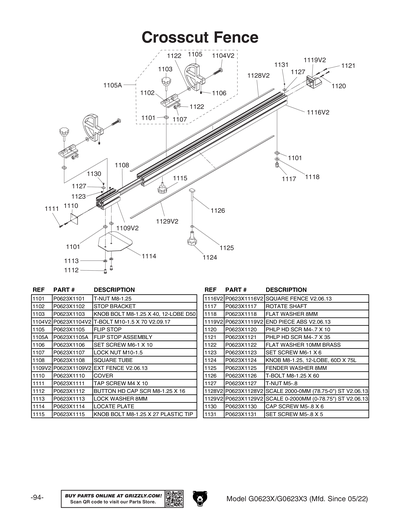

G0623X3 CABINET DIAGRAM

While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.


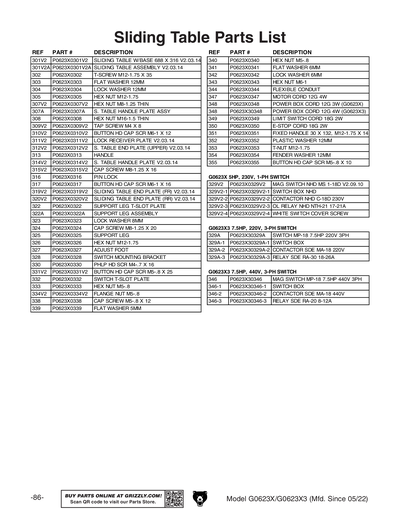

Ref #	Part #	Description	Price	Qty

1	P0623X0001	CABINET	$897.00
2	P0623X0002	COVER PLATE	$122.50
3	P0623X0003	EMERGENCY STOP BUTTON	$16.25
4	PHTEK19M	TAP SCREW M5 X 16	$1.00
5	P0623X0005	BLADE TILT SCALE	$5.25
8	P0623X0008	SWITCH BOX	$2.50
9	P0623X0009	STRAIN RELIEF	$3.00
10	PSBS05M	*use Pbhs05m*	$1.00
11	PN01M	HEX NUT M6-1	$1.00
12	P0623X0012	STRAIN RELIEF M20	$3.00
13	PN02M	HEX NUT M10-1.5	$1.00
14	PSS73M	SET SCREW M10-1.5 X 30	$1.00
15	P0623X0015	DUST PORT 4"	$6.50
16	PLW03M	LOCK WASHER 6MM	$1.00
17	PS11M	PHLP HD SCR M6-1 X 16	$1.00
18	PSS21M	SET SCREW M8-1.25 X 25	$1.00
19	PN03M	HEX NUT M8-1.25	$1.00
20	P0623X0020	POWER BOX	$30.50
21	P0623X0021	TERMINAL	$4.25
22	PS05M	Phlp Hd Scr M5-.8 X 8	$1.00
23	PSBS06M	*use Pbhs06m*	$1.00
24	PB01M	HEX BOLT M10-1.5 X 30	$1.00
25	P0623X0025	*use Pwf10m*	$1.00
26	PLW06M	LOCK WASHER 10MM	$1.00
27	P0623X0027	DECORATIVE PLATE	$96.75
28	P0623X0028	PLATE SUPPORT	$29.50
29	PSS74M	SET SCREW M8-1.25 X 35	$1.00
32	PSB11M	*use Pcap11m*	$1.00
33	PW01M	FLAT WASHER 8MM	$1.00
34	P0623X0034	WIRE CONNECTOR	$3.50

Ref #	Part #	Description	Price	Qty
