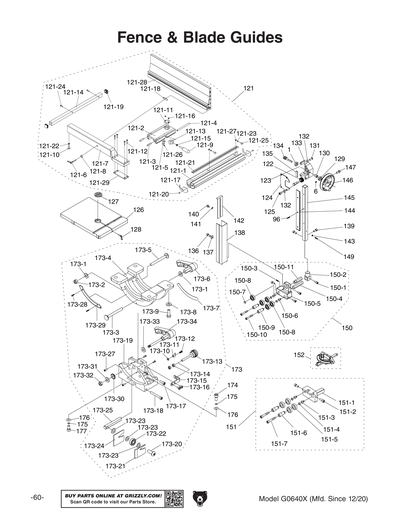

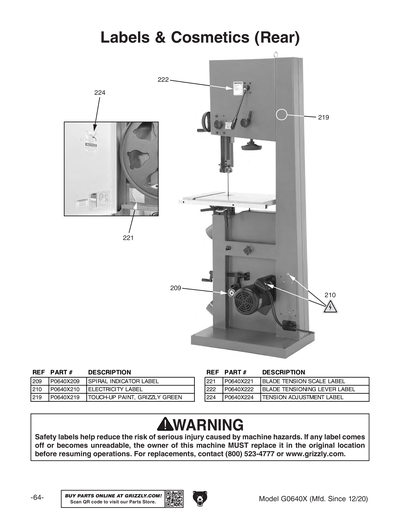

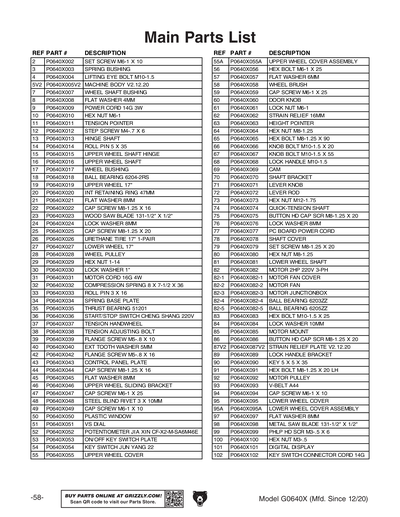

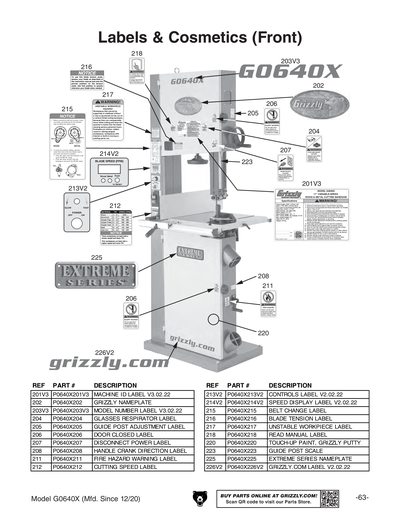

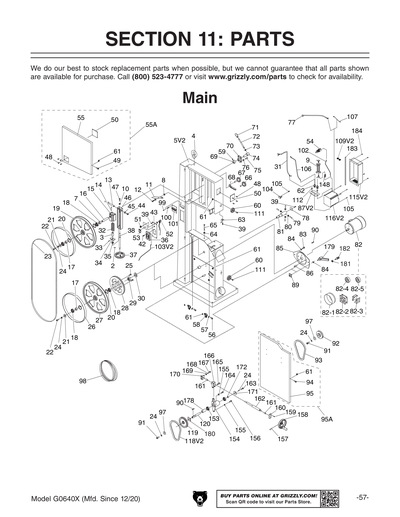

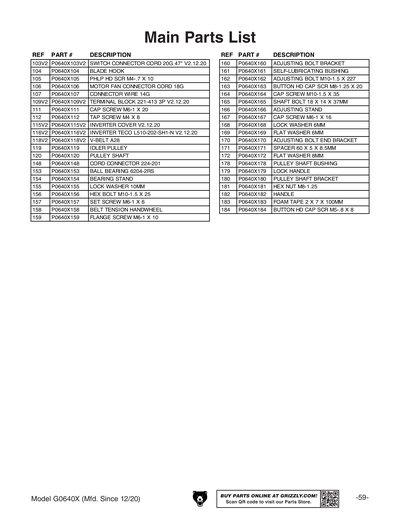

G0640X FENCE AND GUIDES DIAGRAM

While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.


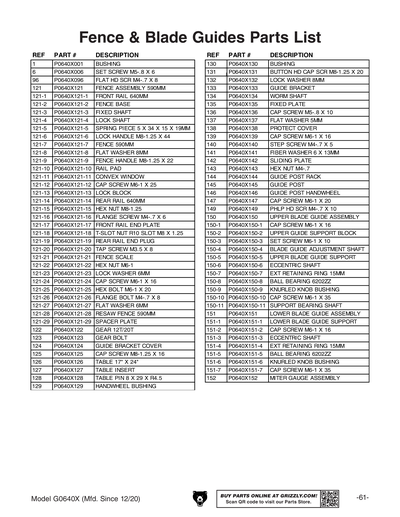

Ref #	Part #	Description	Price	Qty

1	P0640X001	BUSHING	$1.25
6	PSS26M	SET SCREW M5-.8 X 6	$1.00
96	PFH31M	FLAT HD SCR M4-.7 X 8	$1.00
121	P0640X121	Fence Set 590mm	$183.00
121-1	P0640X121-1	Rail Front 640mm	$50.25
121-3	P0640X121-3	Fixed Shaft	$5.25
121-4	P0640X121-4	Shaft	$3.00
121-5	P0640X121-5	Spring Piece 5 X 34 X 15 X 19mm	$1.00
121-6	P0640X121-6	Lock Handle M8 X 44	$7.00
121-7	P0640X121-7	Fence 590mm	$56.00
121-8	PW01M	FLAT WASHER 8MM	$1.00
121-9	P0640X121-9	Fence Handle M8-1.25 X 22	$2.50
122	P0640X122	Gear 12t/20t	$3.00
123	P0640X123	Fixed Bolt	$3.50
124	P0640X124	Cover	$3.00
125	PSB11M	*use Pcap11m*	$1.00
126	P0640X126	Table 17 X 24"	$364.75
127	P0640X127	*USE P0513X127*	$1.00
128	P0640X128	Table Pin 8 X 29 X R4.5	$3.50
129	P0640X129	Locate Bushing	$3.00
130	P0640X130	Bushing	$1.00
131	PSBS22M	*use Pbhs22m*	$1.00
132	PLW04M	LOCK WASHER 8MM	$1.00
133	P0640X133	Guide Bracket	$24.25
134	P0640X134	Worm Cylinder	$10.50
135	P0640X135	Fixed Plate	$1.00
136	PSB50M	*use Pcap50m*	$1.00
137	PW02M	FLAT WASHER 5MM	$1.00
138	P0640X138	Protect Cover	$23.75
139	PSB01M	*use Pcap01m*	$1.00
140	P0640X140	Step Screw M4 X 5	$1.00
141	P0640X141	Fiber Washer 6 X 13	$1.00
142	P0640X142	Sliding Plate	$4.75
143	PN04M	HEX NUT M4-.7	$1.00
144	P0640X144	Rack	$6.50
145	P0640X145	Guide Hose Upper C	$16.75
146	P0640X146	Handwheel	$12.75
147	PSB02M	*use Pcap02m*	$1.00
149	PS38M	PHLP HD SCR M4-.7 X 10	$1.00
150	P0640X150	Upper Guide Assy	$66.75
150-2	P0640X150-2	Guide Support Block Upper	$7.00
150-3	PSS01M	SET SCREW M6-1 X 10	$1.25
150-4	P0640X150-4	Adjust Bar	$3.50
150-5	P0640X150-5	Upper Blade Guide Support	$10.00
150-6	P0640X150-6	Eccentric Shaft	$4.75
150-7	PR05M	EXT RETAINING RING 15MM	$1.00
150-8	P6202	*SEE EXT DESCRIPTION*	$2.25
150-9	P0640X150-9	Handle Bushing	$4.25
151	P0640X151	Guide Lower Assy	$46.75
151-1	P0640X151-1	Blade Lower Guide Support	$9.25
151-3	P0640X151-3	Eccentric Shaft	$4.75
151-6	P0640X151-6	Handle Bushing	$4.25
151-7	PSB48M	*use Pcap48m*	$1.00
152	P0640X152	Miter Gauge Assy	$49.50

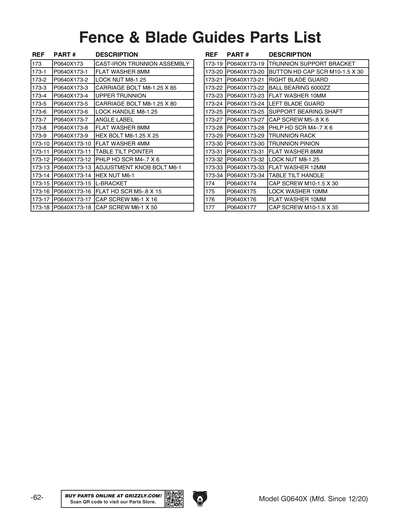

173	P0640X173	Cast Iron Trunnion Assy	$253.75
173-2	PLN04M	LOCK NUT M8-1.25	$1.25
173-3	PCB10M	CARRIAGE BOLT M8-1.25 X 85	$1.00
173-4	P0640X173-4	Trunnion Upper	$55.50
173-5	PCB23M	CARRIAGE BOLT M8-1.25 X 80	$1.25
173-6	P0640X173-6	Lock Handle M8-1.25	$7.00
173-7	P0640X173-7	Angle Label	$1.25
173-9	PB07M	HEX BOLT M8-1.25 X 25	$1.00
174	PSB72M	*use Pcap72m*	$1.00
175	PLW06M	LOCK WASHER 10MM	$1.00
176	PW04M	FLAT WASHER 10MM	$1.00
177	PSB84M	*use Pcap84m*	$1.00

Ref #	Part #	Description	Price	Qty
