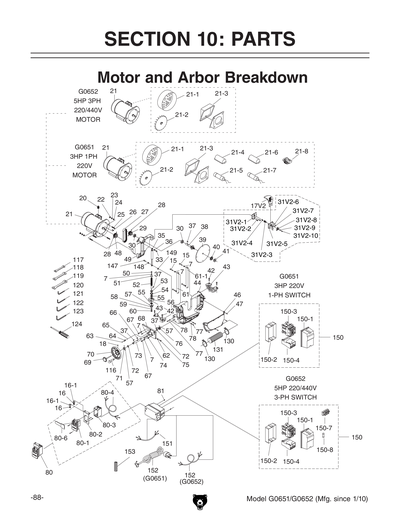

G0651 MOTOR ARBOR DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

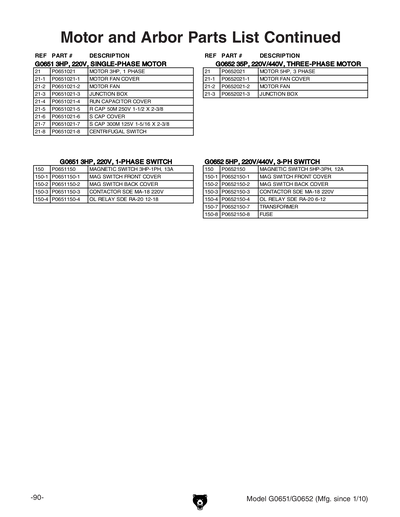

Ref # Part # Description Price Qty
21 P0652021 Motor 5hp 3ph $350.00
21-1 P0652021-1 MOTOR FAN COVER $4.50
21-2 P0652021-2 MOTOR FAN $5.00
21-3 P0652021-3 JUNCTION BOX $6.50
150 P0652150 ***USE G8295*** $120.00
150-1 P0652150-1 MAG SWITCH FRONT COVER $10.50
150-2 P0652150-2 MAG SWITCH BACK COVER $2.50
150-3 P0652150-3 CONTACTOR SDE MA-18 220V $44.00
150-4 P0652150-4 OL RELAY SDE RA-20 7-17 $20.00
150-7 P0652150-7 TRANSFORMER $24.00
150-8 P0652150-8 FUSE $4.50
Ref # Part # Description Price Qty
