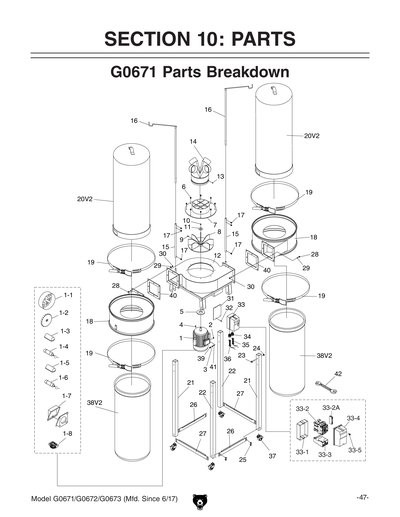

G0671 MAIN DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

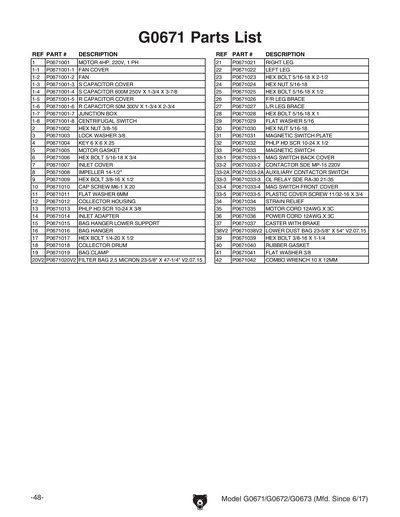

Ref # Part # Description Price Qty
1 P0671001 MOTOR 4HP 220V 1 PH $442.00
1-1 P0671001-1 FAN COVER $45.00
1-2 P0671001-2 FAN $15.00
1-3 P0671001-3 S CAPACITOR COVER $9.00
1-4 P0671001-4 S CAPACITOR 600M 250V X 1-3/4 X 3-7/8 $36.00
1-5 P0671001-5 R CAPACITOR COVER $9.00
1-6 P0671001-6 R CAPACITOR 50M 300V X 1-3/4 X 2-3/4 $103.13
1-7 P0671001-7 JUNCTION BOX $369.14
1-8 P0671001-8 CENTRIFUGAL SWITCH $335.48
5 P0671005 MOTOR GASKET $133.93
7 P0671007 INLET COVER $384.98
8 P0671008 IMPELLER 14-1/2" $327.38
12 P0671012 COLLECTOR HOUSING $100.38
14 P0671014 INLET ADAPTER $409.10
15 P0671015 BAG HANGER LOWER SUPPORT $227.28
16 P0671016 BAG HANGER $74.24
18 P0671018 COLLECTOR DRUM $116.55
19 P0671019 BAG CLAMP $20.50
20 P0671020 Filter Bag 23-5/8 X 47-1/4" 30-micron $65.00
21 P0671021 RIGHT LEG $8.75
22 P0671022 LEFT LEG $8.75
26 P0671026 F/R LEG BRACE $78.93
27 P0671027 L/R LEG BRACE $103.79
31 P0671031 Mag Switch Plate $98.84
33 P0671033 Mag Switch $73.26
33-1 P0671033-1 MAG SWITCH BACK COVER $103.68
33-2 P0671033-2 CONTACTOR SDE MP-15 220V $131.58
33-3 P0671033-3 OL RELAY SDE RA-30 21-35 $180.33
33-4 P0671033-4 MAG SWITCH FRONT COVER $133.33
33-5 P0671033-5 PLASTIC COVER SCREW 11/32-16 X 3/4 $234.83
34 P0671034 STRAIN RELIEF $247.33
35 P0671035 MOTOR CORD 12AWG X 3C $234.83
36 P0671036 POWER CORD 12AWG X 3C $128.58
37 P0671037 Caster W/brake $134.08
38 P0671038 LOWER DUST BAG 23-5/8" X 47-1/4" $45.00
40 P0671040 RUBBER GASKET $233.33
41 P0671040 RUBBER GASKET $233.33

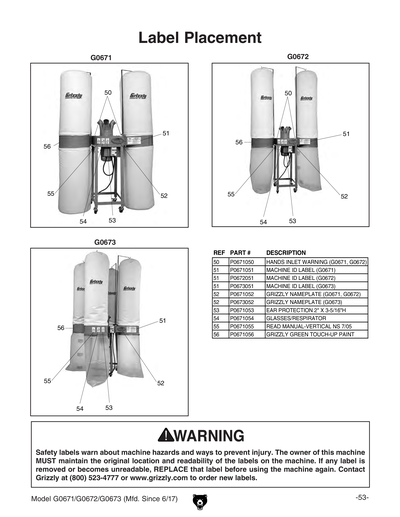

50 P0671050 HANDS INLET WARNING $158.08
51 P0671051 MACHINE ID LABEL $8.00
