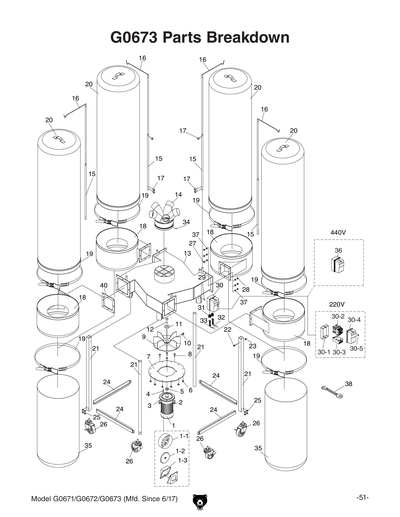

G0673 MAIN DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

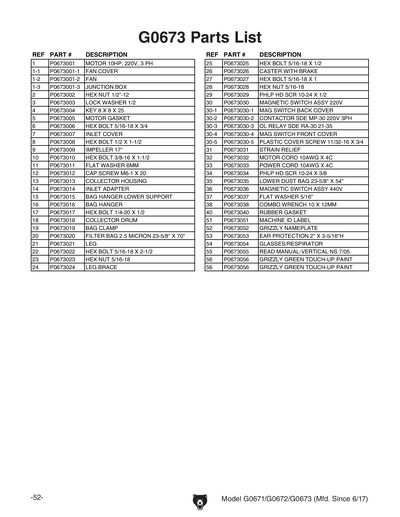

Ref # Part # Description Price Qty
1 P0673001 Motor 10hp 3ph 220/440v 60hz $694.00
1-1 P0673001-1 FAN COVER $45.50
1-2 P0673001-2 FAN $16.00
1-3 P0673001-3 JUNCTION BOX $9.00
5 P0673005 MOTOR GASKET $4.50
7 P0673007 INLET COVER $83.50
8 P0673008 ***use Pb41*** $1.50
9 P0673009 IMPELLER 17" $267.00
13 P0673013 COLLECTOR HOUSING $71.50
14 P0673014 INLET ADAPTER $111.00
21 P0673021 LEG $51.50
24 P0673024 LEG BRACE $36.00
30 P0673030 Mag Switch $110.50
30-1 P0673030-1 MAG SWITCH BACK COVER $23.00
30-2 P0673030-2 CONTACTOR SDE MP-30 220V 3PH $57.00
30-4 P0673030-4 MAG SWITCH FRONT COVER $16.00
31 P0673031 STRAIN RELIEF $3.50
32 P0673032 MOTOR CORD 10AWG X 4C $24.50
33 P0673033 POWER CORD 10AWG X 4C $77.50

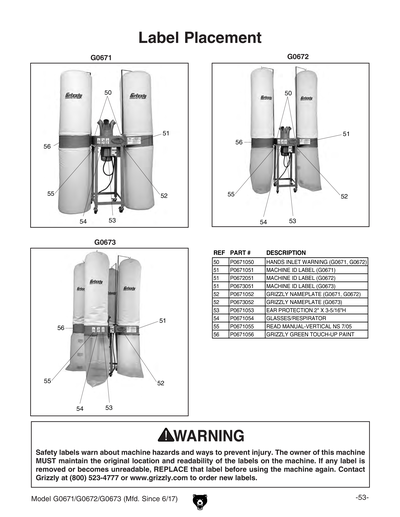

51 P0673051 MACHINE ID LABEL $8.00
