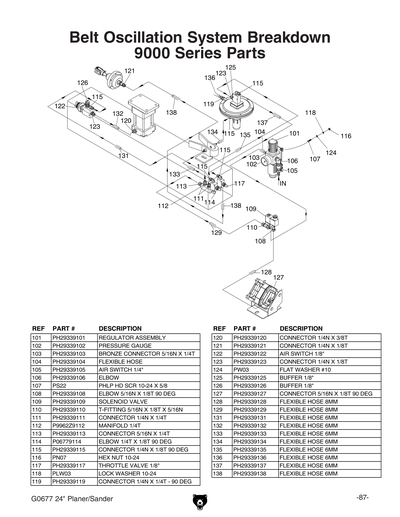

G0677 BELT OSCILLATION DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.
Ref # Part # Description Price Qty
101 PH29339101 FILTER CUP $114.75
102 PH29339102 REGULATOR W/GAUGE $17.75
103 PH29339103 BRONZE CONNECTOR $3.75
104 PH29339104 FLEXIBLE HOSE $3.75
105 PH29339105 AIR SWITCH $14.25
106 PH29339106 ELBOW $3.75
107 PS22 Phlp Hd Scr 10-24 X 5/8 $1.00
108 PH29339108 Elbow 5/16n X 1/8t 90deg $3.75
109 PH29339109 SOLENOID VALVE $70.25
110 PH29339110 T-FITTING 5/16N X 5/16N X 1/8T $3.75
111 PH29339111 CONNECTOR $3.75
112 P9962Z9112 MULTIPLE HOSE CONNECTOR $7.25
113 PH29339113 CONNECTOR 5/16N X1/8T $3.75
114 P06779114 Elbow 1/4 X 1/8" 90deg $3.50
115 PH29339115 Connector 1/4n X 1/8t 90deg $3.75
116 PN07 HEX NUT 10-24 $1.00
117 PH29339117 THROTTLE VALVE $31.75
118 PLW03 LOCK WASHER 3/16 $0.75
119 PH29339119 CONNECTOR 1/4N X1/8T $3.75
120 PH29339120 CONNECTOR 3/8N X1/8T $3.75
121 PH29339121 CONNECTOR 1/4N X1/8T $3.75
122 PH29339122 AIR SWITCH $56.25
123 PH29339123 CONNECTOR 1/4N X1/8T $3.75
124 PW03 FLAT WASHER #10 $1.00
125 PH29339125 BUFFER $7.25
126 PH29339126 ***USE PH29339112*** $5.00
127 PH29339127 Connector 5/16n X 1/8t 90deg $3.75
128 PH29339128 Flexible Hose 8mm $3.75
129 PH29339129 Flexible Hose 6mm $3.75
131 PH29339131 Flexible Hose 6mm $3.75
132 PH29339132 Flexible Hose 6mm $3.75
133 PH29339133 Flexible Hose 6mm $3.75
134 PH29339134 Flexible Hose 6mm $3.75
135 PH29339135 Flexible Hose 6mm $3.75
136 PH29339136 Flexible Hose 6mm $3.75
137 PH29339137 Flexible Hose 6mm $3.75
138 PH29339138 Flexible Hose 6mm $3.75
