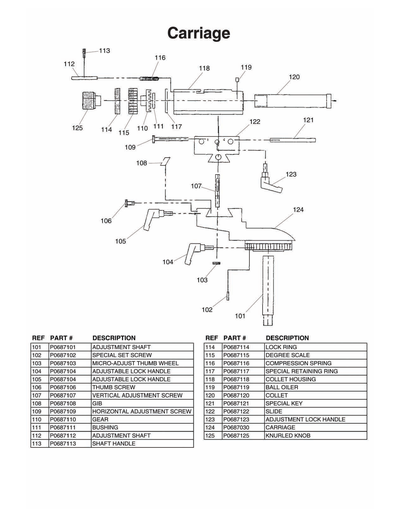

G0687 CARRIAGE DIAGRAM


Ref # Part # Description Price Qty
101 P0687101 ADJUSTMENT SHAFT $14.00
102 P0687102 CARRIAGE SET SCREW M4 X 10L $5.50
103 P0687103 MICRO ADJUSTING THUMB WHEEL $16.50
104 P0687104 ADJUSTMENT LOCK HANDLE $16.50
106 P0687106 THUMB SCREW M4 X 20 $10.50
107 P0687107 VERTICAL ADJUSTING SCREW M4 $25.00
108 P0687108 GIB $16.50
109 P0687109 HORIZ ADJ SCR M6 P1.25 $12.50
110 P0687110 GEAR $83.00
111 P0687111 BUSHING $20.00
112 P0687112 ADJUSTMENT SHAFT $18.00
113 P0687113 SHAFT HANDLE $5.50
114 P0687114 LOCK RING $69.50
115 P0687115 DEGREE SCALE $93.50
116 P0687116 COMPRESSION SPRING M7 X 25L $5.50
117 P0687117 COLLET HOUSING RETAINING RING $25.00
118 P0687118 COLLET HOUSING $310.50
119 P0687119 BALL OILER 3/16OC-110 $5.50
120 P0687120 COLLET $248.50
121 P0687121 SLIDE KEY $5.50
122 P0687122 SLIDE $134.50
123 P0687123 ADJUSTMENT LOCK HANDLE $15.75
125 P0687125 KNURLED KNOB $93.50
Ref # Part # Description Price Qty
