Enter the quantity next to the part you are ordering and press the "Add To Cart" button. If you cannot locate your part below, click on the appropriate diagram at the top of the page or contact our tech support department at techsupport@grizzly.com or 570-546-9663.

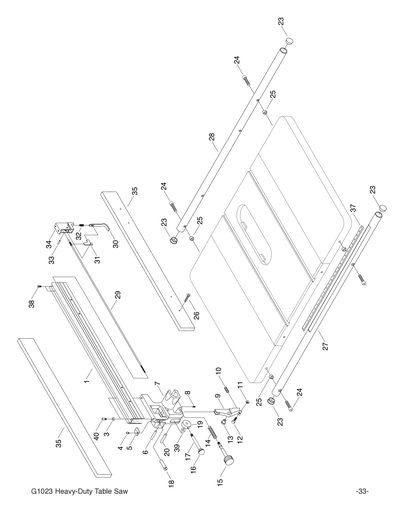

G1023 FENCE DIAGRAM


Ref #	Part #	Description	Price	Qty

1	P1022Z064	FENCE	$56.00
2	PFH08M	FLAT HD SCR M8-1.25 X 12	$1.00
3	PW01M	FLAT WASHER 8MM	$1.00
4	PS05M	PHLP HD SCR M5-.8 X 8	$1.00
5	P1022Z037	WIDTH POINTER	$6.25
6	P1022042	SHAFT FOR CLAMP	$1.00
7	P1022Z039	FRONT CLAMP	$39.50
8	PSS03	SET SCREW 1/4-20 X 3/8	$1.00
9	P1022045	CLAMP SHOE	$5.25
11	PN02	HEX NUT 5/16-18	$1.00
12	PB03	HEX BOLT 5/16-18 X 1	$1.00
13	P1022047	SHAFT BUSHING	$1.00
14	P1022051	SPRING 16 X 65 X 9	$1.00
18	P1022038	FENCE ADJUSTER	$2.00
19	P1022040	ECCENTRIC	$3.75
23	PSS03M	SET SCREW M6-1 X 8	$1.00
25	PS01M	PHLP HD SCR M4-.7 X 18	$1.00
29	P1022062	LOCK LINK	$2.25
30	P1022060	CLAMP HOOK	$1.00
31	P1022061	LEVER	$4.00
32	P1022059	SPRING 10 X 25 X 8	$1.00
37	G3121	Self-Stick Measuring Tape - 6' Left to Right Reading	$8.95
38	PFB08M	FLANGE BOLT M5-.8 X 10	$1.00
