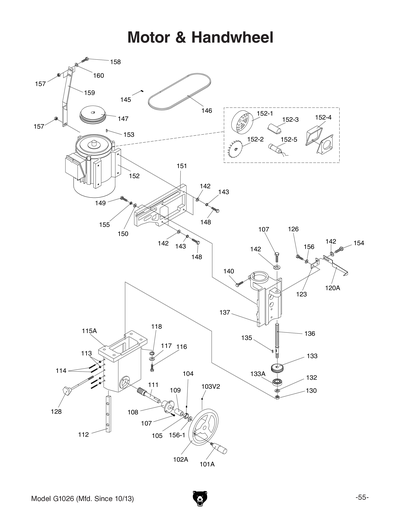

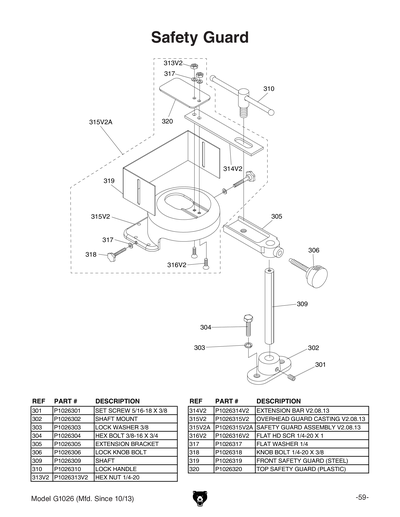

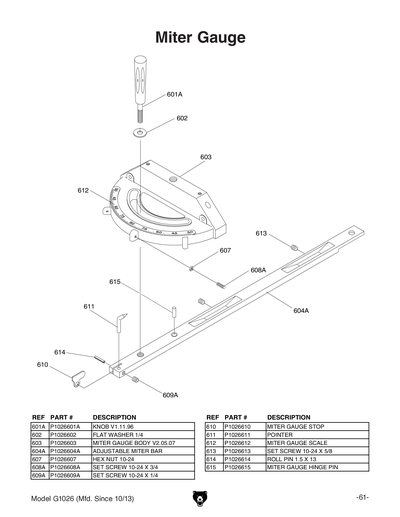

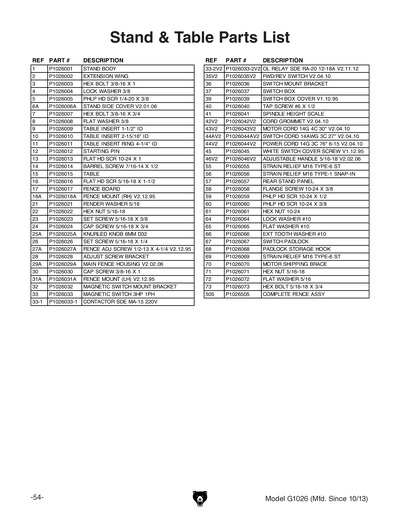

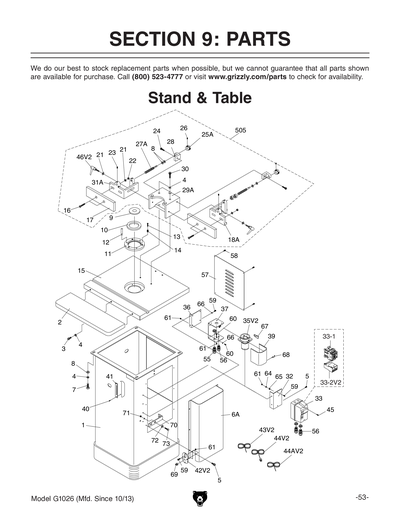

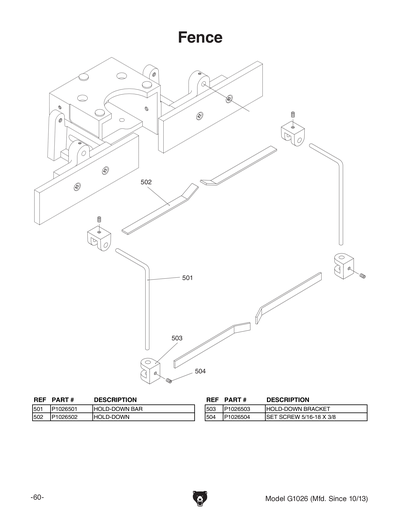

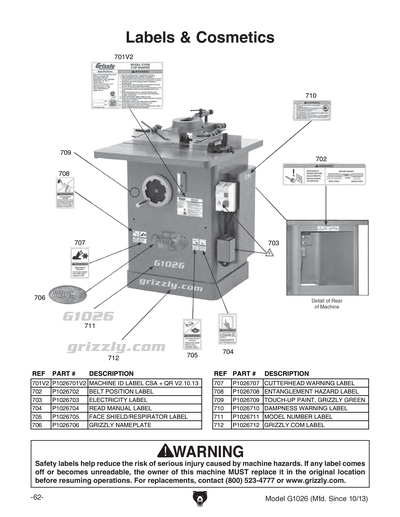

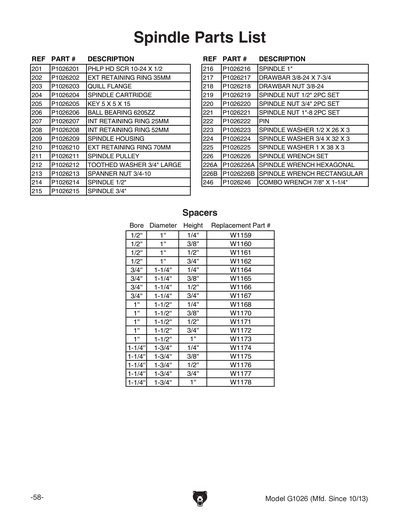

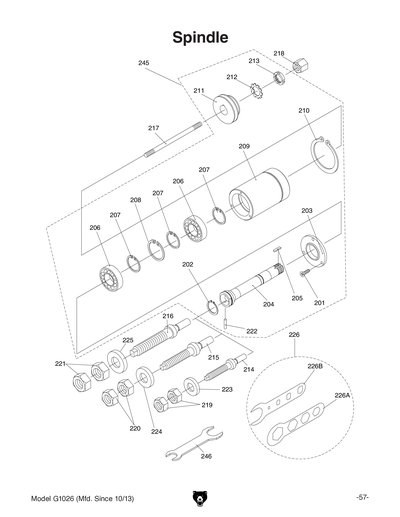

G1026 ELEVATION MOTOR DIAGRAM

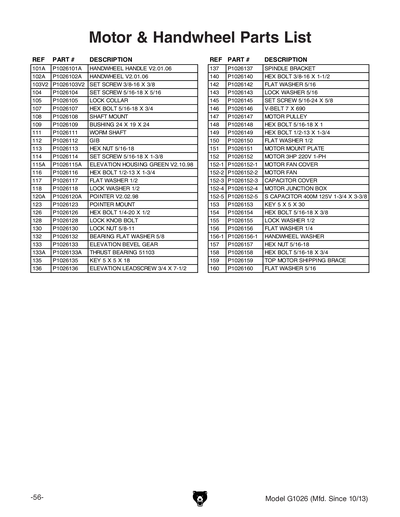

Ref # Part # Description Price Qty
PRP24M ROLL PIN 5 X 16 $1.50
101 P1026101 HANDLE V1.12.95 $1.00
102 P1026102 HAND WHEEL V1.12.95 $9.50
103 PSS17 SET SCREW 5/16-18 X 5/16 $1.00
105 P1026105 SLEEVE $1.50
107 PB07 HEX BOLT 5/16-18 X 3/4 $1.00
108 P1026108 SHAFT MOUNT $8.25
111 P1026111 WORM SHAFT $7.75
112 P1026112 GIB $6.00
113 PN02 HEX NUT 5/16"-18 $1.00
114 PSS14 SET SCREW 5/16-18 X 1 3/8 $1.00
115 P1026115 ELEVATION HOUSING BLACK V1.12.95 $113.75
116 PB56 HEX BOLT 1/2-13 X 1-3/4 $1.00
117 PW01 FLAT WASHER 1/2 $1.00
120 P1026120 POINTER SHAFT W/POINTER V1.12.95 $1.00
123 P1026123 POINTER MOUNT $5.00
126 PB19 HEX BOLT 1/4-20 X 1/2 $1.00
128 P1026128 KNOB W/ 129 SHAFT $3.25
130 PLN07 LOCK NUT 5/8-11 $1.00
133 P1026133 GEAR $10.50
133A P51103 THRUST BEARING 51103 $4.00
135 PK14M KEY 5 X 5 X 18 $1.00
136 P1026136 ELEVATION LEAD SCREW 3/4 X 194 $6.75
137 P1026137 CARTRIDGE SLIDE $60.00
140 PB16 HEX BOLT 3/8-16 X 1-1/2 $1.00
141 PLW04 LOCK WASHER 3/8 $1.00
142 PW07 FLAT WASHER 5/16 $1.00
143 PLW01 LOCK WASHER 5/16 $1.00
145 PSS23 SET SCREW 5/16-24 X 5/8 $1.00
146 P1026146 V-BELT 7 X 690 $30.00
147 P1026147 MOTOR PULLEY $25.00
148 PB03 HEX BOLT 5/16-18 X 1 $1.00
149 PB56 HEX BOLT 1/2-13 X 1-3/4 $1.00
151 P1026151 MOTOR MOUNT PLATE $37.50
152 P1026152 MOTOR 3HP 220V 1PH $232.81
153 PK15M KEY 5 X 5 X 35 $1.00
154 PB09 HEX BOLT 5/16-18 X 1/2 $1.00
155 PW14 FLAT WASHER 5/8 $1.00
156 PW06 FLAT WASHER 1/4 $1.00
