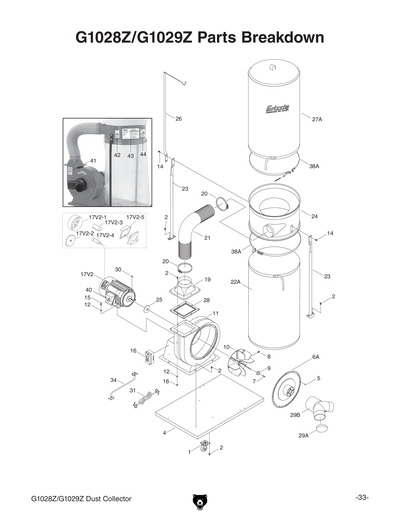

G1028Z MAIN DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

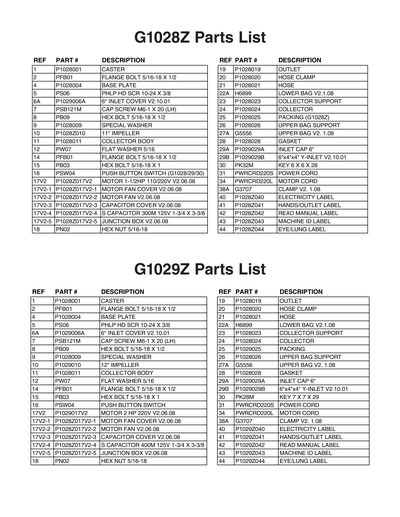

Ref # Part # Description Price Qty
1 P1028001 CASTER $7.25
4 P1028004 BASE PLATE $47.00
5 PS06 PHLP HD SCR 10-24 X 3/8 $1.00
6 P1029006A Inlet Cover 6in V2.10.01 $18.75
7 PSB121M ***use Pcap121m*** $1.00
8 PB09 HEX BOLT 5/16-18 X 1/2 $1.00
9 P1028009 SPECIAL WASHER $1.00
10 P1028010 TURBO FAN $70.75
10 P1028Z010 IMPELLER 11" $99.50
11 P1028011 COLLECTOR BODY $137.50
12 PW07 FLAT WASHER 5/16 $1.25
14 PFB01 FLANGE BOLT 5/16-18 X 1/2 $1.00
15 PB03 HEX BOLT 5/16-18 X 1 $1.00
16 PSW04 Push Button Switch $25.00
17 P1028Z017 Motor 1-1/2hp 1ph 110/220v $178.00
17-1 P1028Z017-1 MOTOR FAN COVER $9.25
17-2 P1028Z017-2 MOTOR FAN $3.00
17-3 P1028Z017-3 CAPACITOR COVER $3.00
17-5 P1028Z017-5 JUNCTION BOX $4.75
18 PN02 HEX NUT 5/16-18 $1.00
19 P1028019 OUTLET $14.00
20 P1028020 HOSE CLAMP $2.00
21 P1028021 HOSE $18.50
22 G4996 Lower Bag for Models G1028-29, G1030 $12.95
22A H6899 Bottom Bag For G0548 & G0562 $5.95
23 P1028023 COLLECTOR SUPPORT $10.00
24 P1028024 COLLECTOR $97.50
25 P1028025 PACKING $1.00
26 P1028026 UPPER BAG SUPPORT $14.00
27 G1027 Upper Bag for Models G1028-29, G1030 $12.95
27A G5556 2.5 Micron Dust Bag - Large Bag for G1028Z, G1029 & G1030 $24.95
28 P1028028 GASKET $4.50
29A P1029029A INLET CAP $3.00
29B P1029029B Y-INLET 6 X 4 X 4" V2.10.01 $9.75
30 PK32M KEY 6 X 6 X 28 $1.00
31 PWRCRD220S Power Cord 12awg X 3c 36"l $5.00
34 PWRCRD220L Power Cord 12awg X 3c 86"l $24.00
35 P1028035 Clamp For Bags Single $9.75
38 P1028Z038 QUICK RELEASE CLAMP $14.00
38A G3707 68" Band Clamp For G1028Z, G1029, & G1030 $8.95
40 P1028Z040 ELECTRICITY LABEL $1.00
41 P1028Z041 HANDS/OUTLET LABEL $1.00
42 P1028Z042 READ MANUAL LABEL $1.00
43 P1028Z043 MACHINE ID LABEL $2.00
44 P1028Z044 EYE/LUNG LABEL $1.00
