Enter the quantity next to the part you are ordering and press the "Add To Cart" button. If you cannot locate your part below, click on the appropriate diagram at the top of the page or contact our tech support department at techsupport@grizzly.com or 570-546-9663.

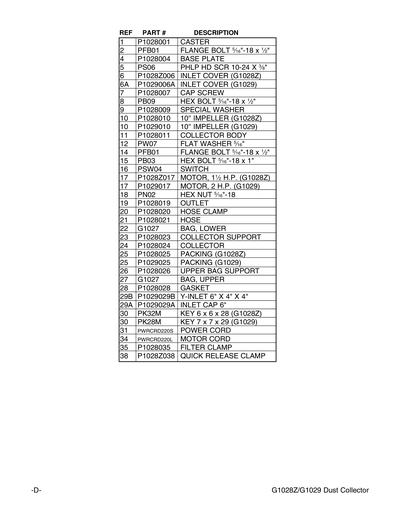

G1029 MAIN DIAGRAM


Ref #	Part #	Description	Price	Qty

1	P1028001	CASTER	$7.75
4	P1028004	BASE PLATE	$54.00
5	PS06	PHLP HD SCR 10-24 X 3/8	$1.00
6A	P1029006A	INLET COVER 6" V2.10.01	$18.75
8	PB09	HEX BOLT 5/16-18 X 1/2	$1.00
9	P1028009	IMPELLER WASHER 1-1/2" W/ 1/4" HOLE	$1.00
11	P1028011	COLLECTOR BODY	$155.75
12	PW07	FLAT WASHER 5/16	$1.25
14	PFB01	FLANGE BOLT 5/16-18 X 1/2	$1.00
15	PB03	HEX BOLT 5/16-18 X 1	$1.00
16	PSW04	PUSH BUTTON SWITCH	$22.25
17	P1029017	MOTOR 2HP 1PH 220V	$226.50
18	PN02	HEX NUT 5/16-18	$1.00
19	P1028019	OUTLET	$13.25
20	P1028020	HOSE CLAMP	$2.25
21	P1028021	HOSE	$13.00
22	G1027	Upper Bag for Models G1028-29, G1030	$14.50
23	P1028023	COLLECTOR SUPPORT	$10.25
24	P1028024	COLLECTOR	$112.00
25	P1029025	PACKING	$1.25
26	P1028026	UPPER BAG SUPPORT	$10.25
28	P1028028	GASKET	$5.25
29A	P1029029A	INLET CAP	$10.25
29B	P1029029B	Y-INLET 6 X 4 X 4" V2.10.01	$10.25
30	PK28M	KEY 7 X 7 X 29	$1.00
31	PWRCRD220S	POWER CORD 12G X 3W 36"L	$5.75
34	PWRCRD220L	POWER CORD 12G X 3W 86"L	$27.50
35	P1028035	CLAMP FOR BAGS SINGLE	$10.75
38	P1028Z038	QUICK RELEASE CLAMP	$16.00
