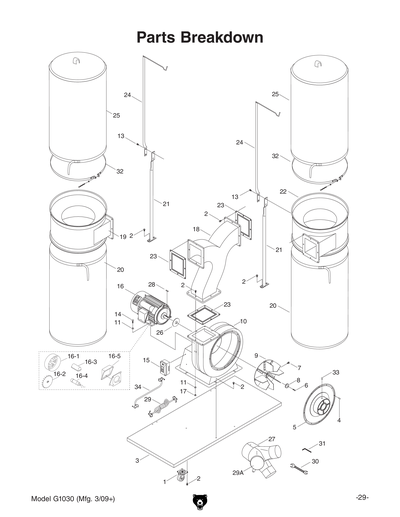

G1030 MAIN DIAGRAM

While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

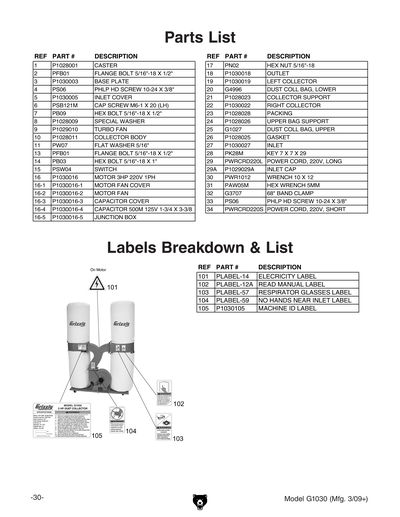

Ref #	Part #	Description	Price	Qty

1	P1028001	CASTER	$7.25
3	P1030003	BASE PLATE	$53.75
5	P1030005	INLET COVER	$22.00
6	P1028007	*USE PSB121M*	$1.00
7	PB09	HEX BOLT 5/16-18 X 1/2	$1.00
8	P1028009	SPECIAL WASHER	$1.00
9	P1029010	*USE P1029Z2010*	$101.75
10	P1028011	COLLECTOR BODY	$137.50
11	PW07	FLAT WASHER 5/16	$1.25
13	PFB01	FLANGE BOLT 5/16-18 X 1/2	$1.00
14	PB03	HEX BOLT 5/16-18 X 1	$1.00
15	PSW04	Push Button Switch	$25.00
16	P1030016	Motor 3hp 1ph 220v	$233.84
17	PN02	HEX NUT 5/16-18	$1.00
18	P1030018	OUTLET	$86.75
19	P1030019	COLLECTOR LEFT	$60.75
20	G4996	Lower Bag for Models G1028-29, G1030	$12.95
21	P1028023	COLLECTOR SUPPORT	$10.00
22	P1030022	Colletor Right	$60.75
23	P1028028	GASKET	$4.50
24	P1028026	UPPER BAG SUPPORT	$14.00
25	G1027	Upper Bag for Models G1028-29, G1030	$12.95
26	P1028025	PACKING	$1.00
27	P1030027	INLET 6 X 4 X 4 X 4"	$56.75
28	PK28M	KEY 7 X 7 X 30	$1.00
29	PWRCRD220L	Power Cord 12awg X 3c 86"l	$24.00
29A	P1029029A	INLET CAP	$3.00
30	PWR1012	Wrench 10/12mm	$2.00
31	PAW05M	Wrench Hex 5mm	$1.00
32	G3707	68" Band Clamp For G1028Z, G1029, & G1030	$8.95
33	PS06	PHLP HD SCR 10-24 X 3/8	$1.00
34	PWRCRD220S	Power Cord 12awg X 3c 36"l	$5.00

Ref #	Part #	Description	Price	Qty
