G1036 MAIN DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

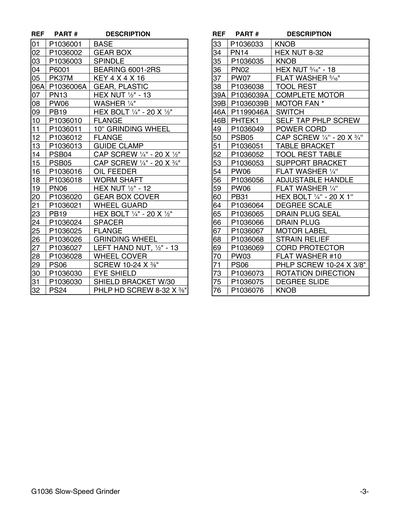

Ref # Part # Description Price Qty
1 P1036001 BASE $58.50
2 P1036002 GEAR BOX $19.50
3 P1036003 SPINDLE $8.25
4 P6001 BALL BEARING 6001ZZ $1.75
5 PK37M KEY 4 X 4 X 16 $1.00
6A P1036006A WORM GEAR, PLASTIC $5.00
7 PN13 ***USE PN06*** $0.75
8 PW06 FLAT WASHER 1/4 $1.00
9 PB19 HEX BOLT 1/4-20 X 1/2 $1.00
10 P1036010 FLANGE $1.00
11 P1036011 GRINDING WHEEL 10" $70.25
12 P1036012 FLANGE $1.50
13 P1036013 GUIDE CLAMP $2.00
14 PSB04 ***use Pcap04*** $1.00
15 PSB05 ***use Pcap05*** $1.00
16 P1036016 OIL FEEDER $1.00
18 P1036018 WORM SHAFT $5.00
19 PN06 HEX NUT 1/2-13 $1.00
20 P1036020 GEAR BOX COVER $1.25
21 P1036021 WHEEL GUARD $4.00
23 PB19 HEX BOLT 1/4-20 X 1/2 $1.00
24 P1036024 SPACER $1.00
25 P1036025 FLANGE $1.00
26 P1036026 GRINDING WHEEL $6.25
27 P1036027 LEFT HAND NUT 1/2-13 $2.50
28 P1036028 WHEEL COVER $2.50
29 PS06 PHLP HD SCR 10-24 X 3/8 $1.00
30 P1036030 Eye Shield W/bracket $3.25
32 PS24 PHLP HD SCR 8-32 x 3/8 $1.00
33 P1036033 KNOB $1.00
34 PN14 HEX NUT 8-32 $0.75
35 P1036035 KNOB $1.00
36 PN02 HEX NUT 5/16-18 $1.00
37 PW07 FLAT WASHER 5/16 $1.00
38 P1036038 TOOL REST $2.75
39A P1036039A COMPLETE MOTOR $82.50
39B P1036039B MOTOR FAN $4.50
46B PHTEK1 TAP SCREW #6 X 1/2 $1.00
49 P1036049 ***USE PWRCRD110L*** $10.00
50 PSB05 ***use Pcap05*** $1.00
51 P1036051 TABLE BRACKET $3.25
52 P1036052 TOOL REST TABLE $5.00
53 P1036053 SUPPORT BRACKET $3.25
54 PW06 FLAT WASHER 1/4 $1.00
56 P1036056 HANDLE V1.10.95 $3.00
59 PW06 FLAT WASHER 1/4 $1.00
60 PB31 HEX BOLT 1/4-20 X 1 $1.00
64 P1036064 DEGREE SCALE $1.00
65 P1036065 SEAL FOR DRAIN PLUG $1.00
66 P1036066 DRAIN PLUG $1.00
67 P1036067 MOTOR LABEL $1.25
68 P1036068 STRAIN RELIEF $1.00
69 P1036069 CORD PROTECTOR $2.50
70 PW03 FLAT WASHER #10 $1.00
71 PS06 PHLP HD SCR 10-24 X 3/8 $1.00
75 P1036075 DEGREE SLIDE $3.00
76 P1036076 KNOB $3.00
Ref # Part # Description Price Qty
