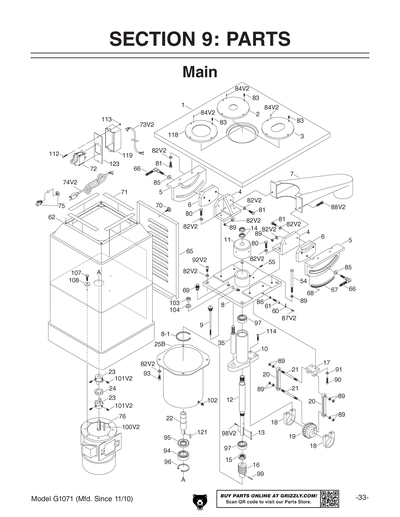

G1071 MAIN DIAGRAM

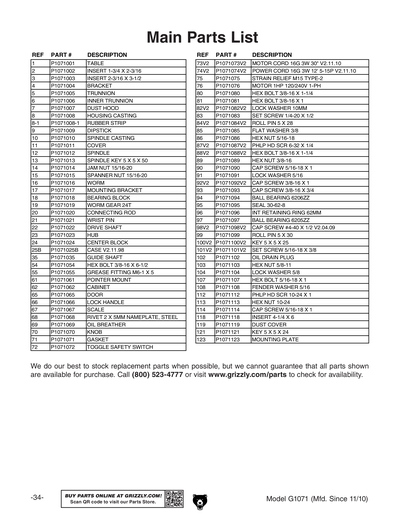

Ref # Part # Description Price Qty
1 P1071001 TABLE $315.00
1 P1071001 TABLE $315.00
2 P1071002 INSERT 1-3/4 X 2 $7.00
2 P1071002 INSERT 1-3/4 X 2 $7.00
3 P1071003 INSERT 2 X 3-3/8 $7.00
3 P1071003 INSERT 2 X 3-3/8 $7.00
4 P1071004 BRACKET $32.50
4 P1071004 BRACKET $32.50
5 P1071005 TRUNNION $35.00
5 P1071005 TRUNNION $35.00
6 P1071006 INNER TRUNNION $25.00
6 P1071006 INNER TRUNNION $25.00
7 P1071007 DUST HOOD $40.75
7 P1071007 DUST HOOD $40.75
8 P1071008 HOUSING CASTING $89.50
8 P1071008 HOUSING CASTING $89.50
9 P1071009 DIP STICK $4.00
9 P1071009 DIP STICK $4.00
10 P1071010 SPINDLE CASTING $23.00
10 P1071010 SPINDLE CASTING $23.00
11 P1071011 COVER $16.25
11 P1071011 COVER $16.25
12 P1071012 SPINDLE $48.75
12 P1071012 SPINDLE $48.75
13 P1071013 SPECIAL KEY 5 X 5 X 50 $1.50
13 P1071013 SPECIAL KEY 5 X 5 X 50 $1.50
14 P1071014 JAM NUT 15/16-20 $2.50
14 P1071014 JAM NUT 15/16-20 $2.50
15 P1071015 SPANNER NUT 15/16-20 $2.75
15 P1071015 SPANNER NUT 15/16-20 $2.75
16 P1071016 WORM $9.75
16 P1071016 WORM $9.75
17 P1071017 MOUNTING BRACKET $6.50
17 P1071017 MOUNTING BRACKET $6.50
18 P1071018 BEARING BLOCK $28.00
18 P1071018 BEARING BLOCK $28.00
19 P1071019 WORM GEAR 24T $20.00
19 P1071019 WORM GEAR 24T $20.00
20 P1071020 CONNECTING ROD $6.00
20 P1071020 CONNECTING ROD $6.00
21 P1071021 WRIST PIN $1.75
21 P1071021 WRIST PIN $1.75
22 P1071022 DRIVE SHAFT $18.75
22 P1071022 DRIVE SHAFT $18.75
23 P1071023 HUB $24.50
23 P1071023 HUB $24.50
24 P1071024 CENTER BLOCK $1.00
24 P1071024 CENTER BLOCK $1.00
25 P1071025B CASE V2.11.98 $117.25
25C P1071025C COMPLETE TUB ASSY $268.00
35 P1071035 GUIDE SHAFT $4.75
35 P1071035 GUIDE SHAFT $4.75
54 P1071054 HEX BOLT 3/8-16 X 6-1/2 $1.00
54 P1071054 HEX BOLT 3/8-16 X 6-1/2 $1.00
55 PZERK2 GREASE FITTING M6-1 x 5 $1.00
55 PZERK2 GREASE FITTING M6-1 x 5 $1.00
60 P1014028 POINTER $1.00
60 P1014028 POINTER $1.00
61 P1071061 POINTER MOUNT $2.75
61 P1071061 POINTER MOUNT $2.75
62 P1071062 CABINET $300.00
62 P1071062 CABINET $300.00
65 P1071065 DOOR $20.00
65 P1071065 DOOR $20.00
66 P1071066 LOCK HANDLE $5.00
66 P1071066 LOCK HANDLE $5.00
67 P1071067 SCALE $1.25
67 P1071067 SCALE $1.25
68 P1183108 RIVET $1.00
68 P1183108 RIVET $1.00
69 P1071069 OIL BREATHER $5.75
69 P1071069 OIL BREATHER $5.75
70 P1071070 KNOB $1.00
70 P1071070 KNOB $1.00
71 P1071071 GASKET $5.00
71 P1071071 GASKET $5.00
72 PSW06 PADDLE SWITCH 110/220V WITH KEY $4.00
72A P0555014 SWITCH (PUSH BUTTON) $19.75
73 P1071073 CORD, SWITCH TO MOTOR $6.25
73 P1071073 CORD, SWITCH TO MOTOR $6.25
74 P1071074 POWER CORD $11.00
74 P1071074 POWER CORD $11.00
75 P1071075 STRAIN RELIEF $1.00
75 P1071075 STRAIN RELIEF $1.00
76 P1071076 MOTOR $184.20
76 P1071076 MOTOR $184.20
80 PB24 HEX BOLT 3/8-16 X 1-1/4 $1.00
80 PB24 HEX BOLT 3/8-16 X 1-1/4 $1.00
81 PB18 HEX BOLT 3/8-16 X 1 $1.00
81 PB18 HEX BOLT 3/8-16 X 1 $1.00
82 PLW04 LOCK WASHER 3/8 $1.00
82 PLW04 LOCK WASHER 3/8 $1.00
83 PSS07 SET SCREW 1/4-20 X 1/2 $1.00
83 PSS07 SET SCREW 1/4-20 X 1/2 $1.00
84 PRP42M ROLL PIN 3 X 20 $0.75
84 PRP42M ROLL PIN 3 X 20 $0.75
85 PW02 FLAT WASHER 3/8 $1.00
85 PW02 FLAT WASHER 3/8 $1.00
86 PN02 HEX NUT 5/16"-18 $1.00
86 PN02 HEX NUT 5/16"-18 $1.00
87 PSB38 CAP SCREW 10-32 X 3/8 $1.00
87 PSB38 CAP SCREW 10-32 X 3/8 $1.00
88 PB16 HEX BOLT 3/8-16 X 1-1/2 $1.00
88 PB16 HEX BOLT 3/8-16 X 1-1/2 $1.00
89 PN08 HEX NUT 3/8"-16 $1.00
89 PN08 HEX NUT 3/8"-16 $1.00
90 PSB03 CAP SCREW 5/16-18 X 1 $1.00
90 PSB03 CAP SCREW 5/16-18 X 1 $1.00
91 PLW01 LOCK WASHER 5/16 $1.00
91 PLW01 LOCK WASHER 5/16 $1.00
92 PSB16 CAP SCREW 3/8-16 X 3/4 $1.00
92 PSB16 CAP SCREW 3/8-16 X 3/4 $1.00
93 PSB16 CAP SCREW 3/8-16 X 3/4 $1.00
93 PSB16 CAP SCREW 3/8-16 X 3/4 $1.00
94 P6206 BALL BEARING 6206ZZ $4.50
94 P6206 BALL BEARING 6206ZZ $4.50
95 P1071095 SEAL 30-62-8 $3.00
95 P1071095 SEAL 30-62-8 $3.00
96 PR38M INT RETAINING RING 62MM $1.00
96 PR38M INT RETAINING RING 62MM $1.00
97 P6205 BALL BEARING 6205ZZ $3.25
97 P6205 BALL BEARING 6205ZZ $3.25
98 PSB39 CAP SCREW 5-40 X 1/2 $1.00
98 PSB56M CAP SCREW M3-.5 X 10 $1.00
99 PRP05M ROLL PIN 5 X 30 $1.00
99 PRP05M ROLL PIN 5 X 30 $1.00
100 PK12M KEY 5 X 5 X 30 $1.00
100 PK12M KEY 5 X 5 X 30 $1.00
101 PSS08 SET SCREW 5/16-18 X 1/2 $1.00
101 PSS08 SET SCREW 5/16-18 X 1/2 $1.00
102 P1126153 OIL DRAIN PLUG $1.75
102 P1126153 OIL DRAIN PLUG $1.75
103 PN04 HEX NUT 5/8"-11 $1.00
103 PN04 HEX NUT 5/8"-11 $1.00
104 PLW06 LOCK WASHER 5/8 $1.00
104 PLW06 LOCK WASHER 5/8 $1.00
107 PB03 HEX BOLT 5/16-18 X 1 $1.00
107 PB03 HEX BOLT 5/16-18 X 1 $1.00
108 P1071108 FENDER WASHER 5/16 $1.00
108 P1071108 FENDER WASHER 5/16 $1.00
112 PS03 PHLP HD SCR 10-24 X 1 $1.00
112 PS03 PHLP HD SCR 10-24 X 1 $1.00
113 PN07 HEX NUT 10-24 $1.00
113 PN07 HEX NUT 10-24 $1.00
114 PSB03 CAP SCREW 5/16-18 X 1 $1.00
114 PSB03 CAP SCREW 5/16-18 X 1 $1.00
117 P1071117 NAME PLATE V2.03.06 $5.00
117 P1071117 NAME PLATE V2.03.06 $5.00
118 P1071118 INSERT 4 1/8 $6.75
118 P1071118 INSERT 4 1/8 $6.75
119 P1071119 DUST COVER $13.50
119 P1071119 DUST COVER $13.50
121 PK22M KEY 5 x 5 x 24 $1.00
121 PK22M KEY 5 x 5 x 24 $1.00
122 P1071122 *DISCD*STEEL INSERT 1 1/2"-4" $9.50
123 P1071123 MOUNTING PLATE $1.00
123 P1071123 MOUNTING PLATE $1.00
Ref # Part # Description Price Qty
