Parts for G1126 Gear-Head Mill/Drill

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

5
BALL BEARING 6008ZZ
Price
N/A
7
*DISCD*OIL SEAL
Item is no longer available
Price
N/A
18
TAPERED ROLLER BEARING 30207
Price
N/A
28
*DISCD*OIL SEAL
Item is no longer available
Price
N/A
34
*DISCD*GEAR 24T - LATHE
Item is no longer available
Price
N/A
40
*DISCD*KNOB
Item is no longer available
Price
N/A
56
*DISCD*SWITCH- FORWARD/REVERSE
Item is no longer available
Price
N/A
101
DRAWBAR COVER
Item is no longer available
Price
N/A
102
DRAWBAR 7/16-20 X 16-3/8
104
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
104A
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
104B
EXT RETAINING RING 85MM
105
BALL BEARING 6008-OPEN
Price
N/A
106
SPINDLE SLEEVE GEAR
107
OIL SEAL 35 X 45 X 8
108
SEAL RETAINER
109
DUST COVER
Item is no longer available
Price
N/A
110
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
1101
ELEVATION CRANK BRACKET
1102
DEPTH INDICATOR
1103
TENSION SPRING W/COVER
Price
N/A
1103A
TENSION SPRING W/COVER
1104
TENSION SPRING W/COVER
Price
N/A
1105
SPRING BASE
1106
PINION SHAFT
1107
WORM GEAR
Item is no longer available
Price
N/A
1108
DOWNFEED GEAR HOUSING
111
HEADSTOCK CASTING
Item is no longer available
Price
N/A
1110
COARSE DOWNFEED LEVER HUB
1111
LOCK KNOB 3/8"-16 X 5/8
Item is no longer available
Price
N/A
1115
COMPRESSION SPRING 175 X 25MM
Item is no longer available
Price
N/A
1119
BEARING CAP OD 73.6-16
112
RUBBER FLANGE
Item is no longer available
Price
N/A
1121
GEAR 41T
Price
N/A
113
FEED BASE
1134
Now: PB10
HEX BOLT 1/4-20 X 2
Price
N/A
1135
Now: PN05
HEX NUT 1/4-20
Price
N/A
1136
DEPTH STOP ASSEMBLY
Price
N/A
1136A
DEPTH STOP ASSEMBLY
1137
EXT TOOTHED WASHER 30 X 39 X 1.0
1139
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
114
SPANNER NUT OD 29.5-20 UNF
1140
SPRING BASE PIN
Item is no longer available
Price
N/A
1141
Now: PN08
HEX NUT 3/8-16
Price
N/A
1142
Now: PK25M
KEY 7 X 7 X 20
Price
N/A
1143
CAP SCREW 5/16-18 X 3/4
Price
N/A
1145
Now: PSS05
SET SCREW 5/16-18 X 1/4
Price
N/A
1146
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
1147
CAP SCREW 10-24 X 3/8
Price
N/A
1148
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
115
TAPERED ROLLER BEARING 30206
Price
N/A
1150
Now: PN04
HEX NUT 5/8-11
Price
N/A
1151
Now: PW14
FLAT WASHER 5/8
Price
N/A
1153
Now: PSS05
SET SCREW 5/16-18 X 1/4
Price
N/A
1154
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
1155
CAP SCREW 1/4-20 X 1
Price
N/A
116
*DISCD*QUILL
Item is no longer available
Price
N/A
117
*DISCD*SPINDLE
Item is no longer available
Price
N/A
118
TAPERED ROLLER BEARING 30207
Price
N/A
1184
Now: PS41
PHLP HD SCR 6-32 X 1/4
Price
N/A
1185
Now: PW16
FLAT WASHER #6
Price
N/A
1187
SPRING COVER WASHER 65 X 25 X 2.0
1188
Now: PFH08
FLAT HD SCR 10-24 X 1/2
Price
N/A
119
BEARING CAP
Item is no longer available
Price
N/A
1190
SHIFTING FORK LEFT PIN
Item is no longer available
Price
N/A
1191
QUILL LOCK SLEEVE
1192
Now: PW01
FLAT WASHER 1/2
Price
N/A
1193
THREADED MITER PIN HEX NUT
Item is no longer available
Price
N/A
1194
THREADED MITER PIN
Item is no longer available
Price
N/A
1195
DUST PLATE
Item is no longer available
Price
N/A
1196
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
1197
SOCKET WRENCH
1198
BUSHING
1199
RIVET 2MM
Item is no longer available
Price
N/A
120
GEAR SHAFT
1200
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
1201
CAP SCREW 3/8-16 X 1
Price
N/A
1202
Now: PW06
FLAT WASHER 1/4
Price
N/A
121
GEAR 41T
122
GRIP
Item is no longer available
Price
N/A
123
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
124
QUILL LOCK ROD
125
FRONT QUILL LOCK SLEEVE
126
REAR QUILL LOCK SLEEVE
127
DOG PT SET SCR 3/8-16 X 1-1/2
128
OIL SEAL 40 X 68 X 8
Item is no longer available
Price
N/A
129
GEAR 16T/43T
Item is no longer available
Price
N/A
130
SPRING BALL ASSEMBLY 9 X 7
Item is no longer available
Price
N/A
131
GEAR SHAFT
132
Now: PK36M
KEY 5 X 5 X 50
Price
N/A
133
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
134
GEAR
135
BEARING SPACER 34 X 28
136
BUSHING
Item is no longer available
Price
N/A
137
GEAR 28T
137A
GEAR 35T
138
Now: PK95M
KEY 6 X 6 X 10
Price
N/A
139
COARSE DOWNFEED LEVER
140
KNOB
141
BALL BEARING 6202-OPEN
Price
N/A
142
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
143
SHAFT
144
FINE DOWNFEED GRADUATED RING
145
WORM COVER
Item is no longer available
Price
N/A
146
BALL BEARING 6202ZZ
Price
N/A
147
WORM SHAFT
Item is no longer available
Price
N/A
148
Now: PK17M
KEY 5 X 5 X 80
Price
N/A
149
GEAR 22T/31T/15T
150
OIL SEAL 35 X 62 X 8
151
BALL BEARING 6007-2RS
Price
N/A
152
Now: PB100
HEX BOLT 5/8-11 X 8
Price
N/A
153
OIL DRAIN PLUG
154
DEPTH STOP ASSEMBLY
Price
N/A
156
FWD/REV SWITCH
157
POWER CORD 16G X 3W 73"L
Price
N/A
158
ELEVATION CRANK
Item is no longer available
Price
N/A
159
WORM SHAFT
160
WORM
161
SHAFT
162
HANDWHEEL
162A
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
163
Now: PLN07
LOCK NUT 5/8-11
Price
N/A
164
Now: PLW06
LOCK WASHER 5/8
Price
N/A
165
HEX BOLT
166
SHIFTING FORK BRACKET
167
SHIFTING FORK LEFT
168
SHIFTING FORK RIGHT
169
CAP SCREW 1/4-20 X 1/2
Price
N/A
170
SHIFTING SHAFT RIGHT
171
SHIFTING SHAFT LEFT
172
*DISCD*HEADSTOCK FRONT COVER
Item is no longer available
Price
N/A
173
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
174
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
175
SHIFTING LEVER
176
HEAD TILT SCALE
177
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
179
HEAD COLUMN BRACKET V2.06.05
Item is no longer available
Price
N/A
179A
HEAD COLUMN BRACKET V1.02.96
Item is no longer available
Price
N/A
180
MOTOR CORD 3C
Item is no longer available
Price
N/A
181
OIL FILLER PLUG
182
CAP SCREW M8-1.25 X 50
Price
N/A
183
PIN
184
HEAD CASTING COVER
Item is no longer available
Price
N/A
185
KNOB
Price
N/A
186
MOTOR 1-1/2HP 110/220V 1-PH
Item is no longer available
Price
N/A
186A
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
186B
CAPACITOR COVER
Item is no longer available
Price
N/A
186C
MOTOR FAN COVER
186D
MOTOR FAN
186E
CIRCUIT BREAKER 20A 1P
Item is no longer available
Price
N/A
186F
S CAPACITOR 150M 250V 1-3/8 X 3
Item is no longer available
Price
N/A
187
OIL SIGHT GLASS
188
Now: PK42M
KEY 6 X 6 X 30
Price
N/A
189
RELIEF VALVE
190
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
191
SET DISTANCE NUT TW12-10
192
DEPTH SCREW NUT
193
Now: PN62M
HEX NUT 5/8-18 THIN
Price
N/A
194
DEPTH STOP ASSEMBLY
Price
N/A
195
DEPTH STOP ASSEMBLY
Price
N/A
197
*DISCD*OIL SEAL
Item is no longer available
Price
N/A
201
TABLE HANDWHEEL W/HANDLE
202
*DISCD*CROSS FEED DIAL CLUTCH
203
THRUST BEARING 51103
Price
N/A
204
SQUARE FLANGE
205
LEADSCREW ASSY M23.5-2.5 X 468
Item is no longer available
Price
N/A
206
BASE
207
CROSS SLIDE GIB
Item is no longer available
Price
N/A
208
COLUMN
Item is no longer available
Price
N/A
209
COLUMN RING
Item is no longer available
Price
N/A
210
RACK
Item is no longer available
Price
N/A
211
COLUMN CAP
Item is no longer available
Price
N/A
212
*DISCD*GIB BOLT 5/16"-18 X 1-3/8"
Item is no longer available
Price
N/A
2121
*DISCD*INDICATOR PLATE
2122
CAP SCREW 5/16-18 X 1
Price
N/A
2123
BALL OILER 1/4"
Price
N/A
2124
PLUG 1/4 X 3/8
Item is no longer available
Price
N/A
2125
BALL OILER 1/4"
Price
N/A
2126
CAP SCREW 5/16-18 X 2-1/2
Price
N/A
2127
Now: PLW01
LOCK WASHER 5/16
Price
N/A
2128
CAP SCREW 5/16-18 X 1
Price
N/A
2129
CAP SCREW 5/16-18 X 1/2
Price
N/A
213
LEAF SCREW 5/16 IN-18ONC X 42L
213-1
CROSS LOCK BOLT
213-2
KNOB
213-3
BUSHING
Item is no longer available
Price
N/A
2130
BUSHING
Item is no longer available
Price
N/A
2131
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
2132
LONGITUDINAL LOCK BOLT
2133
CAP SCREW 5/16-18 X 1
Price
N/A
2134
DIAL POSITION SCREW
Item is no longer available
Price
N/A
2135
RIVET 2MM
Price
N/A
2136
BALL OILER 1/4"
Price
N/A
2137
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
2138
Now: PLW06
LOCK WASHER 5/8
Price
N/A
2139
CAP SCREW 5/8-11 X 2-1/2
Price
N/A
214
LONGITUDINAL LIMIT BLOCK
Item is no longer available
Price
N/A
215
LEADSCREW NUT M23.5-2.5
216
SADDLE
Item is no longer available
Price
N/A
2166
ROLL PIN 5 X 40
Price
N/A
2167
*DISCD*CROSS FEED DIAL CLUTCH
Price
N/A
217
WAY COVER PLATE
2171
CAP SCREW 5/16-18 X 1
Price
N/A
2176
CAP SCREW 1/4-20 X 1/2
Price
N/A
218
WAY COVER
220
LEFT LONGITUDINAL CLUTCH
Item is no longer available
Price
N/A
222
LEFT LEADSCREW BRACKET
223
LEADSCREW NUT M23.5-2.5
224
LEADSCREW ASSY ACME 23.5D X 10P X 997MM
Price
N/A
224A
LEADSCREW ASSY ACME 23.5D X 10P X 997MM
226
FLANGE RIGHT
Item is no longer available
Price
N/A
227
LONGITUDINAL GIB
228
TABLE
Item is no longer available
Price
N/A
229
FIXED BLOCK
Price
N/A
230
MOVABLE FIXED RING
Price
N/A
231

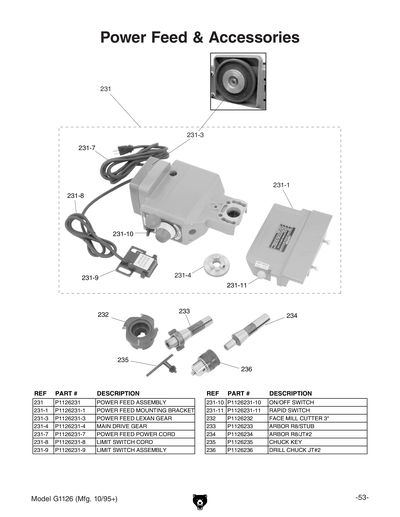

*DISCD*POWER FEED ASSEMBLY AL-200S V1
Item is no longer available
Price
N/A
231-1
*DISCD*POWER FEED MOUNTING BRACKET
Item is no longer available
Price
N/A
231-12
POTENTIOMETER KNOB
Item is no longer available
Price
N/A
231-2
*DISCD*POWER FEED BELT 110 X L037 QTY 1
Item is no longer available
Price
N/A
231-3
*DISCD*POWER FEED LEXAN GEAR
231-4
MAIN DRIVE GEAR
231-5
POTENTIOMETER B10K
Price
N/A
231-6
*DISCD*BRUSHES
231-9
LIMIT SWITCH ASSY
Item is no longer available
Price
N/A
231A
*DISCD*PLASTIC GEAR FOR POWERFEED
Item is no longer available
Price
N/A
231V2
Now: H8370
Power Feed for Mill / Drills ALSAS
Price
N/A
232
FACE MILL CUTTER 3"
Item is no longer available
Price
N/A
233
FACE MILL ARBOR R8 X 1" DIA. STUB
Item is no longer available
Price
N/A
234
DRILL CHUCK ARBOR R8 X JT6, 140MM L
Item is no longer available
Price
N/A
235
*DISCD*DRL CHK KEY 7.88MM STD 12T SD-16.8MM
Price
N/A
236
DRILL CHUCK JT#2
Item is no longer available
Price
N/A

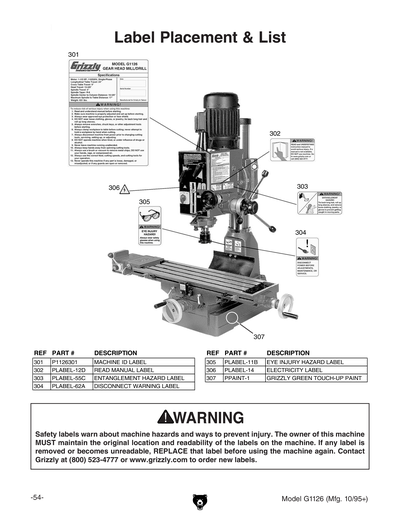

301
MACHINE ID LABEL
Item is no longer available
Price
N/A
302
READ MANUAL 2.8W X 1.5H
Price
N/A
303
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
304
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
305
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
306
ELECTRICITY 1.4W X 1.2H
Price
N/A
307
N/S GRIZZLY GREEN G1023S
Price
N/A
MANUAL
MANUAL FOR G1126 09/94
