Enter the quantity next to the part you are ordering and press the "Add To Cart" button. If you cannot locate your part below, click on the appropriate diagram at the top of the page or contact our tech support department at techsupport@grizzly.com or 570-546-9663.

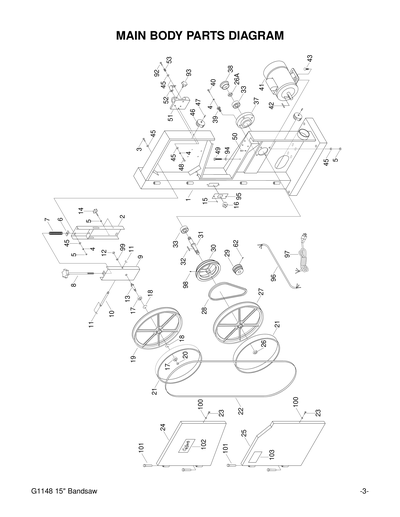

G1148 MAIN DIAGRAM


Ref # Part # Description Price Qty
3 PB07 HEX BOLT 5/16-18 X 3/4 $1.00
4 PLW01 LOCK WASHER 5/16 $1.00
5 PN02 HEX NUT 5/16-18 $1.00
6 P1148006 TOP WHEEL MOUNT NUT 3/8-16 $5.25
7 P1012018 SPRING 4.2 X 76 $1.75
11 PEC09M E-CLIP 6MM $1.00
12 PN06 HEX NUT 1/2-12 $1.00
15 PS06 PHLP HD SCR 10-24 X 3/8 $1.00
18 PR21M INT RETAINING RING 35MM $1.00
20 PN01 HEX NUT 1/2-20 $1.00
23 PB19 HEX BOLT 1/4-20 X 1/2 $1.00
26 P1012069 LOWER WHEEL LH NUT 3/4-10 $2.50
28 PVM31 V-BELT M31 3L310 $8.25
32 PK02M KEY 5 X 5 X 40 $1.00
40 PB12 HEX BOLT 5/16-18 X 1-1/4 $1.00
43 PCB01 CARRIAGE BOLT 5/16-18 X 5/8 $1.00
45 PW07 FLAT WASHER 5/16 $1.25
47 PS12 PHLP HD SCR 1/4-20 X 5/8 $1.00
48 PB09 HEX BOLT 5/16-18 X 1/2 $1.00
49 PB60 HEX BOLT 3/8-16 X 3 $1.00
50 P1012046 TAPERED PIN $1.75
62 PSS11 SET SCREW 1/4-20 X 1/4 $1.00
92 PB11 HEX BOLT 5/16-18 X 1-1/2 $1.00
94 PN08 HEX NUT 3/8-16 $1.25
99 PLW07 LOCK WASHER 1/2 $1.00
100 PN05 HEX NUT 1/4-20 $1.00
Ref # Part # Description Price Qty
