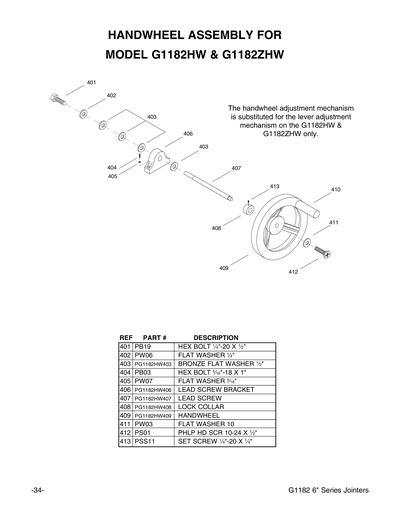

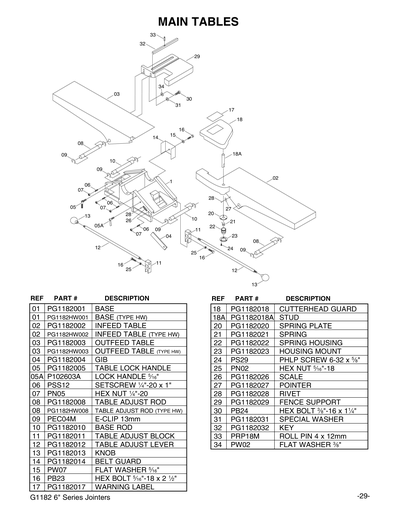

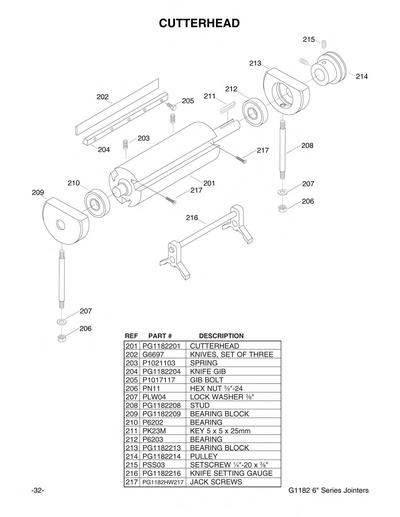

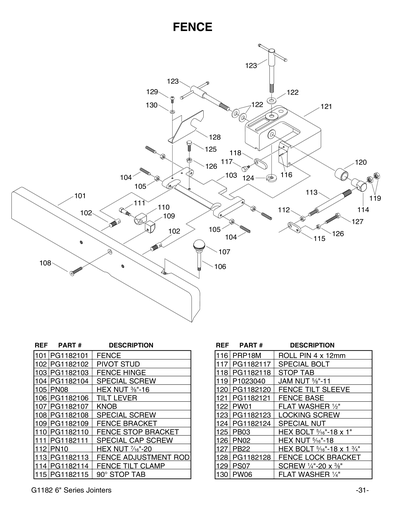

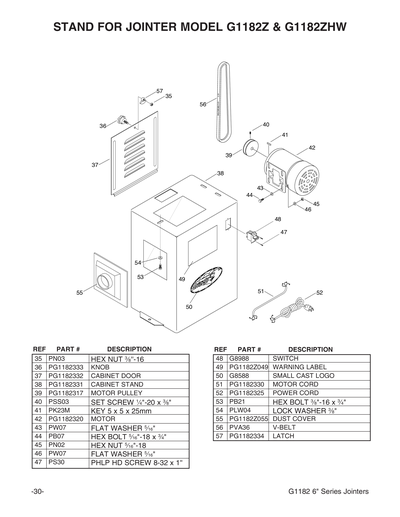

G1182HW HANDWHEEL ASSEMBLY DIAGRAM

Ref # Part # Description Price Qty
401 PB19 HEX BOLT 1/4-20 X 1/2 $0.75
402 PW06 FLAT WASHER 1/4 $1.00
403 PG1182HW403 BRONZE FLAT WASHER 1/2 $1.25
404 PB03 HEX BOLT 5/16-18 X 1 $1.00
405 PW07 FLAT WASHER 5/16 $1.00
406 PG1182HW406 LEAD SCREW BRACKET $3.75
407 PG1182HW407 LEAD SCREW 12-2.54 $6.25
408 PG1182HW408 LOCK COLLAR $2.00
409 PG1182HW409 HANDWHEEL $12.50
411 PW03 FLAT WASHER #10 $1.00
412 PS01 PHLP HD SCR 10-24 X 1/2 $1.00
413 PSS11 SET SCREW 1/4-20 X 1/4 $0.75
Ref # Part # Description Price Qty
