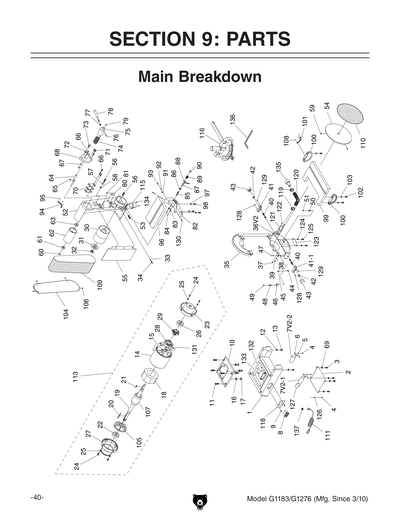

G1276 MAIN DIAGRAM

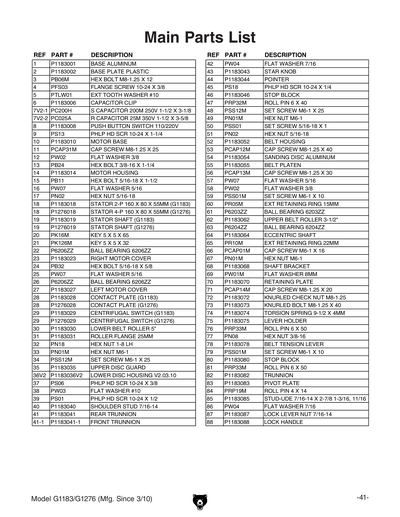

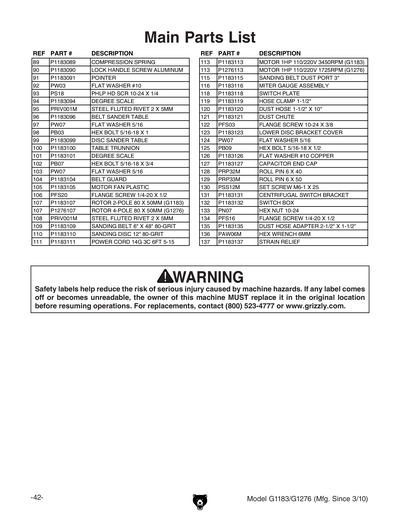

Ref # Part # Description Price Qty
1 P1183001 STAND $118.75
2 P1183002 BASE PLATE $1.50
3 PB17M HEX BOLT M8-1.25 X 10 $1.00
4 P1183004 ***USE PB17M*** $1.00
5 PW03 FLAT WASHER #10 $1.00
6 P1183006 COVER LOCK $1.00
7 PC400B CAPACITOR 400MFD 125V 1-3/4OD X 3-7/8L $11.25
8 P1019090A ***USE P0555014*** $23.25
8A P1019090B ***USE G8988*** $3.50
9 PS03 PHLP HD SCR 10-24 X 1 $1.00
10 P1183010 MOTOR BASE $56.25
11 PSB11M CAP SCREW M8-1.25 X 16 $1.00
12 PLW05 LOCK WASHER 7/16 $1.00
13 PSB13 CAP SCREW 7/16-14 X 1-1/4 $1.00
16 PLW01 LOCK WASHER 5/16 $1.00
17 PN02 HEX NUT 5/16"-18 $1.00
30 P1183030 LOWER WHEEL $108.50
31 P1183031 FLANGE $2.50
32 P1183032 ***USE PN18*** $3.00
33 PN01M HEX NUT M6-1 $1.00
34 PSS12M SET SCREW M6-1 X 25 $1.00
35 P1183035 DISC GUARD $24.50
36 P1183036 BASE $57.00
37 PS06 PHLP HD SCR 10-24 X 3/8 $1.00
39 PS06 PHLP HD SCR 10-24 X 3/8 $1.00
40 P1183040 STUD $2.25
41 P1183041 SLIDING RAIL $4.00
42 PW04 FLAT WASHER 7/16 $1.00
43 P1183043 STAR KNOB $5.00
44 P1183044 POINTER $1.00
45 P1183045 SPECIAL SCREW 3/16-24 X 1/4 $1.00
46 P1183046 BLOCK $1.00
47 PRP32M ROLL PIN 6 X 40 $1.00
48 PSS12M SET SCREW M6-1 X 25 $1.00
49 PN01M HEX NUT M6-1 $1.00
50 PSS18 SET SCREW 5/16-18 X 3/4 $1.00
51 PN02 HEX NUT 5/16"-18 $1.00
52 P1183052 BELT HOUSING CASTING $224.25
53 PSB12M CAP SCREW M8-1.25 X 40 $1.00
54 P1183054 ALUMINUM DISC $74.75
55 P1183055 PLATEN $59.00
56 PSB13M CAP SCREW M8-1.25 X 30 $1.00
57 PW07 FLAT WASHER 5/16 $1.00
58 PW04 FLAT WASHER 7/16 $1.00
59 PSS01M SET SCREW M6-1 X 10 $1.00
60 PR05M EXT RETAINING RING 15MM $1.00
61 P6202 BALL BEARING 6202ZZ $2.25
62 P1183062 UPPER WHEEL $48.75
63 P6203 BALL BEARING 6203ZZ $2.00
64 P1183064 SHAFT $30.75
65 PR10M EXT RETAINING RING 22MM $1.00
66 PSB01M CAP SCREW M6-1 X 16 $1.00
67 PN01M HEX NUT M6-1 $1.00
68 P1183068 COVER $36.00
70 P1183070 PLATE $2.25
71 PSB14M CAP SCREW M8-1.25 X 20 $1.00
72 P1183072 KNURLED CHECK NUT M8-1.25 $1.75
73 P1183073 KNURLED BOLT M8-1.25 X 40 $1.75
74 P1183074 SPRING-COMPRESSION 9-1/2 X 4MML $3.00
75 P1183075 LEVER HOLDER $14.50
76 PRP33M ROLL PIN 6 X 50 $3.75
77 PN08 HEX NUT 3/8"-16 $1.00
78 P1183078 IDLER PULLEY LEVER $3.00
79 PSS01M SET SCREW M6-1 X 10 $1.00
80 P1183080 BLOCK $1.00
81 PRP33M ROLL PIN 6 X 50 $3.75
82 P1183082 TRUNNION $34.25
83 P1183083 SLIDE $3.00
84 PRP19M ROLL PIN 4 X 14 $1.50
85 P1183085 STUD $3.00
86 PW04 FLAT WASHER 7/16 $1.00
87 P1183087 TOOTHED NUT 7/16-14 $2.00
88 P1024039 *DISCD*LOCK HANDLE $9.50
89 PLW02 LOCK WASHER 1/4 $0.75
90 PB02 HEX BOLT 1/4-20 X 5/8 $1.00
91 P1183044 POINTER $1.00
92 PW03 FLAT WASHER #10 $1.00
93 PS18 PHLP HD SCR 10-24 X 1/4 $1.00
94 P1183094 DEGREE SCALE $1.50
95 P1183108 RIVET $1.00
96 P1183096 BELT SANDER TABLE $90.75
97 PW07 FLAT WASHER 5/16 $1.00
98 PB07 HEX BOLT 5/16-18 X 3/4 $1.00
99 P1183099 DISC SANDER TABLE $77.25
100 P1183100 DEGREE SLIDE $25.50
101 P1183101 DEGREE SCALE $3.00
102 PB07 HEX BOLT 5/16-18 X 3/4 $1.00
103 PW07 FLAT WASHER 5/16 $1.00
104 P1183104 BELT GUARD $25.25
106 P1183106 PHLP HD SCR W/WASHER 1/4-20 X 1/2 $1.00
108 P1183108 RIVET $1.00
109 G1215 6" x 48" Sanding Belt A100, 2 pc. $8.95
110 G1221 12" Sanding Disc, A100 PSA, 2 pc. $5.95
