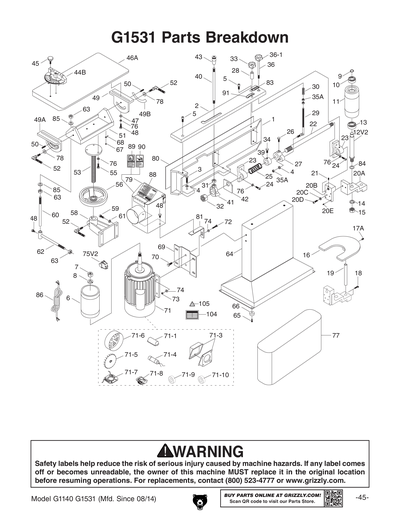

G1531 MAIN DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

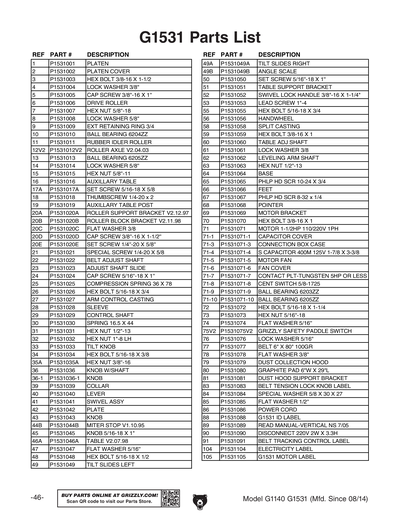

Ref # Part # Description Price Qty
1 P1531001 PLATEN $132.75
2 P1531002 PLATEN COVER $48.75
3 PB24 HEX BOLT 3/8-16 X 1-1/4 $1.00
4 PLW04 LOCK WASHER 3/8 $1.00
5 PSB14 ***use Pcap14*** $1.00
6 P1531006 DRIVE ROLLER $36.00
7 PN09 HEX NUT 5/8-18 $1.00
9 PR02 EXT RETAINING RING 3/4 $1.00
10 P6204 ***SEE EXT DESCRIPTION*** $3.00
11 P1531011 RUBBER IDLER ROLLER $48.75
12 P1531012 ROLLER AXLE V1.12.95 $12.25
12V2 P1531012V2 ROLLER AXLE V2.04.03 $8.50
13 P6205 ***SEE EXT DESCRIPTION*** $5.00
14 PLW06 LOCK WASHER 5/8 $1.00
15 PN04 HEX NUT 5/8-11 $1.00
16 P1531016 AUXILLARY TABLE $19.50
17 PB03 HEX BOLT 5/16-18 X 1 $1.00
18 P1140018 ***USE PTS005*** $0.75
19 P1531019 AUXILLARY TABLE POST $3.25
20A P1531020A ROLLER SUPPORT BRACKET V2.12.97 $7.00
20B P1531020B ROLLER BLOCK BRACKET V2.11.98 $9.25
20C PW02 FLAT WASHER 3/8 $1.00
20D PSB26 ***use Pcap26*** $1.00
20E PSS10 SET SCREW 1/4-20 X 5/8 $1.00
21 P1531021 SPECIAL SCREW 1/4-20 X 5/8 $1.00
22 P1531022 BELT ADJUST SHAFT $8.00
23 P1531023 ADJUST SHAFT SLIDE $7.75
24 PSB03 ***use Pcap03*** $1.00
25 P1531025 COMPRESSION SPRING 36 X 78 $1.50
27 P1531027 ARM CONTROL CASTING $3.00
28 P1531028 SLEEVE $1.25
29 P1531029 CONTROL SHAFT $5.75
30 P1531030 SPRING 16.5 X 44 $1.00
31 PN13 ***USE PN06*** $0.75
32 PN18 HEX NUT 1-8 LH $4.50
33 P1531033 TILT KNOB $1.00
35A PN08 HEX NUT 3/8-16 $1.25
36 P1531036 KNOB W/SHAFT $1.50
36-1 P1531036-1 ***USE PSW03-1*** $1.25
39 P1531039 COLLAR $3.75
40 P1531040 LEVER $2.00
41 P1531041 SWIVEL ASSY $9.00
42 P1531042 PLATE $2.50
43 P1531043 KNOB $1.00
44 P1023201 MITER GAUGE BODY V1.12.95 $24.50
44B P1531044B MITER STOP V1.10.95 $1.00
45 P1531045 Knob 5/16-18 X 1 $1.00
46A P1531046A TABLE V2.07.98 $132.75
47 PLW01 LOCK WASHER 5/16 $1.00
47A PW07 FLAT WASHER 5/16 $1.25
49 P1531049 TILT SLIDES LEFT $22.75
49A P1531049A TILT SLIDES RIGHT $22.75
49B P1531049B ANGLE SCALE $1.00
50 PSS01 SET SCREW 5/16-18 X 1 $1.00
51 P1531051 TABLE SUPPORT BRACKET $28.00
52 P1531052 ***USE P0512052*** $3.75
53 P1531053 Leadscrew 1-4 In $18.00
55 PB07 HEX BOLT 5/16-18 X 3/4 $1.00
56 P1531056 HANDWHEEL $18.00
58 P1531058 SPLIT CASTING $20.50
59 PB18 HEX BOLT 3/8-16 X 1 $1.00
60 P1531060 TABLE ADJ SHAFT $2.00
62 P1531062 LEVELING ARM SHAFT $5.75
64 P1531064 BASE $262.50
65 PS08 PHLP HD SCR 10-24 X 3/4 $1.00
66 P1531066 FEET $1.00
67 PS23 Phlp Hd Scr 8-32 X 1/4 $1.00
68 P1531068 POINTER $1.00
69 P1531069 MOTOR BRACKET $31.25
71 P1531071 Motor 1-1/2hp 1ph 110/220v $208.30
71-2 P1531071-2 SWITCH COVER V1.10.95 $2.50
71-3 P1531071-3 CONNECTION BOX CASE $4.00
71-4 P1531071-4 ***USE PC400E*** $7.50
71-5 P1531071-5 MOTOR FAN $4.00
71-6 P1531071-6 FAN COVER $8.00
72 PB12 HEX BOLT 5/16-18 X 1-1/4 $1.00
73 PN02 HEX NUT 5/16-18 $1.00
75A PSW06 ***USE G8988*** $4.00
78 P1531078 ***USE PW02*** $5.00
79 P1531079 DUST COLLECTION HOOD $40.75
80 P1531080 Graphite Pad 6w X 29l In $13.50
81 P1531081 DUST HOOD SUPPORT BRACKET $1.50
83 P1531083 BELT TENSION LOCK KNOB LABEL $1.00
84 P1531084 ***USE P1140101*** $0.75
85 PW01 Flat Washer 1/2 In $1.00
86 PWRCRD220L Power Cord 12awg X 3c 86"l $24.00
88 P1531088 Machine Id Label $2.00
90 P1531090 DISCONNECT LABEL 220V 2W X 3.3H $1.00
91 P1531091 BELT TRACKING CONTROL LABEL $2.50
105 P1531105 Motor Spec Label $3.00
