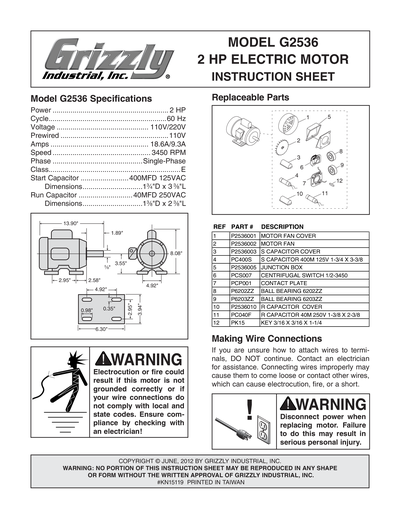

G2536 MAIN DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.
Ref # Part # Description Price Qty
1 P2536001 CAPACITOR COVER $1.50
2 P2536002 CONNECTION BOX $3.00
3 P2536003 S CAPACITOR COVER $3.00
4 PC400I ***USE PC400J** $9.00
5 P2536005 R CAPACITOR COVER $3.00
6 PC040E R CAPACITOR 40M 250V 1-3/8 X 3-1/2 $15.00
7 P2536007 JUNCTION BOX $4.50
8 P2536008 CENTRIFUGAL SWITCH $4.00
9 P2536009 CONTACT PLATE $4.00
Ref # Part # Description Price Qty
