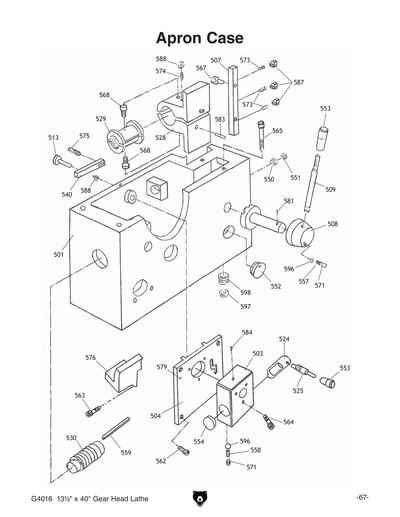

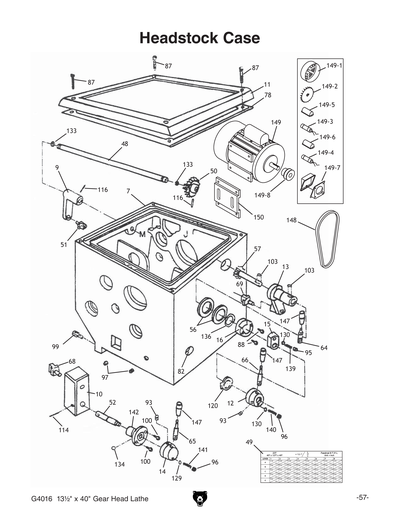

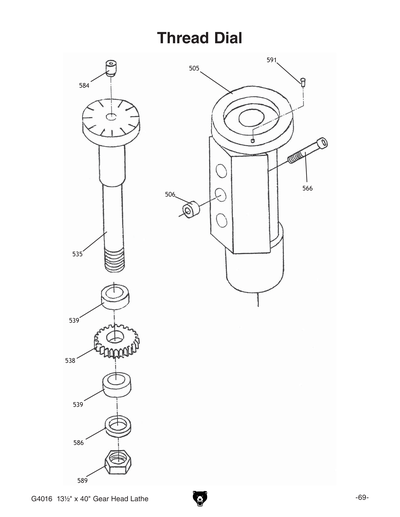

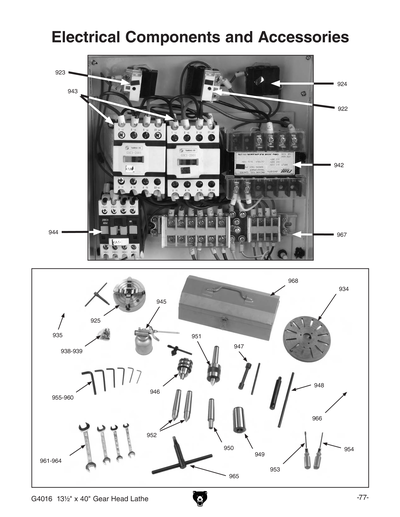

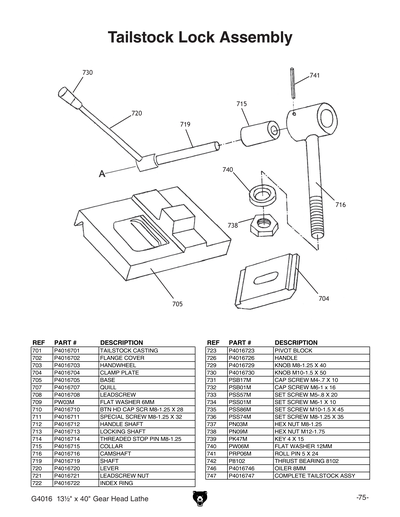

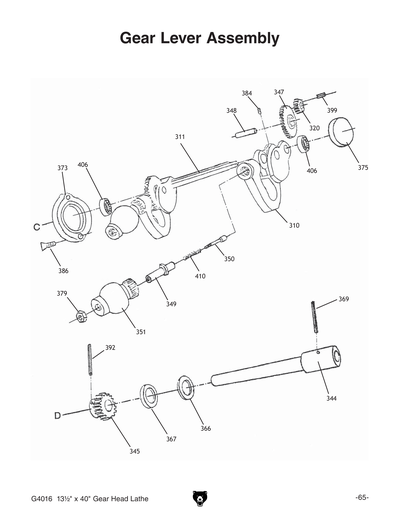

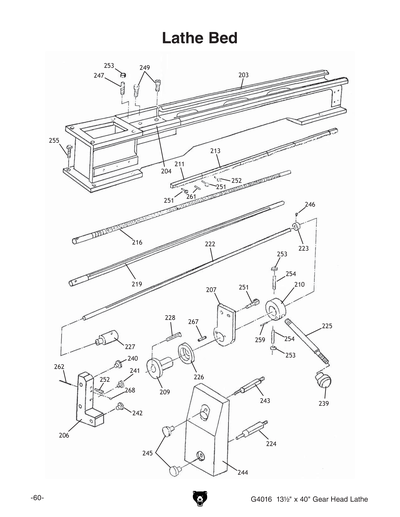

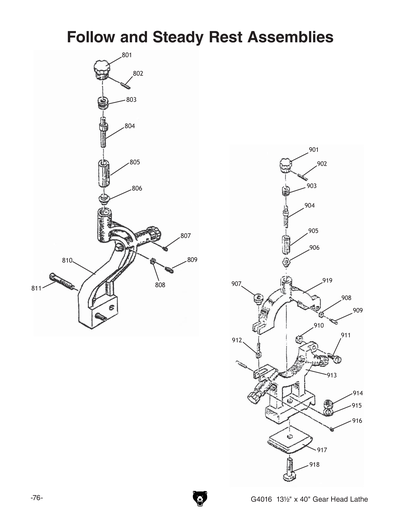

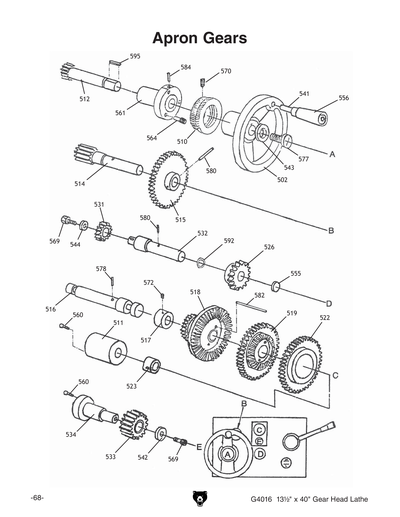

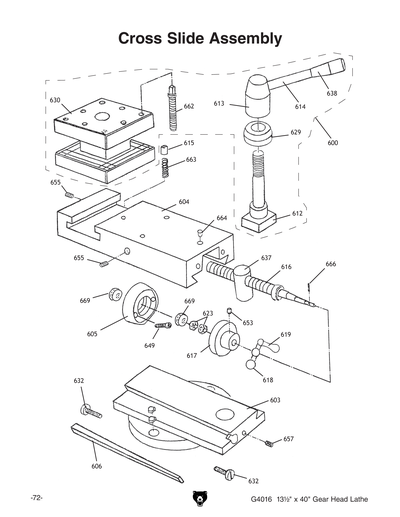

G4016 APRON CASE DIAGRAM

While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.


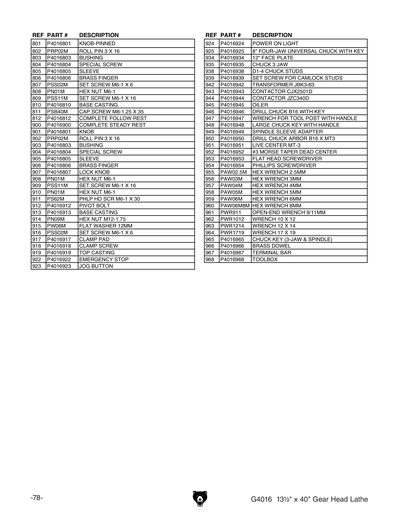

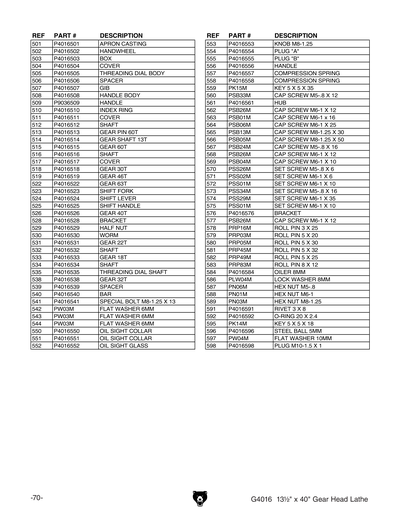

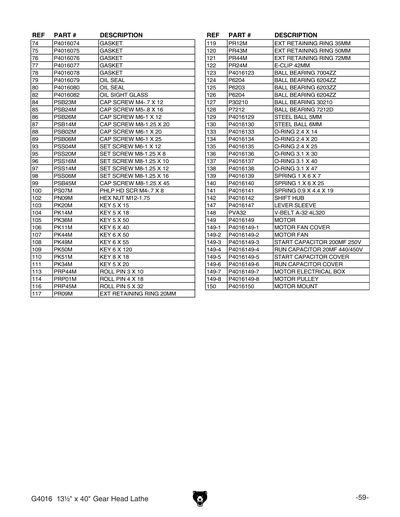

Ref #	Part #	Description	Price	Qty

P4016501	APRON CASTING	$577.25
P4016503	BOX	$42.00
P4016540	BAR	$5.00
P4016550	OIL SIGHT COLLAR	$1.00
P4016551	OIL SIGHT COLLAR	$1.25
P4016552	OIL SIGHT GLASS	$18.00
P4016553	KNOB M8-1.25	$3.00
P4016554	Plug A	$2.50
P4016557	COMPRESSION SPRING 0.9 X 5 X 9	$3.75
P4016558	COMPRESSION SPRING 0.9 X 5 X 9	$5.00
P4016576	BRACKET	$30.00
P4016584	OILER 8MM	$3.00
P4016596	STEEL BALL 5MM	$3.00
P4016598	PLUG M10-1.5 X 1	$3.00

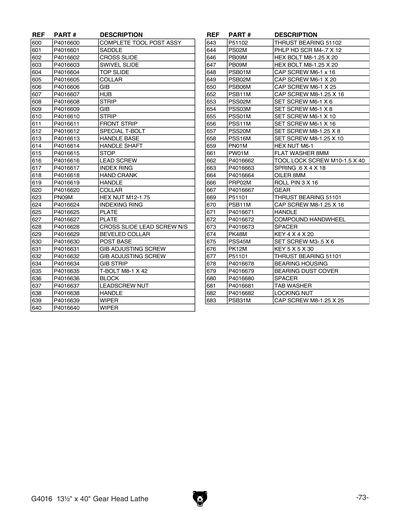

P4016600	COMPLETE TOOL POST ASSY	$351.00
P9036509	HANDLE	$8.25
PK15M	KEY 5 X 5 X 35	$1.00
PN01M	HEX NUT M6-1	$1.00
PN06M	HEX NUT M5-.8	$1.00
PRP03M	ROLL PIN 5 X 20	$1.25
PRP45M	ROLL PIN 5 X 32	$1.00
PRP83M	ROLL PIN 8 X 12	$1.00
PSB01M	*use Pcap01m*	$1.00
PSB06M	*USE PCAP06M*	$1.00
PSB13M	*use Pcap13m*	$1.00
PSB24M	*use Pcap24m*	$1.00
PSB26M	*use Pcap26m*	$1.00
PSS01M	SET SCREW M6-1 X 10	$1.25
PSS02M	SET SCREW M6-1 X 6	$1.00
PSS29M	SET SCREW M6-1 X 35	$1.00
PSS34M	SET SCREW M5-.8 X 16	$1.00
PW04M	FLAT WASHER 10MM	$1.00
P4016504	COVER	$54.00
P4016507	GIB	$18.00
P4016508	HANDLE BODY	$18.00
P4016513	GEAR PIN 60T	$6.00
P4016524	SHIFT LEVER	$30.00
P4016525	SHIFT HANDLE	$18.00
P4016528	BRACKET	$51.00
P4016529	HALF NUT 22 X 41 X 3.175	$157.50
P4016530	WORM	$50.00

Ref #	Part #	Description	Price	Qty
