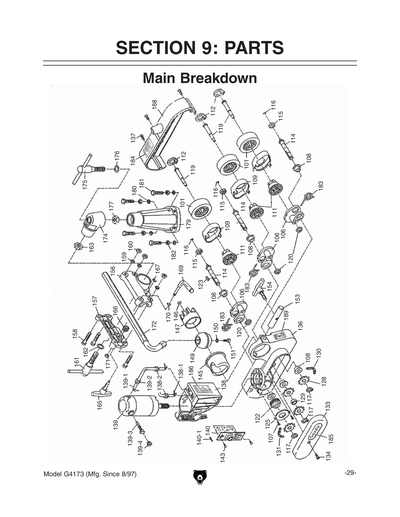

G4173 MAIN DIAGRAM

While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.


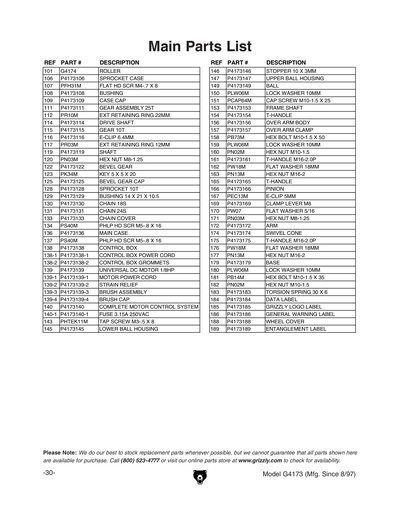

Ref #	Part #	Description	Price	Qty

R0-07	G4174	Synthetic Rubber Roller for G4173	$11.95
01D	P417301D	DISCDFRAME KIT	$79.00
01D-1	P417301D-1	DISCDFRAME	$72.50
01D-2	P417301D-2	DISCDBUSHING	$2.50
02D	P417302D	DISCDSPROCKET CASE KIT	$125.00
02D-1	P417302D-1	*USE P4173106*	$35.00
02D-2	P417302D-2	*USE P4173183*	$1.75
02D-3	P417302D-3	*use P4173108*	$2.50
02D-4	P417302D-4	*USE P4173109*	$3.00
03D	P417303D	DISCDGEAR AND KIT	$38.25
03D-1	P417303D-1	*USE P4173111*	$12.25
03D-3	PR10M	EXT RETAINING RING 22MM	$1.00
04D	P417304D	DISCDDRIVING SHAFT KIT	$60.25
04D-1	P417304D-1	*use P4173114*	$16.25
04D-2	P417304D-2	*USE P4173115*	$2.75
04D-3	P417304D-3	*USE P4173116*	$1.00
04D-4	PR03M	EXT RETAINING RING 12MM	$1.00
05D	P417305D	DISCDSHAFT KIT	$27.00
05D-1	P417305D-1	*USE P4173119*	$9.00
05D-3	PN03M	HEX NUT M8-1.25	$1.00
06D	P417306D	DISCDBEVEL GEAR KIT	$34.25
06D-1	P417306D-1	*USE P4173122*	$34.25
06D-2	PK34M	KEY 5 X 5 X 20	$1.00
07D	P417307D	DISCDBEVEL GEAR CAP KIT	$3.25
07D-1	P417307D-1	*USE P4173125*	$2.50
07D-2	PS38M	PHLP HD SCR M4-.7 X 10	$1.00
08D	P417308D	DISCDSPROCKET KIT	$29.25
08D-1	P417308D-1	*USE P4173128*	$4.00
08D-2	P417308D-2	BUSHING 14 X 21 X 10.5	$1.00
08D-3	P417308D-3	*USE P4173130*	$1.50
08D-4	P417308D-4	*USE P4173131*	$2.50
09D	P417309D	DISCDBACK COVER KIT	$16.25
09D-1	P417309D-1	*use P4173133*	$16.25
09D-2	PS40M	PHLP HD SCR M5-.8 X 16	$1.00
10D	P417310D	DISCDFRONT COVER KIT	$35.75
10D-1	P417310D-1	*USE P4173188*	$35.75
11D	P417311D	*USE P4173138*	$66.00
12D	P417312D	*USE P4173139*	$106.15
13D	P417313D	*USE P4173140*	$93.75
14D	P417314D	*USE P4173140*	$6.50
14D-1	P417314D-1	DISCDPLATE	$6.50
14D-2	P417314D-2	*USE PHTEK11M*	$1.00
15D	P417315D	discdball Joint Assy	$24.50
15D-1	P417315D-1	*USE P4173145*	$12.25
15D-2	P417315D-2	*USE P4173146*	$1.75
15D-3	P417315D-3	*USE P4173147*	$12.25
16D	P417316D	discdball Kit	$22.00
16D-1	P417316D-1	*USE P4173149*	$22.00
16D-2	PLW06M	LOCK WASHER 10MM	$1.00
16D-3	PSB64M	*use Pcap64m*	$1.00
17D	P417317D	discdhoriz Bar Kit	$17.25
17D-1	P417317D-1	*USE P4173153*	$4.00
17D-2	P417317D-2	*USE P4173154*	$11.50
18D	P417318D	discdoverarm Assy	$60.25
18D-1	P417318D-1	*USE P4173156*	$31.00
18D-2	P417318D-2	*USE P4173157*	$17.25
18D-3	PB73M	HEX BOLT M10-1.5 X 50	$1.00
18D-5	PN02M	HEX NUT M10-1.5	$1.00
18D-6	P417318D-6	*USE P4173161*	$11.50
18D-7	PW18M	FLAT WASHER 18MM	$1.00
18D-8	PN13M	HEX NUT M16-2	$1.00
19D	P417319D	DISCDHANDLE KIT	$18.75
19D-1	P417319D-1	*USE P4173165*	$16.25
19D-2	P417319D-2	*USE P4173166*	$2.00
19D-3	P417319D-3	*USE PEC13M*	$1.00
20D	P417320D	DISCDLEVER KIT	$7.50
20D-1	P417320D-1	*USE P4173169*	$4.75
20D-2	PW07	FLAT WASHER 5/16	$1.25
21D	P417321D	*USE P4173172*	$79.75
22D	P417322D	DISCDSWIVEL CONE KIT	$35.75
22D-1	P417322D-1	*USE P4173174*	$8.50
22D-2	P417322D-2	*USE P4173175*	$11.50
23D	P417323D	DISCDBASE KIT	$54.50
23D-1	P417323D-1	*use P4173179*	$53.75
23D-3	PB14M	HEX BOLT M10-1.5 X 35	$1.25

Ref #	Part #	Description	Price	Qty
