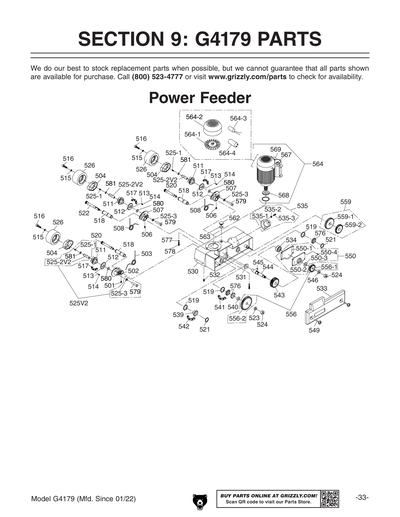

G4179 MAIN DIAGRAM

While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.


Ref #	Part #	Description	Price	Qty

1B	P417901B	discdright Sprocket Case Assembly	$18.25
1B-1	P417901B-1	*USE P4179501*	$1.00
1B-2	P417901B-2	*use P4179502*	$21.25
1B-3	P417901B-3	*USE P4179503*	$3.00
1B-4	P417901B-4	*USE P4179504*	$2.00
1B-5	PFH25M	FLAT HD SCR M4-.7 X 12	$1.00
2B	P417902B	discdleft Sprocket Case Assembly	$21.25
2B-1	P417902B-1	*use P4179506*	$1.00
2B-2	P417902B-2	*use P4179507*	$21.25
2B-3	P417902B-3	*use P4179508*	$3.00
2B-4	P417902B-4	*use P4179533*	$4.00
2B-5	PFH25M	FLAT HD SCR M4-.7 X 12	$1.00
3B	P417903B	discdroller Supporter Assembly	$24.50
3B-1	P417903B-1	*USE P4179511*	$12.25
3B-2	P417903B-2	*USE P4179512*	$13.00
3B-3	PLW01M	LOCK WASHER 5MM	$1.00
3B-4	PSB24M	*use Pcap24m*	$1.00
3B-5	P417903B-5	*USE P4179515*	$1.00
3B-6	P417903B-6	*USE P4179516*	$1.00
4B	P417904B	*USE P4179517*	$14.00
5B	P417905B	discdtube Assembly	$20.50
5B-1	P417905B-1	*USE P4179518*	$20.50
5B-2	P109305A-2	*USE PR17M*	$1.00
6B	P417906B	discdtransmission Assembly	$30.25
6B-1	P417906B-1	*USE P4179520*	$29.25
6B-2	PR47M	EXT RETAINING RING 13MM	$1.00
7B	P417907B	discdsprocket Shaft Assembly	$31.00
7B-1	P417907B-1	*USE P4179522*	$31.00
7B-2	PW01	FLAT WASHER 1/2	$1.00
7B-3	PN09M	HEX NUT M12-1.75	$1.00
8B	P417908B	*USE P4179525*	$18.75
8B-1	P417908B-1	*use P4179525-1*	$1.00
8B-2	P417908B-2	*USE P4179525-2*	$18.00
8B-3	PW06M	FLAT WASHER 12MM	$1.00
8B-4	PN09M	HEX NUT M12-1.75	$1.00
9B	P417909B	discdframe Assembly	$300.00
9B-1	P417909B-1	*USE P4179530*	$238.75
9B-2	P417909B-2	*USE P4179531*	$1.00
9B-3	PSS01M	SET SCREW M6-1 X 10	$1.00
11B	P417911B	*USE P4179533*	$35.75
13B	P417913B	*USE P4179535*	$16.25
13B-1	P417913B-1	*USE P4179535-1*	$16.25
13B-2	PLW04M	LOCK WASHER 8MM	$1.00
13B-3	PSB31M	*use Pcap31m*	$1.00
14B	P417914B	discdtransmission Assembly	$38.25
14B-1	P417914B-1	*USE P4179539*	$4.75
14B-2	P417914B-2	*USE P4179576*	$4.00
14B-3	P417914B-3	*USE P4179540*	$1.00
14B-4	P417914B-4	*USE P4179541*	$4.75
14B-5	P417914B-5	*USE P4179542*	$3.00
17B	P417917B	discdworm Gear Shaft Assembly	$89.50
17B-1	P417917B-1	*USE P4179543*	$61.00
17B-2	P417917B-2	*use P4179544*	$27.75
17B-3	PK81M	KEY 6 X 6 X 12	$1.00
17B-4	PW01	FLAT WASHER 1/2	$1.00
17B-5	PN09M	HEX NUT M12-1.75	$1.00
18A	P417918A	*USE P4179549*	$9.75
18B	P417918B	*USE P4179550*	$25.25
18B-1	P417918B-1	*USE P4179550-1*	$1.50
18B-2	P417918B-2	*use P4179550-2*	$21.25
18B-3	P417918B-3	*USE P4179550-3*	$1.00
18B-4	PSB01M	*use Pcap01m*	$1.00
19B	P417919B	*use P4179556*	$46.50
19B-1	P417919B-1	*USE P4179556-1*	$17.25
19B-2	P417919B-2	*USE P4179556-2*	$29.25
20B	P417920B	*use P4179559*	$44.00
20B-1	P417920B-1	*USE P4179559-1*	$24.50
20B-2	P417920B-2	*USE P4179559-2*	$19.50
21A	P417921A	discdoil Cap Assembly	$1.00
21A-1	P417921A-1	*use P4179521-1*	$1.00
21A-2	P417921A-2	*use P4179521-2*	$1.00
25B	P417925B	MOTOR (1/2 HP/WORM SHAFT)	$166.00
25B-1	P417925B-1	*USE P4179525-1*	$2.00
25B-2	P417925B-2	discdmotor Cover Front	$25.50
25B-3	P417925B-3	discdmotor Shaft	$52.50
25B-4	P417925B-4	discdmotor Frame	$130.90
25B-5	P417925B-5	discdmotor Cover Back	$11.00
25B-6	P417925B-6	*USE P4179564-1*	$15.00
25B-7	P417925B-7	*use P4179566*	$1.00
25B-8	P417925B-8	*use P4179564-2*	$17.00
25B-9	PS02M	PHLP HD SCR M4-.7 X 12	$1.00
26B	P417926B	*USE P4179567*	$83.50
26B-1	P417926B-1	*USE P4179567*	$57.00
36A	P417936A	*USE P4179568*	$1.00
46A	P417946A	*USE P4179569*	$27.00
