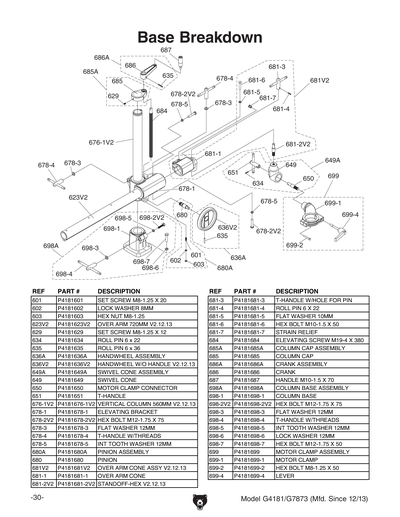

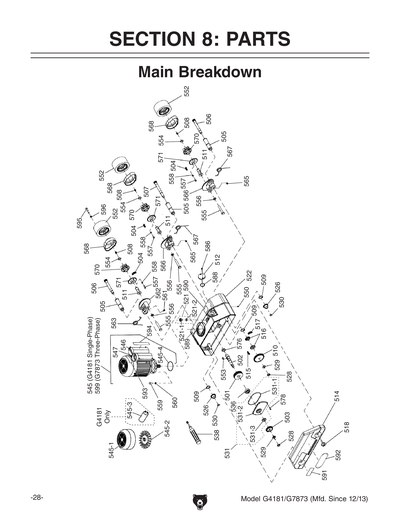

G4181 BASE DIAGRAM

While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.


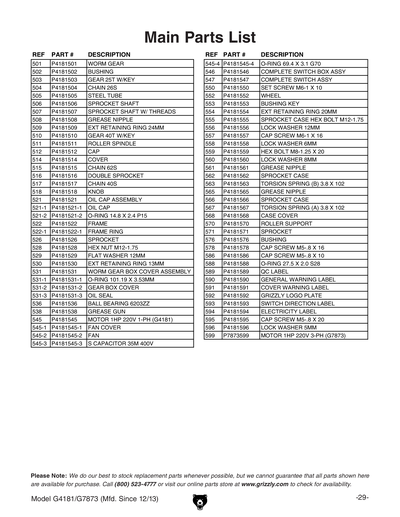

Ref #	Part #	Description	Price	Qty

601	PSS09M	SET SCREW M8-1.25 X 20	$1.00
602	PLW04M	LOCK WASHER 8MM	$1.00
603	PN03M	HEX NUT M8-1.25	$1.00
623	P4181623	OVER ARM 720MM	$84.50
627	P4181627	Rack 650mm	$25.25
629	PSS14M	SET SCREW M8-1.25 X 12	$1.00
634	PRP71M	ROLL PIN 6 X 22	$1.00
635	PRP31M	Roll Pin 6 X 36	$2.25
636	P4181636	HANDWHEEL	$8.50
649	P4181649	SWIVEL CONE	$34.00
650	P4181650	STUD	$4.25
651	P4181651	T-HANDLE	$8.25
657	PSB50M	*use Pcap50m*	$1.00
676	P4181676	VERTICAL COLUMN ASSEMBLY	$77.00
676-1	P4181676-1	VERTICAL COLUMN 560MM	$70.00
676-2	P4181676-2	ELEVATING KEY 450 X 8T	$6.00
676-4	PSB24M	*use Pcap24m*	$1.00
678	P4181678	Elevating Bracket Assy	$273.75
678-1	P4181678-1	ELEVATING BRACKET	$265.00
678-2	P4181678-2	STUD M12-1.75 X 70	$1.25
678-3	PW06M	FLAT WASHER 12MM	$1.00
678-4	P4181678-4	T-HANDLE	$8.50
680	P4181680	PINION	$6.00
681	P4181681	Over Arm Cone Assy	$83.00
681-1	P4181681-1	OVER ARM CONE	$69.50
681-2	P4181681-2	STUD	$8.25
681-3	P4181681-3	T-HANDLE	$8.25
681-5	PW04M	FLAT WASHER 10MM	$1.00
681-6	PB73M	HEX BOLT M10-1.5 X 50	$1.00
684	P4181684	ELEVATING SCREW M19-4 X 380	$10.25
685	P4181685	COLUMN CAP	$27.00
687	P4181687	HANDLE	$2.50
698	P4181698	BASE ASSEMBLY	$127.50
698-1	P4181698-1	COLUMN BASE	$114.50
698-2	P4181698-2	STUD M12-1.75 X 70	$1.50
698-4	P4181698-4	T-HANDLE	$8.75
699	P4181699	MOTOR CLAMP ASSEMBLY	$72.75
699-1	P4181699-1	MOTOR CLAMP	$67.00
699-2	PB166M	*USE PB22M*	$1.00
699-4	P4181699-4	LEVER	$5.50

Ref #	Part #	Description	Price	Qty
