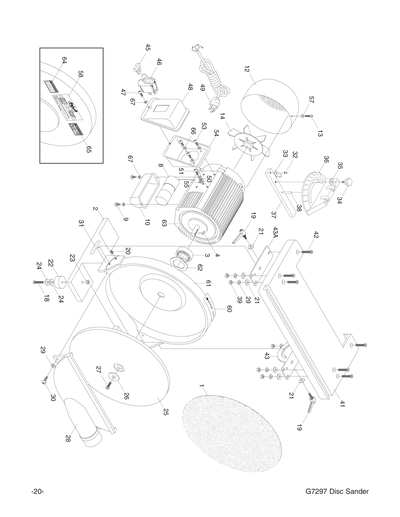

G7297 MAIN DIAGRAM

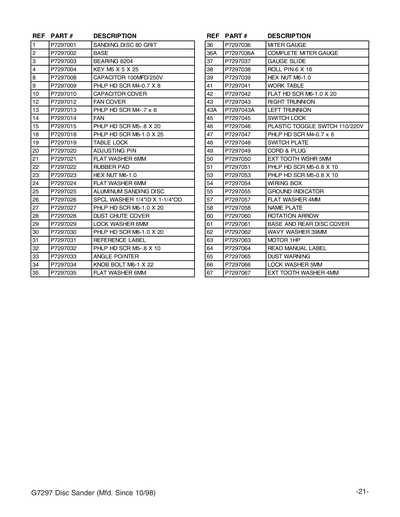

Ref # Part # Description Price Qty
1 G4255 12" Sanding Disc, A80 PSA, 2 pc. $5.95
1 P7297001 SANDING DISC 80 GRIT $5.00
2 P7297002 BASE $26.00
2 P7297002 BASE $26.00
3 P6204 BALL BEARING 6204ZZ $3.00
3 P6204 BALL BEARING 6204ZZ $3.00
4 PK23M KEY 5 X 5 X 25 $1.00
4 PK23M KEY 5 X 5 X 25 $1.00
8 PC100A CAPACITOR 100MFD 250V $5.00
8 PC100A CAPACITOR 100MFD 250V $5.00
9 PS07M PHLP HD SCR M4-.7 X 8 $1.00
9 PS07M PHLP HD SCR M4-.7 X 8 $1.00
10 P7297010 CAPACITOR COVER $1.00
10 P7297010 CAPACITOR COVER $1.00
12 P7297012 FAN COVER $2.00
12 P7297012 FAN COVER $2.00
13 PS07M PHLP HD SCR M4-.7 X 8 $1.00
13 PS17M PHLP HD SCR M4-.7 x 6 $1.00
14 P7297014 FAN $1.00
14 P7297014 FAN $1.00
15 PS06M PHLP HD SCR M5-.8 x 20 $1.00
15 PS06M PHLP HD SCR M5-.8 x 20 $1.00
18 PS47M PHLP HD SCR M6-1 X 25 $1.00
18 PS47M PHLP HD SCR M6-1 X 25 $1.00
19 P7297019 TABLE LOCK $1.75
19 P7297019 TABLE LOCK $1.75
20 P7297020 ADJUSTING PIN $1.00
21 PW03M FLAT WASHER 6MM $1.00
21 PW03M FLAT WASHER 6MM $1.00
22 P7297022 RUBBER PAD $1.00
22 P7297022 RUBBER PAD $1.00
23 PN01M HEX NUT M6-1 $1.00
23 PN01M HEX NUT M6-1 $1.00
24 PW03M FLAT WASHER 6MM $1.00
24 PW03M FLAT WASHER 6MM $1.00
25 P7297025 ALUMINUM SANDING DISC $28.75
25 P7297025 ALUMINUM SANDING DISC $28.75
26 P7297026 SPCL WASHER 1/4"ID X 1-1/4"OD $1.00
26 P7297026 SPCL WASHER 1/4"ID X 1-1/4"OD $1.00
27 PS26M PHLP HD SCR M6-1 X 20 $1.00
27 PS26M PHLP HD SCR M6-1 X 20 $1.00
28 P7297028 DUST CHUTE COVER $4.25
28 P7297028 DUST CHUTE COVER $4.25
29 PLW03M LOCK WASHER 6MM $1.00
29 PLW03M LOCK WASHER 6MM $1.00
30 PS26M PHLP HD SCR M6-1 X 20 $1.00
30 PS26M PHLP HD SCR M6-1 X 20 $1.00
31 P7297031 REFERENCE LABEL $1.00
31 P7297031 REFERENCE LABEL $1.00
32 PSBS17M *discd*button Hd Cap Scr M5-.8 X 6 $0.75
32 PS19M PHLP HD SCR M5-.8 x 6 $1.00
33 P7297033 ANGLE POINTER $1.00
33 P7297033 ANGLE POINTER $1.00
34 P7297034 KNOB BOLT M6-1 X 22 $1.00
34 P7297034 KNOB BOLT M6-1 X 22 $1.00
35 PW03M FLAT WASHER 6MM $1.00
35 PW03M FLAT WASHER 6MM $1.00
36 P7297036 MITER GAUGE $1.25
36 P7297036 MITER GAUGE $1.25
36A P7297036 MITER GAUGE $1.25
36A P7297036A COMPLETE MITER GAUGE $5.25
37 P7297037 GAUGE SLIDE $2.00
37 P7297037 GAUGE SLIDE $2.00
38 P7297038 ***USE PRP59M*** $1.00
38 PRP59M ROLL PIN 5 X 12 $1.00
39 PN01M HEX NUT M6-1 $1.00
39 PN01M HEX NUT M6-1 $1.00
41 P7297041 WORK TABLE $48.75
41 P7297041 WORK TABLE $48.75
42 PFH06M FLAT HD SCR M6-1 X 20 $1.00
42 PFH06M FLAT HD SCR M6-1 X 20 $1.00
43 P7297043 LEFT TRUNNION $1.00
43 P7297043 LEFT TRUNNION $1.00
43A P7297043 LEFT TRUNNION $1.00
43A P7297043A RIGHT TRUNNION $24.50
45 P7297045 SWITCH LOCK $2.25
45 P7297045 SWITCH LOCK $2.25
46 PSW06 PADDLE SWITCH 110/220V WITH KEY $4.00
46 PSW07 PLASTIC TOGGLE SWTCH 110/220V $3.25
47 PS17M PHLP HD SCR M4-.7 x 6 $1.00
47 PS17M PHLP HD SCR M4-.7 x 6 $1.00
48 P7297048 SWITCH PLATE $1.25
48 P7297048 SWITCH PLATE $1.25
49 P7297049 CORD & PLUG $2.50
49 P7297049 CORD & PLUG $2.50
50 PTLW02M EXT TOOTH WASHER 5MM $1.00
50 PTLW02M EXT TOOTH WASHER 5MM $1.00
51 PS09M PHLP HD SCR M5-.8 X 10 $1.00
51 PS09M PHLP HD SCR M5-.8 X 10 $1.00
53 PS09M PHLP HD SCR M5-.8 X 10 $1.00
53 PS09M PHLP HD SCR M5-.8 X 10 $1.00
54 P7297054 WIRING BOX $1.50
54 P7297054 WIRING BOX $1.50
55 P7297055 GROUND INDICATOR $1.00
55 P7297055 GROUND INDICATOR $1.00
57 PW05M FLAT WASHER 4MM $1.00
57 PW05M FLAT WASHER 4MM $1.00
58 P7297058 NAME PLATE $3.25
58 P7297058 NAME PLATE $3.25
60 P7297060 ROTATION ARROW $1.75
60 P7297060 ROTATION ARROW $1.75
62 P7297062 WAVY WASHER 39MM $14.00
62 P7297062 WAVY WASHER 39MM $14.00
63 P7297063 MOTOR 1HP $83.30
63 P7297063 MOTOR 1HP $83.30
64 P7297064 READ MANUAL LABEL $14.00
64 P7297064 READ MANUAL LABEL $14.00
65 P7297065 DUST WARNING $14.00
65 P7297065 DUST WARNING $14.00
66 PLW01M LOCK WASHER 5MM $1.00
66 PLW01M LOCK WASHER 5MM $1.00
67 PTLW06M ***USE PTLW01M*** $0.75
67 PTLW01M EXT TOOTH WASHER 4MM $1.00
