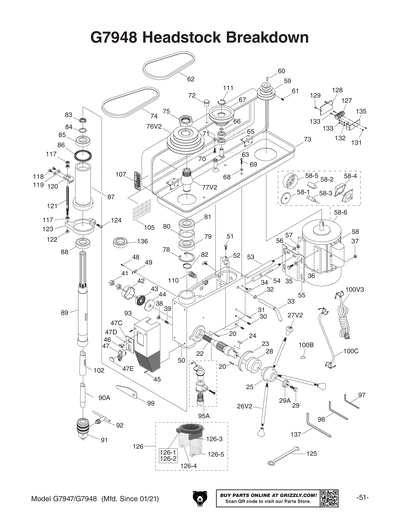

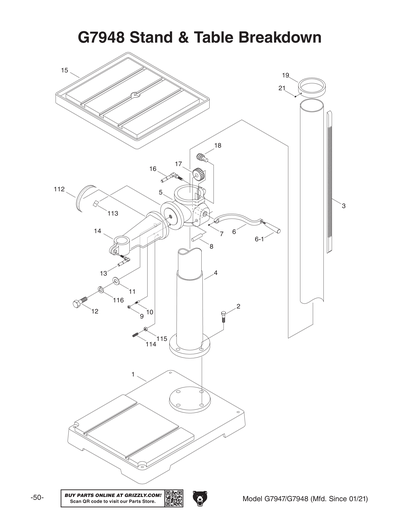

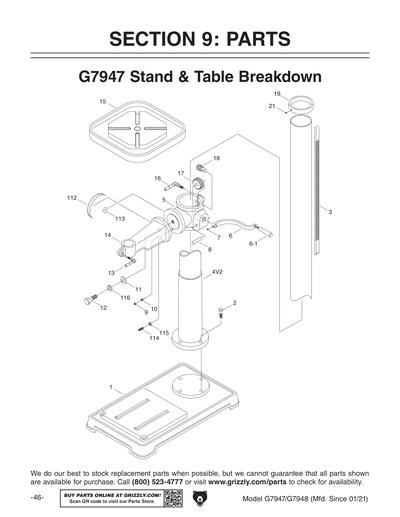

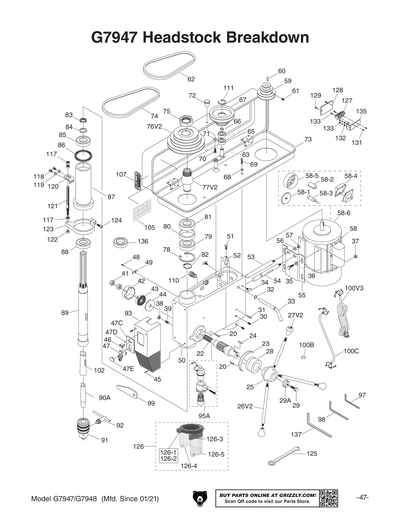

G7948 MAIN DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

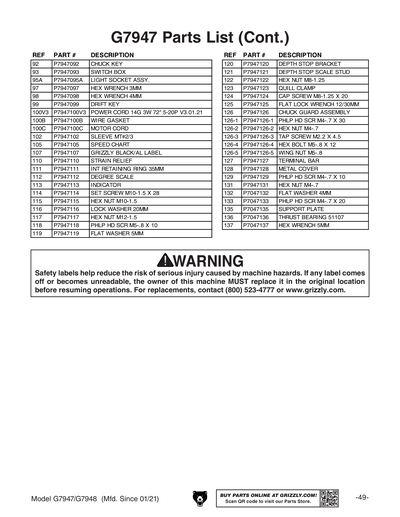

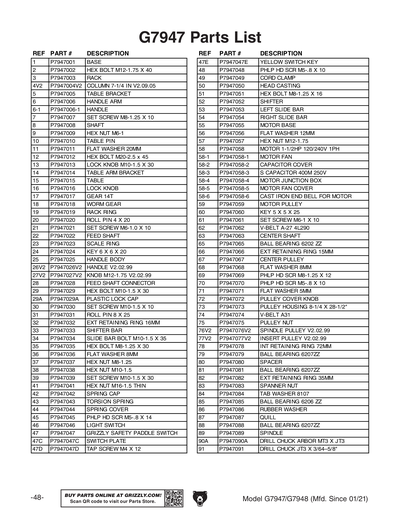

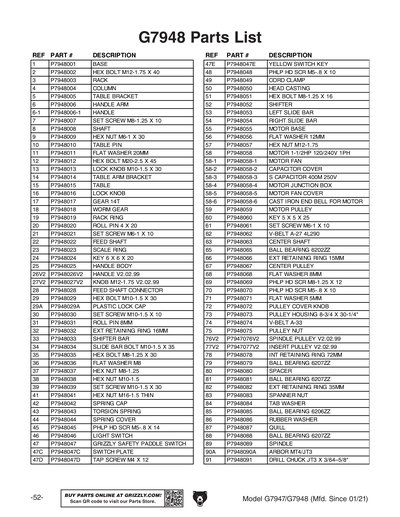

Ref # Part # Description Price Qty
20 PRP04M ROLL PIN 4 X 24 $1.25
22 P7947022 FEED SHAFT $13.75
23 P7947023 SCALE RING $4.50
24 PK07M Key 6 X 6 X 20 $1.00
25 P7947025 HANDLE BODY $8.75
26 P7947026 HANDLE V2.02.99 $2.25
27 P7947027 KNOB V2.02.99 $1.50
28 P7947028 FEED SHAFT CONNECTOR $4.50
29 PB01M HEX BOLT M10-1.5 X 30 $1.00
29A P7947029A PLASTIC LOCK CAP $3.50
30 PSS09M SET SCREW M8-1.25 X 20 $1.00
31 P7947031 ROLL PIN 8 X 105MM $1.00
32 PR05M EXT RETAINING RING 15MM $1.00
33 P7947033 SHIFTER BAR $5.00
34 P7943034 SLIDE BAR BOLT M10-1.5 X 25 $3.25
35 PB07M HEX BOLT M8-1.25 X 25 $1.00
36 PW01M FLAT WASHER 8MM $1.00
37 PN03M HEX NUT M8-1.25 $1.00
38 PN02M HEX NUT M10-1.5 $1.00
39 PSS13M SET SCREW M10-1.5 x 12 $1.00
41 PN31M HEX NUT M12-1.5 $1.00
42 P7947042 SPRING CAP $5.25
43 P7947043 TORSION SPRING $11.00
44 P7947044 SPRING COVER $1.00
45 PS08M PHLP HD SCR M5-.8 X 12 $1.00
46 P7943097 SWITCH (LIGHT) $4.25
47 PSW06 ***USE G8988*** $4.00
47C P7947047C SWITCH PLATE $1.00
47D PHTEK6M TAP SCREW M4 X 16 $1.00
47E P7942020A YELLOW SWITCH KEY $1.00
48 PS14M PHLP HD SCR M6-1 X 12 $1.00
49 P7943049 CORD CLAMP $1.00
50 P7947050 HEAD CASTING $15.75
51 PB03M HEX BOLT M8-1.25 X 16 $1.00
52 P7947052 SHIFTER $1.75
53 P7947053 SLIDE BAR LEFT $1.75
54 P7947054 SLIDE BAR RIGHT $1.75
55 P7947055 MOTOR BASE $15.25
56 PW04M FLAT WASHER 10MM $1.00
58 P7948058 Motor 1-1/2hp 1ph 110/220v $130.00
58-1 P7947058-1 MOTOR FAN $5.25
58-2 P7947058-2 CAPACITOR COVER $3.25
58-3 P7947058-3 S Capacitor 400m 250v $14.00
58-4 P7947058-4 WIRING BOX COVER $2.75
58-5 P7947058-5 FAN COVER $7.00
59 P7947059 MOTOR PULLEY $24.00
60 PK23M KEY 5 X 5 X 25 $3.00
61 PSS01M SET SCREW M6-1 X 10 $1.25
62 PVA29 V-belt A29 $8.50
63 P7947063 CENTER SHAFT $6.50
65 P6202 ***SEE EXT DESCRIPTION*** $2.25
66 PR02M EXT RETAINING RING 14MM $1.00
67 P7947067 CENTER PULLEY $17.50
68 PW03M FLAT WASHER 6MM $1.00
70 PS09M PHLP HD SCR M5-.8 X 10 $1.00
71 PW02M FLAT WASHER 5MM $1.00
72 P7943072 KNOB $2.50
73 P7947073 PULLEY HOUSING 8-1/4 X 28-1/2 IN $50.00
74 PVA32 V-belt A32 $9.00
75 P7947075 PULLEY NUT $1.75
76 P7947076 SPINDLE PULLEY V2.02.99 $11.00
77 P7947077 INSERT PULLEY V2.02.99 $17.50
78 PR26M INT RETAINING RING 52MM $2.00
79 P6207 ***SEE EXT DESCRIPTION*** $6.25
80 P7947080 SPACER $1.00
82 PR37M EXT RETAINING RING 32MM $1.00
83 P7947083 SPANNER NUT $1.00
84 P7947084 TAB WASHER 8107 $1.00
85 P6206 ***SEE EXT DESCRIPTION*** $4.50
86 P7947086 RUBBER WASHER $1.00
87 P7947087 QUILL $26.50
89 P7948089 SPINDLE $26.00

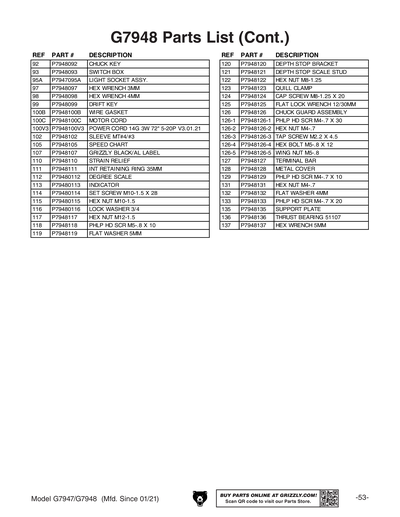

90A P7947090A ARBOR MT3-JT3 V2.03.02 $21.75
91 P7943091 CHUCK $17.50
92 P7943092 CHUCK KEY $1.50
93 P7947093 SWITCH BOX $1.50
94 P7943094 LIGHT BASE $3.50
94A PS06M Phlp Hd Scr M5-.8 X 20 $1.00
95 P7943093 LIGHT BODY $2.25
96 P7943095 Light Screw Plug $1.00
97 PAW03M Wrench Hex 3mm $1.00
98 PAW04M Wrench Hex 4mm $1.00
99 P7943103 WEDGE SHIFTER $1.75
100 PWRCRD110L Power Cord 16awg X 3c X 73"l $18.50
100B P7947100B WIRE GASKET $11.00
100C P7945100 LOCK SHOE $1.00
102 P7948102 ***USE G5715*** $6.50

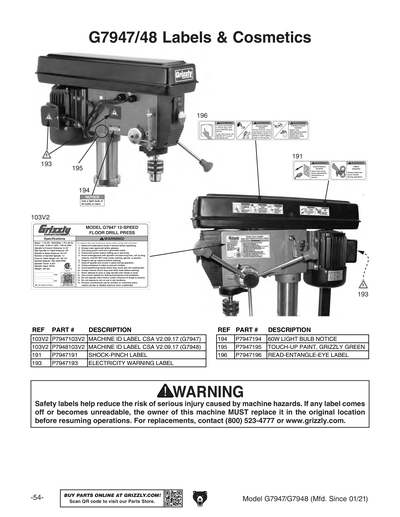

103 P7947103 MACHINE ID LABEL $1.00
105 P7945105 DEPTH GAUGE KIT V2.05.02 $11.50
107 P7943107 GRIZZLY BLACK/AL LABEL $5.25
108 P7947108 DP LIGHTS LABEL $1.50
109 P7947109 DRILL PRESS LABEL $11.00
110 P7947110 STRAIN RELIEF $2.25
111 PR21M INT RETAINING RING 35MM $1.00
Ref # Part # Description Price Qty
