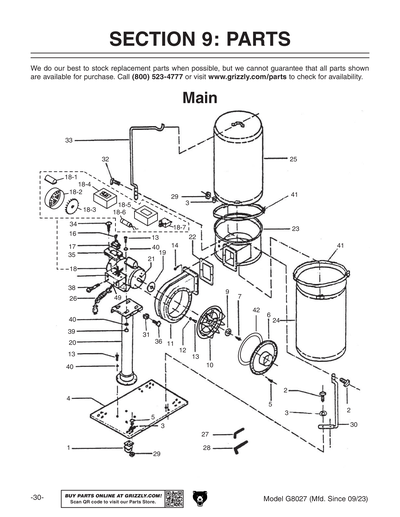

G8027 MAIN DIAGRAM

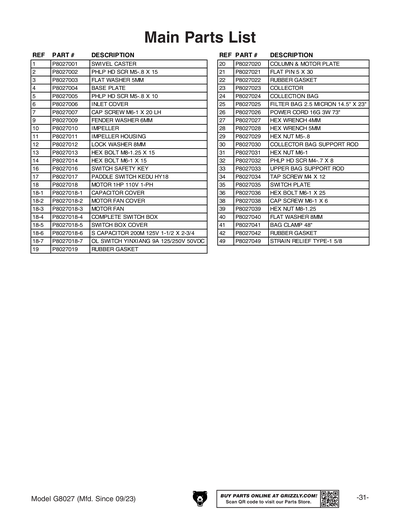

Ref # Part # Description Price Qty
1 P8027001 SWIVEL CASTER $4.00
1 P8027001 SWIVEL CASTER $4.00
2 PS20M PHLP HD SCR M5-.8 X 15 $1.00
2 PS20M PHLP HD SCR M5-.8 X 15 $1.00
3 PW02M FLAT WASHER 5MM $1.00
3 PW02M FLAT WASHER 5MM $1.00
4 P8027004 BASE PLATE $18.25
4 P8027004 BASE PLATE $18.25
5 PS09M PHLP HD SCR M5-.8 X 10 $1.00
5 PS09M PHLP HD SCR M5-.8 X 10 $1.00
6 P8027006 INLET COVER $11.50
6 P8027006 INLET COVER $11.50
7 PB08M HEX BOLT M6-1 X 20 $1.00
7 PB08M HEX BOLT M6-1 X 20 $1.00
8 PSS14M SET SCREW M8-1.25 X 12 $1.00
8 PSS14M SET SCREW M8-1.25 X 12 $1.00
9 P8027009 SPECIAL WASHER $1.00
9 P8027009 SPECIAL WASHER $1.00
10 P8027010 IMPELLER $41.25
10 P8027010 IMPELLER $41.25
11 P8027011 IMPELLER HOUSING $35.75
11 P8027011 IMPELLER HOUSING $35.75
12 PLW04M LOCK WASHER 8MM $1.00
12 PLW04M LOCK WASHER 8MM $1.00
13 PB87M HEX BOLT M8-1.25 X 15 $1.00
13 PB87M HEX BOLT M8-1.25 X 15 $1.00
14 PB18M HEX BOLT M6-1 X 15 $1.00
14 PB18M HEX BOLT M6-1 X 15 $1.00
16 PSW06 PADDLE SWITCH 110/220V WITH KEY $4.00
16 PSW06 PADDLE SWITCH 110/220V WITH KEY $4.00
17 PSW06 PADDLE SWITCH 110/220V WITH KEY $4.00
17 PSW06 PADDLE SWITCH 110/220V WITH KEY $4.00
18 P8027018 MOTOR 1HP 110V 1PH $101.89
18 P8027018 MOTOR 1HP 110V 1PH $101.89
18-1 P8027018-1 CAPACITOR COVER $2.50
18-1 P8027018-1 CAPACITOR COVER $2.50
18-2 P8027018-2 MOTOR FAN COVER $17.25
18-2 P8027018-2 MOTOR FAN COVER $17.25
18-3 P8027018-3 MOTOR FAN $5.25
18-3 P8027018-3 MOTOR FAN $5.25
18-4 P8027018-4 COMPLETE SWITCH BOX $5.25
18-4 P8027018-4 COMPLETE SWITCH BOX $5.25
18-5 P8027018-5 SWITCH BOX COVER $3.25
18-6 PC200E S CAPACITOR 200M 125V 1-1/2 X 3-1/4 $24.00
19 P8027019 RUBBER GASKET $2.25
19 P8027019 RUBBER GASKET $2.25
20 P8027020 COLUMN & MOTOR PLATE $17.50
20 P8027020 COLUMN & MOTOR PLATE $17.50
21 P8027021 FLAT PIN 5 X 30 $1.00
21 P8027021 FLAT PIN 5 X 30 $1.00
22 P8027022 RUBBER GASKET $1.00
22 P8027022 RUBBER GASKET $1.00
23 P8027023 COLLECTOR $36.00
23 P8027023 COLLECTOR $36.00
24 P8027024 COLLECTOR BAG $17.50
24 P8027024 COLLECTOR BAG $17.50
25 P8027025 FILTER BAG $17.50
25 P8027025 FILTER BAG $17.50
26 PWRCRD110L POWER CORD 16-GAUGE 3-WIRE 73"-LENGTH $18.50
26 PWRCRD110L POWER CORD 16-GAUGE 3-WIRE 73"-LENGTH $18.50
27 PAW04M HEX WRENCH 4MM $1.00
27 PAW04M HEX WRENCH 4MM $1.00
28 PAW05M HEX WRENCH 5MM $1.00
28 PAW05M HEX WRENCH 5MM $1.00
29 PN06M HEX NUT M5-.8 $1.00
29 PN06M HEX NUT M5-.8 $1.00
30 P8027030 COLLECTOR BAG SUPPORT ROD $5.25
30 P8027030 COLLECTOR BAG SUPPORT ROD $5.25
31 PN01M HEX NUT M6-1 $1.00
31 PN01M HEX NUT M6-1 $1.00
32 PS07M PHLP HD SCR M4-.7 X 8 $1.00
32 PS07M PHLP HD SCR M4-.7 X 8 $1.00
33 P8027033 UPPER BAG SUPPORT ROD $9.25
33 P8027033 UPPER BAG SUPPORT ROD $9.25
34 PHTEK5M TAP SCREW M4 X 12 $1.00
34 PHTEK5M TAP SCREW M4 X 12 $1.00
35 P8027035 SWITCH PLATE $3.75
35 P8027035 SWITCH PLATE $3.75
36 PB10M HEX BOLT M6-1 X 25 $1.00
36 PB10M HEX BOLT M6-1 X 25 $1.00
38 PS85M PHLP HD SCR M4-.7 X 60 $6.00
38 PS85M PHLP HD SCR M4-.7 X 60 $6.00
39 PN03M HEX NUT M8-1.25 $1.00
39 PN03M HEX NUT M8-1.25 $1.00
40 PW01M FLAT WASHER 8MM $1.00
40 PW01M FLAT WASHER 8MM $1.00
41 P8027041 BAG CLAMP $6.50
41 P8027041 BAG CLAMP $6.50
42 P8027042 RUBBER GASKET $6.25
42 P8027042 RUBBER GASKET $6.25

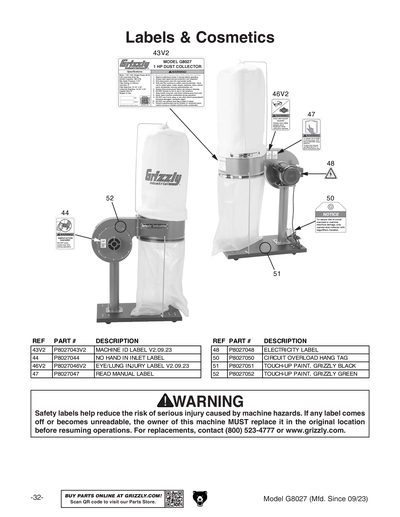

43 P8027043 MACHINE ID LABEL $1.00
43 P8027043 MACHINE ID LABEL $1.00
44 P8027044 NO HAND IN INLET LABEL $1.00
44 P8027044 NO HAND IN INLET LABEL $1.00
45 P8027045 GRIZZLY INDUSTRIAL, INC. LABEL $9.25
45 P8027045 GRIZZLY INDUSTRIAL, INC. LABEL $9.25
47 PLABEL-12 Read Manual 2w X 3.3h $1.00
47 PLABEL-12 Read Manual 2w X 3.3h $1.00
