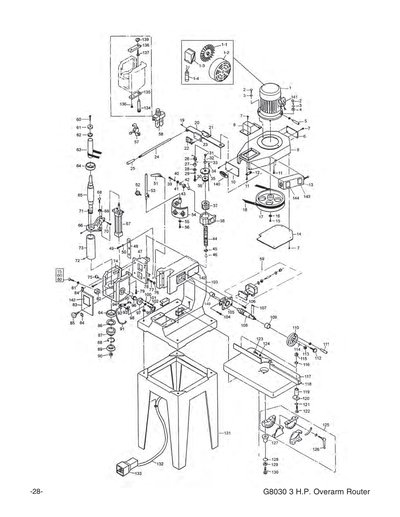

G8030 MAIN DIAGRAM

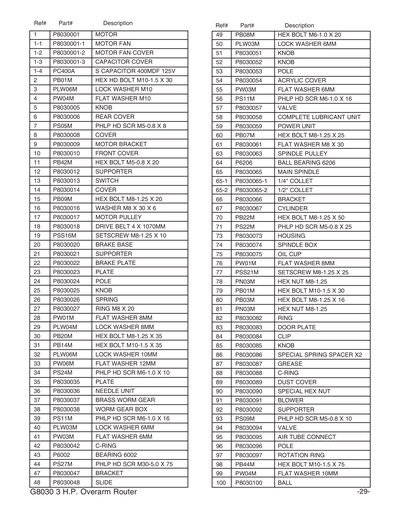

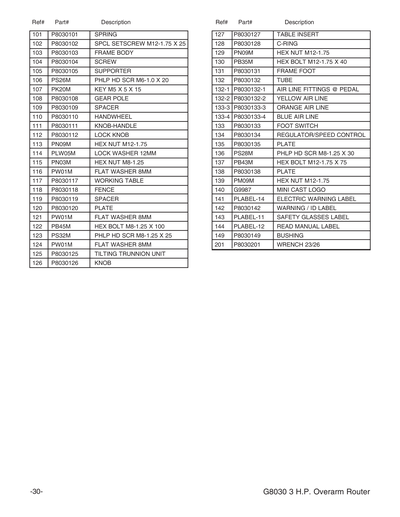

Ref # Part # Description Price Qty
1 P8030001 MOTOR 3HP 220V 50/60HZ 1PH $461.25
1-1 P8030001-1 MOTOR FAN $13.50
1-2 P8030001-2 MOTOR FAN COVER $13.50
1-3 P8030001-3 CAPACTOR COVER $16.25
2 PB01M HEX BOLT M10-1.5 X 30 $1.00
3 PLW06M LOCK WASHER 10MM $1.00
4 PW04M FLAT WASHER 10MM $1.00
5 P8030005 KNOB $8.25
6 P8030006 COVER $16.25
7 PS05M PHLP HD SCR M5-.8 x 8 $1.00
8 P8030008 COVER $42.25
9 P8030009 MOTOR BRACKET $333.45
10 P8030010 COVER $15.00
11 PB42M HEX BOLT M5-.8 X 20 $1.00
12 P8030012 SUPPORTER $7.50
13 P8030013 SWITCH BOX $240.50
14 P8030014 COVER $18.75
15 PB09M HEX BOLT M8-1.25 X 20 $1.00
16 P8030016 WASHER M8 X 30 X 6 $3.75
17 P8030017 MOTOR PULLEY $93.50
18 P8030018 DRIVE BELT 40 X 1070 $65.00
19 PSS16M SET SCREW M8-1.25 X 10 $1.00
20 P8030020 BRAKE BASE $29.25
21 P8030021 SUPPORTER $16.25
22 P8030022 BRAKE PLATE $29.25
23 P8030023 PLATE $16.25
24 P8030024 POLE $12.25
25 P8030025 KNOB $5.00
26 P8030026 SPRING $9.75
27 P8030027 RING M8 X 20 $9.00
28 PW01M FLAT WASHER 8MM $1.00
29 PLW04M LOCK WASHER 8MM $1.00
30 PB20M HEX BOLT M8-1.25 X 35 $1.00
31 PB14M HEX BOLT M10-1.5 X 35 $1.00
32 PLW06M LOCK WASHER 10MM $1.00
33 PW06M FLAT WASHER 12MM $1.00
34 PS24M ***USE PS14M*** $1.00
35 P8030035 PLATE $22.00
36 P8030036 NEEDLE UNIT $13.00
37 P8030037 BRASS WORM GEAR $35.00
38 P8030038 WORM GEAR BOX $132.75
39 PS11M PHLP HD SCR M6-1 X 16 $1.00
40 PLW03M LOCK WASHER 6MM $1.00
41 PW03M FLAT WASHER 6MM $1.00
42 P8030042 C-RING $2.50
43 P8030043 ***USE P6002*** $4.50
44 PS27M PHLP HD SCR M30-5 X 75 $3.50
45 PW04M FLAT WASHER 10MM $1.00
46 PB09M HEX BOLT M8-1.25 X 20 $1.00
47 P8030047 BRACKET $105.75
48 P8030048 SLIDE $40.75
49 PB08M HEX BOLT M6-1 X 20 $1.00
50 PLW03M LOCK WASHER 6MM $1.00
52 P8030052 KNOB $3.00
53 P8030053 POLE $29.25
54 P8030054 ACRYLIC COVER $29.25
55 PW03M FLAT WASHER 6MM $1.00
56 PS11M PHLP HD SCR M6-1 X 16 $1.00
57 P8030057 VALVE $25.25
58 P8030058 COMPLETE LUBRICANT UNIT $113.75
59 P8030059 POWER UNIT $23.75
60 PB07M HEX BOLT M8-1.25 X 25 $1.00
61 P8030061 ***USE PW01M*** $1.50
63 P8030063 SPINDLE PULLEY $68.75
64 P8030064 ***USE P6206*** $45.00
65 P8030065 MAIN SPINDLE $112.50
66 P8030066 BRACKET $72.50
67 P8030067 CYLINDER $105.75
68 PB46M ***USE PB43M*** $0.75
69 PN09M HEX NUT M12-1.75 $1.00
70 PB22M HEX BOLT M8-1.25 X 50 $1.00
71 PS22M PHLP HD SCR M5-.8 X 25 $2.50
73 P8030073 HOUSING $281.25
74 P8030074 SPINDLE BOX $330.00
75 P8030075 GREASE CUP $2.00
76 PW01M FLAT WASHER 8MM $1.00
77 PSS21M SET SCREW M8-1.25 X 25 $1.00
78 PN03M HEX NUT M8-1.25 $1.00
79 PB01M HEX BOLT M10-1.5 X 30 $1.00
80 P8030080 SCREW M8-1.25 X 15 $1.25
81 PN03M HEX NUT M8-1.25 $1.00
82 P8030082 RING $36.75
83 P8030083 DOOR PLATE $58.50
84 P8030084 CLIP $4.50
85 P8030085 KNOB $5.00
86 P8030086 PLATE $14.75
87 P8030087 *DISCD*GREASE $15.00
88 P8030088 ***USE PR38M*** $3.00
89 P8030089 DUST COVER $32.50
90 P8030090 SPECIAL HEX NUT $48.75
91 P8030091 BLOWER $18.00
92 P8030092 SUPPORTER $12.25
93 PS09M PHLP HD SCR M5-.8 X 10 $1.00
94 P8030094 VALVE $23.75
95 P8030095 AIR TUBE CONNECT $7.50
96 P8030096 POLE $29.25
97 P8030097 ROTATION RING $35.75
98 PB44M HEX BOLT M10-1.5 X 75 $1.00
99 PW04M FLAT WASHER 10MM $1.00
051 P8030051 KNOB $7.50
100 P8030100 BALL $1.25
