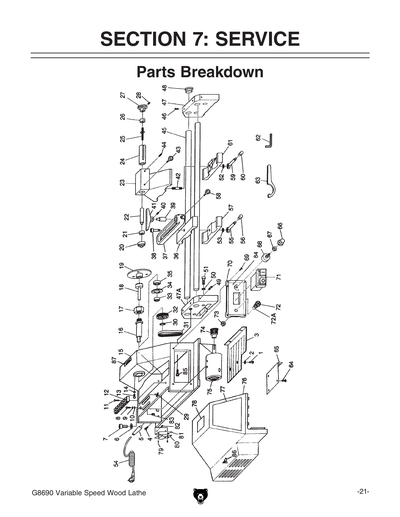

G8690 MAIN DIAGRAM

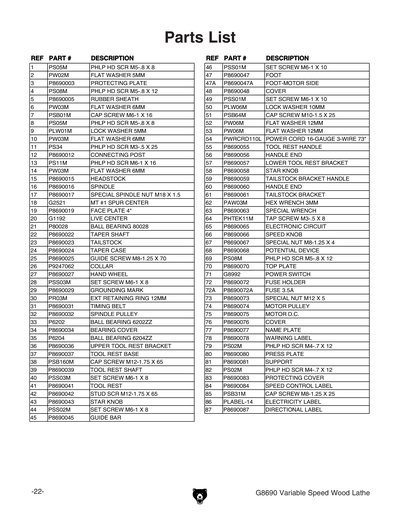

Ref # Part # Description Price Qty
1 PS05M PHLP HD SCR M5-.8 x 8 $1.00
2 PW02M FLAT WASHER 5MM $1.00
3 P8690003 PROTECTING PLATE $3.00
4 PS08M PHLP HD SCR M5-.8 X 12 $1.00
5 P8690005 RUBBER SHEATH $1.00
6 PW03M FLAT WASHER 6MM $1.00
7 PSB01M CAP SCREW M6-1 X 16 $1.00
8 PS05M PHLP HD SCR M5-.8 x 8 $1.00
9 PLW01M LOCK WASHER 5MM $1.00
10 P8690010 ***USE PW03M*** $0.75
11 PS34 PHLP HD SCR M3-.5 X 25 $1.00
12 P8690012 CONNECTING POST $1.50
13 PS11M PHLP HD SCR M6-1 X 16 $1.00
14 PW03M FLAT WASHER 6MM $1.00
15 P8690015 HEADSTOCK $57.00
16 P8690016 SPINDLE $7.00
17 PN15M HEX NUT M18-1.5 $3.00
18 G2521 Spur Center For Wood Lathes - MT1 $11.95
19 P8690019 FACE PLATE 4" $6.50
20 G1192 Live Center for Wood Lathes - MT1 $15.95
23 P8690023 TAILSTOCK $16.25
24 P8690024 TAPER CASE $4.00
25 P8690025 GUIDE SCREW M8-1.25 X 70 $1.75
26 P8690026 ***USE P9247062*** $1.00
27 P8690027 HAND WHEEL $1.50
28 PSS03M SET SCREW M6-1 X 8 $1.00
29 P8690029 GROUNDING MARK $1.00
30 P8690030 ***USE PR03M*** $1.00
31 P8690031 TIMING BELT $4.25
32 P8690032 SPINDLE PULLEY $1.00
33 P8690033 ***USE P6202*** $14.75
34 P8690034 BEARING COVER $1.00
35 P8690035 ***USE P6204*** $14.75
36 P8690036 UPPER TOOL REST BRACKET $1.25
37 P8690037 TOOL REST BASE $3.25
38 P8690038 HEX HEAD SCREW M12 X 65 $1.00
39 P8690039 TOOL REST SHAFT $1.25
40 PSS03M SET SCREW M6-1 X 8 $1.00
41 P8690041 TOOL REST $4.00
42 P8690042 STUD SCREW M12-1.75 X 65 $1.00
43 P8690043 STAR KNOB $1.00
44 PSS02M SET SCREW M6-1 X 6 $1.00
45 P8690045 GUIDE BAR $8.25
46 PSS01M SET SCREW M6-1 X 10 $1.00
47 P8690047 FOOT $16.25
48 P8690048 COVER $1.00
49 PSS01M SET SCREW M6-1 X 10 $1.00
50 PLW06M LOCK WASHER 10MM $1.00
51 PSB64M CAP SCREW M10-1.5 X 25 $1.00
52 PW06M FLAT WASHER 12MM $1.00
53 PW06M FLAT WASHER 12MM $1.00
54 P8690054 ***USE PWRCRD110L*** $6.49
55 P8690055 TOOL REST HANDLE $2.50
56 P8690056 HANDLE END $1.00
57 P8690057 LOWER TOOL REST BRACKET $3.25
58 P8690058 STAR KNOB $1.00
59 P8690059 TAILSTOCK BRACKET HANDLE $2.50
60 P8690060 HANDLE END $1.00
61 P8690061 TAILSTOCK BRACKET $3.25
62 PAW03M HEX WRENCH 3MM $1.00
63 P8690063 SPECIAL WRENCH $1.00
64 P8690064 ***USE PHTEK11M*** $0.75
65 P8690065 ELECTRONIC CIRCUIT $81.25
66 P8690066 *discd*speed Knob $2.95
67 P8690067 SPECIAL NUT 8-1.25 X 4 $1.00
68 P8690068 POTENTIAL DEVICE $1.00
69 PS08M PHLP HD SCR M5-.8 X 12 $1.00
70 P8690070 TOP PLATE $1.00
71 G8992 Magnetic On-Off Switch - 110V, 6 Amps $7.95
72 P8690072 FUSE HOLDER $1.00
73 P8690073 SPECIAL NUT M12 X 5 $1.00
74 P8690074 MOTOR PULLEY $1.00
75 P8690075 MOTOR D.C. $75.00
76 P8690076 COVER $13.00
77 P8690077 NAME PLATE $1.00
78 P8690078 WARNING LABEL $1.00
79 PS02M PHLP HD SCR M4-.7 X 12 $1.00
80 P8690080 PRESS PLATE $1.00
81 P8690081 SUPPORT $1.00
82 PS02M PHLP HD SCR M4-.7 X 12 $1.00
83 P8690083 PROTECTING COVER $1.00
84 P8690084 SPEED CONTROL LABEL $1.00
85 PSB31M CAP SCREW M8-1.25 X 25 $1.00
86 P8690086 ***USE PLABEL-14*** $0.75
87 P8690087 *discd*directional Label $0.75
072A P8690072A FUSE 3.5A $1.00
Ref # Part # Description Price Qty
