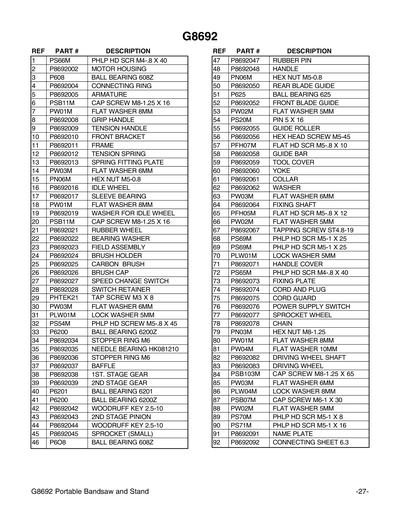

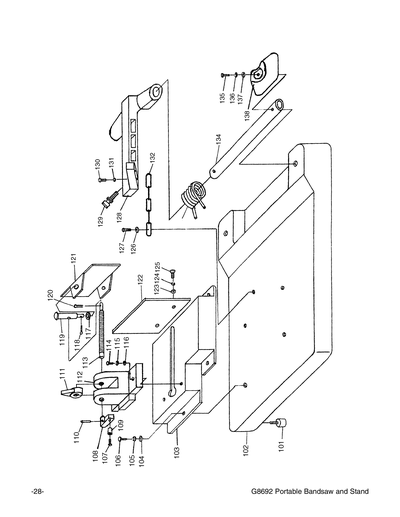

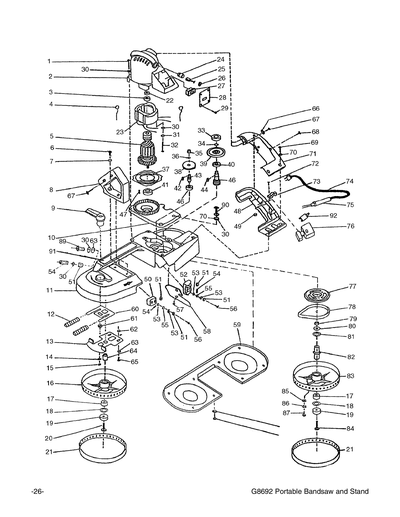

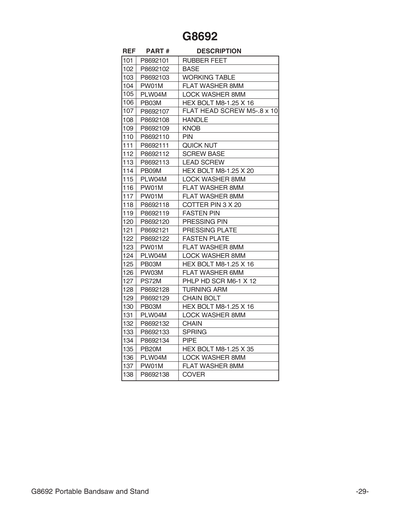

G8692 MAIN DIAGRAM


Ref #	Part #	Description	Price	Qty

1	PS66M	PHLP HD SCR M10-1.5 X 150	$1.50
2	P8692002	MOTOR HOUSING	$13.75
3	P608	BALL BEARING 608ZZ	$2.25
4	P8692004	CONNECTING RING	$1.00
5	P8692005	ARMATURE	$48.75
6	PSB11M	CAP SCREW M8-1.25 X 16	$1.00
7	PW01M	FLAT WASHER 8MM	$1.00
8	P8692008	GRIP HANDLE (2 PC SET)	$4.00
9	P8692009	TENSION HANDLE	$1.75
10	P8692010	FRONT BRACKET	$3.50
11	P8692011	FRAME	$44.75
12	P8692012	TENSION SPRING	$1.25
13	P8692013	SPRING FITTING PLATE	$1.50
14	PW03M	FLAT WASHER 6MM	$1.00
15	PN06M	HEX NUT M5-.8	$1.00
16	P8692016	IDLE WHEEL	$7.50
17	P8692017	SLEEVE BEARING	$1.00
18	PW01M	FLAT WASHER 8MM	$1.00
19	P8692019	WASHER FOR WHEEL 29 X 8 X 10	$1.50
20	PSB11M	CAP SCREW M8-1.25 X 16	$1.00
21	P8692021	RUBBER WHEEL	$1.75
22	P8692022	BEARING WASHER 24 X 22 X 1	$1.00
23	P8692023	FIELD ASSY	$24.50
24	P8692024	BRUSH HOLDER	$1.75
25	P8692025	CARBON BRUSH	$1.25
26	P8692026	BRUSH CAP	$1.00
27	P8692027	SPEED CHANGE SWITCH	$2.25
28	P8692028	SWITCH RETAINER	$1.00
30	PW03M	FLAT WASHER 6MM	$1.00
31	PLW01M	LOCK WASHER 5MM	$1.00
32	PS54M	PHLP HD SCR M5-.8 X 45	$1.00
33	P6200	BALL BEARING 6200ZZ	$2.00
34	P8692034	STOPPER RING 12	$1.00
35	P8692035	NEEDLE BEARING HK081210	$3.00
36	P8692036	STOPPER RING 6	$1.00
37	P8692037	BAFFLE	$1.00
38	P8692038	1ST STAGE GEAR	$4.00
39	P8692039	2ND STAGE GEAR	$4.50
40	P6201	BALL BEARING 6201ZZ	$5.25
41	P6200	BALL BEARING 6200ZZ	$2.00
42	P8692042	*USE P8692044*	$2.00
43	P8692043	2ND STAGE PINION	$4.50
44	P8692044	WOODRUFF KEY 2.5-10	$1.00
45	P8692045	SPROCKET (SMALL)	$4.25
47	P8692047	RUBBER PIN	$1.00
48	P8692048	HANDLE	$4.00
49	PN06M	HEX NUT M5-.8	$1.00
50	P8692050	REAR BLADE GUIDE	$2.00
51	P625	BALL BEARING 625ZZ	$1.75
52	P8692052	FRONT BLADE GUIDE	$2.25
53	PW02M	FLAT WASHER 5MM	$1.00
54	PS20M	PHLP HD SCR M5-.8 X 15	$1.00
55	P8692055	GUIDE ROLLER	$1.00
56	P8692056	HEX HEAD SCREW M5-45	$1.00
57	PFH07M	FLAT HD SCR M5-.8 X 10	$1.00
58	P8692058	GUIDE BAR	$1.50
59	P8692059	TOOL COVER	$10.00
60	P8692060	YOKE	$1.25
61	P8692061	COLLAR	$1.00
62	P8692062	*USE PW08*	$1.00
63	PW03M	FLAT WASHER 6MM	$1.00
64	P8692064	FIXING SHAFT	$1.75
65	PFH05M	FLAT HD SCR M5-.8 X 12	$1.00
66	PW02M	FLAT WASHER 5MM	$1.00
67	P8692067	TAPPING SCREW ST4.8-19 5 X 20	$1.00
70	PLW01M	LOCK WASHER 5MM	$1.00
71	P8692071	HANDLE COVER	$2.25
72	PS65M	PHLP HD SCR M4-.7 X 40	$1.00
73	P8692073	FIXING PLATE	$1.00
74	P8692074	CORD AND PLUG	$3.50
75	P8692075	CORD GUARD	$4.75
76	P8692076	POWER SUPPLY SWITCH	$3.50
77	P8692077	SPROCKET WHEEL	$3.50
78	P8692078	CHAIN	$4.75
79	PN03M	HEX NUT M8-1.25	$1.00
80	PW01M	FLAT WASHER 8MM	$1.00
81	PW04M	FLAT WASHER 10MM	$1.00
82	P8692082	DRIVING WHEEL SHAFT	$2.75
83	P8692083	DRIVING WHEEL	$8.25
84	PSB103M	*USE PSB66M*	$0.75
85	PW03M	FLAT WASHER 6MM	$1.00
86	PLW04M	LOCK WASHER 8MM	$1.00
87	PSB07M	CAP SCREW M6-1 X 30	$1.00
88	PW02M	FLAT WASHER 5MM	$1.00
89	PS70M	PHLP HD SCR M5-1 X 8	$1.00
90	PS71M	PHLP HD SCR M5-1 X 16	$1.00
91	P8692091	NAME PLATE	$1.00
92	P8692092	CONNECTING SHEET 6.3	$1.00
101	P8692101	RUBBER FEET	$1.00
102	P8692102	BASE	$23.75
103	P8692103	WORKING TABLE	$8.25
104	PW01M	FLAT WASHER 8MM	$1.00
105	PLW04M	LOCK WASHER 8MM	$1.00
106	PB03M	HEX BOLT M8-1.25 X 16	$1.00
107	P8692107	SCREW M8 X 25	$1.25
108	P8692108	TURNING GRIP	$1.00
109	P8692109	HANDLE	$1.00
110	P8692110	PIN	$1.25
111	P8692111	QUICK NUT 50 X 31 X 18	$1.00
112	P8692112	SCREW BASE	$2.25
113	P8692113	GUIDE SCREW 18 X 225	$2.00
114	PB09M	HEX BOLT M8-1.25 X 20	$1.00
115	PLW04M	LOCK WASHER 8MM	$1.00
116	PW01M	FLAT WASHER 8MM	$1.00
117	PW01M	FLAT WASHER 8MM	$1.00
118	P8692118	COTTER PIN 3 X 20	$1.00
119	P8692119	FASTEN PIN	$1.25
120	P8692120	*USE P8692118*	$0.75
121	P8692121	PRESSING PLATE	$1.50
122	P8692122	FASTEN PLATE	$1.00
123	PW01M	FLAT WASHER 8MM	$1.00
124	PLW04M	LOCK WASHER 8MM	$1.00
125	PB03M	HEX BOLT M8-1.25 X 16	$1.00
126	PW03M	FLAT WASHER 6MM	$1.00
127	PS72M	*USE PS14M*	$0.75
128	P8692128	TURNING ARM	$9.00
129	P8692129	SCREW 9 X 30	$1.00
130	PB03M	HEX BOLT M8-1.25 X 16	$1.00
131	PLW04M	LOCK WASHER 8MM	$1.00
132	P8692132	CHAIN	$1.00
133	P8692133	SPRING	$1.75
134	P8692134	TURNING SHAFT	$1.50
135	PB03M	HEX BOLT M8-1.25 X 16	$1.00
136	PLW04M	LOCK WASHER 8MM	$1.00
137	PW01M	FLAT WASHER 8MM	$1.00
138	P8692138	COVER	$1.00

Ref #	Part #	Description	Price	Qty
